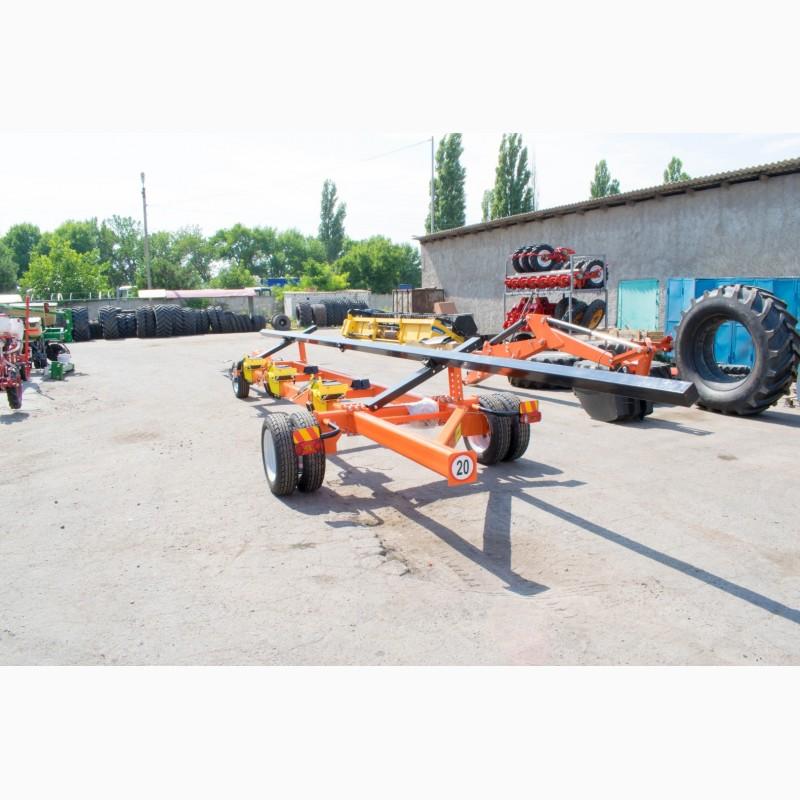

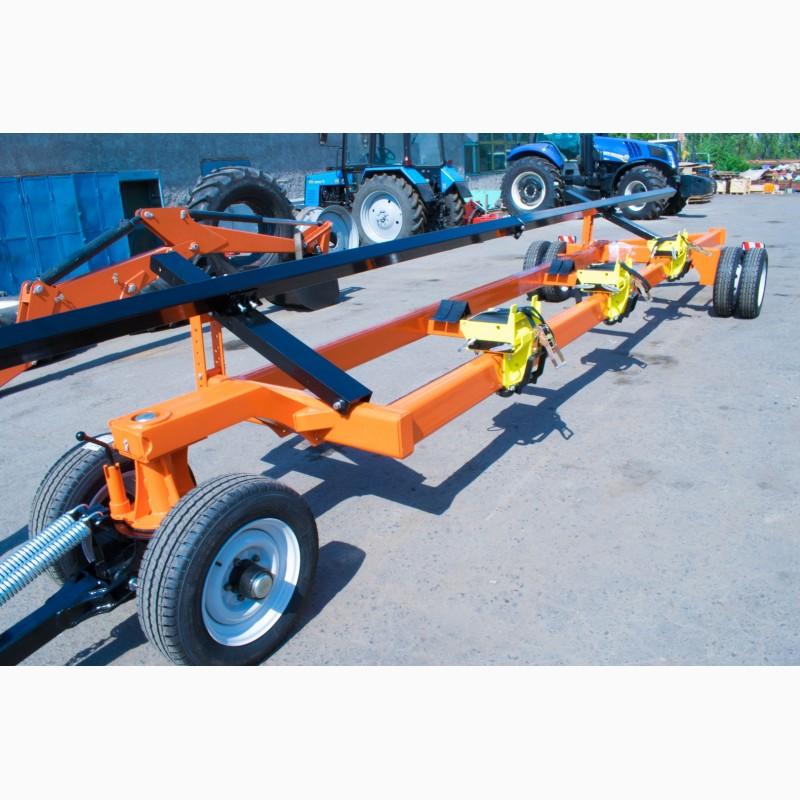

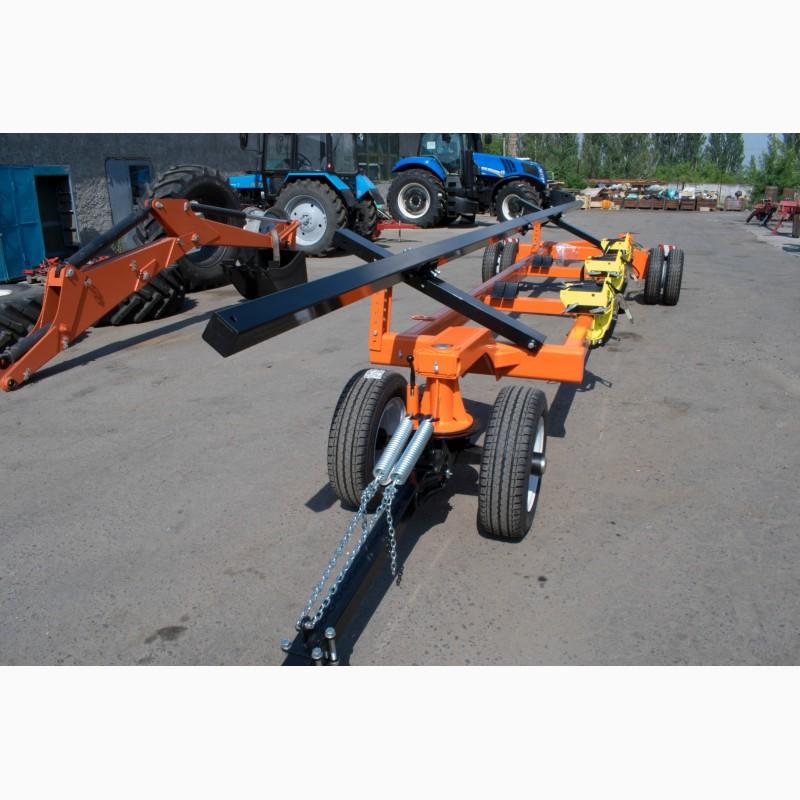

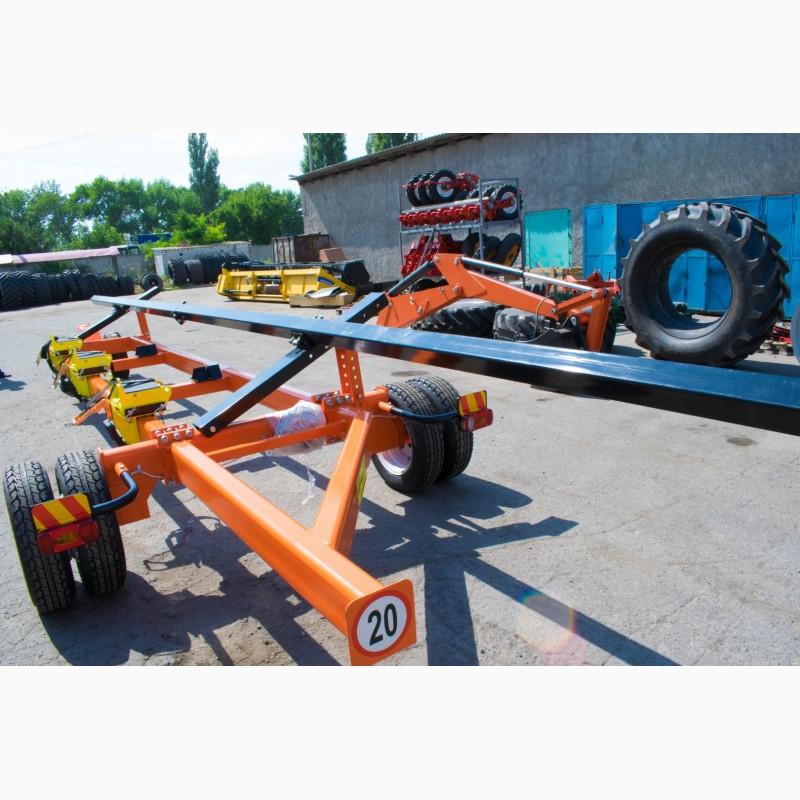

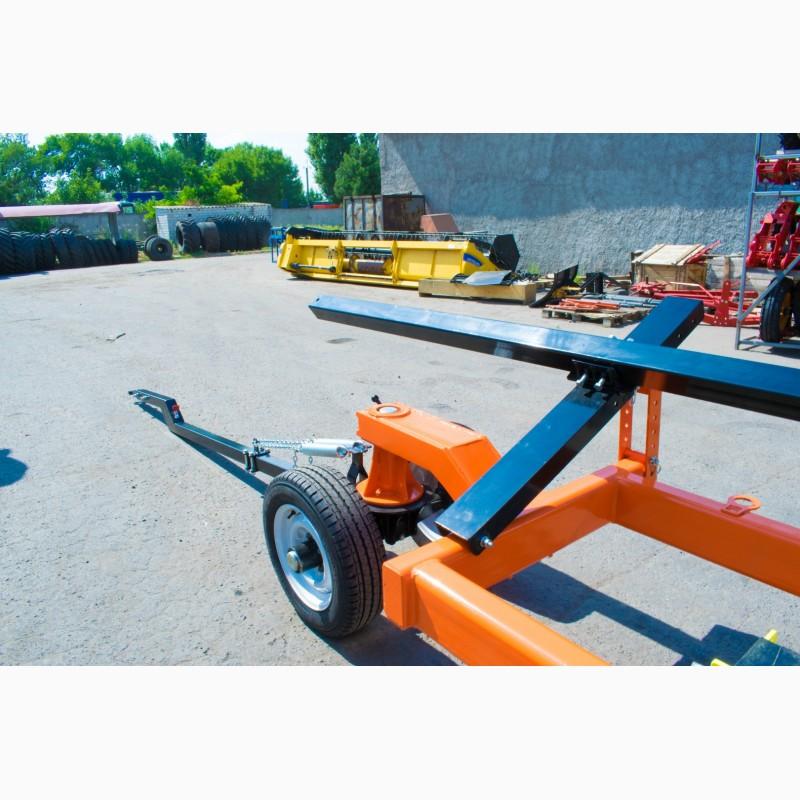

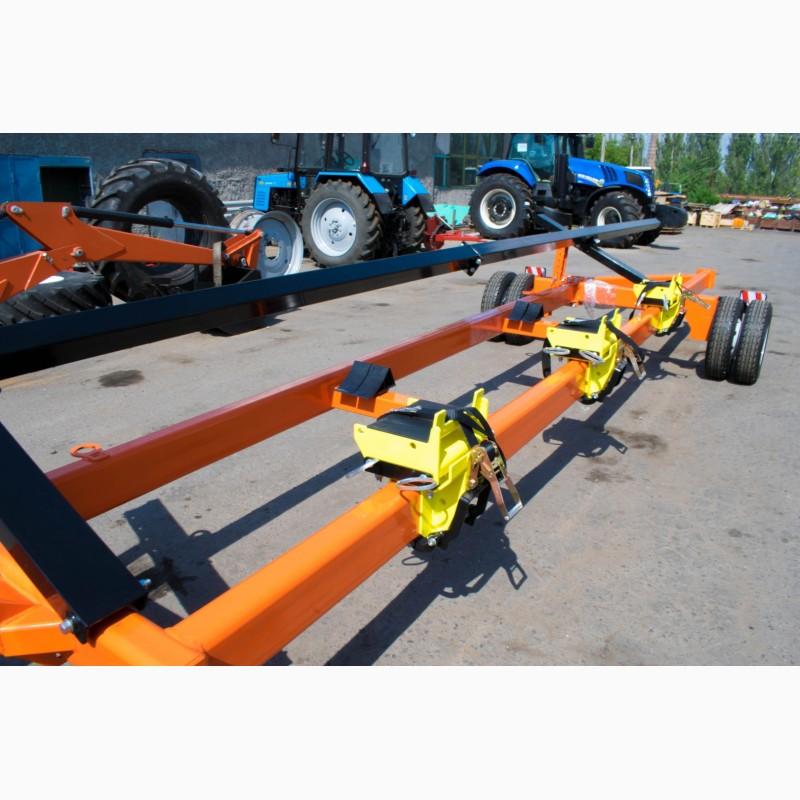

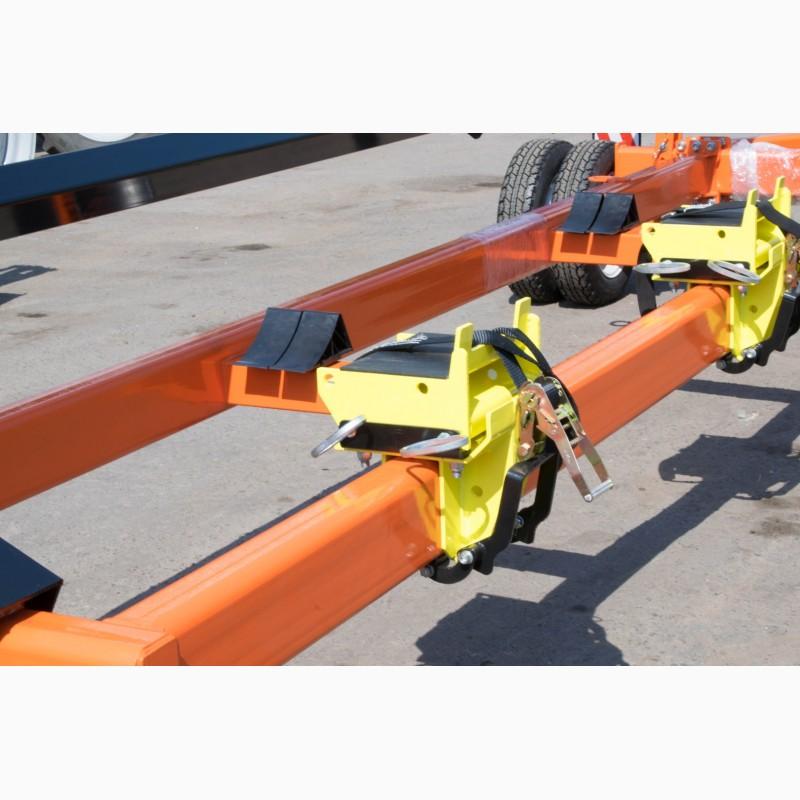

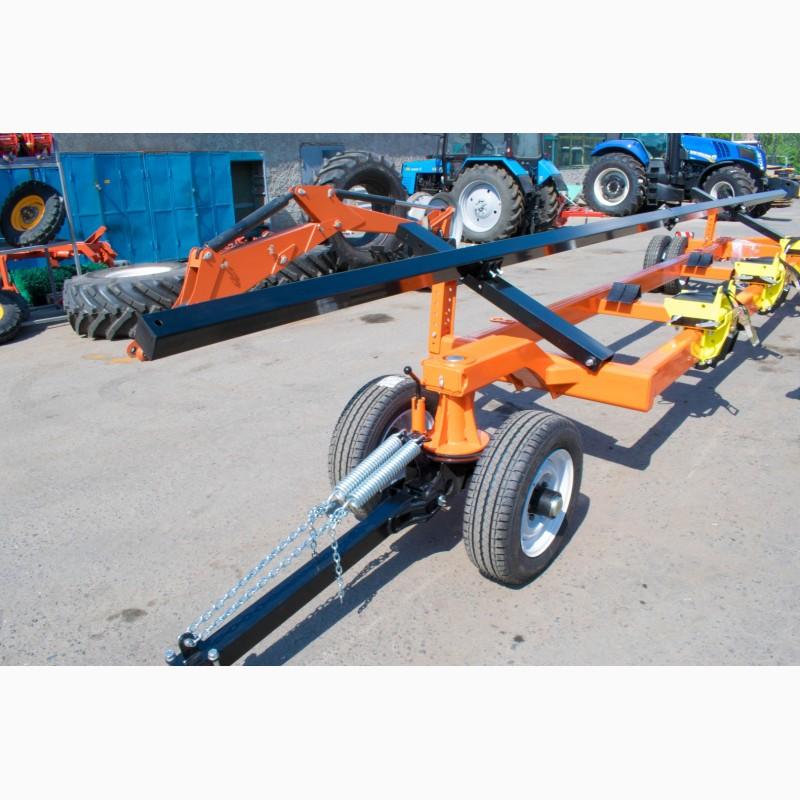

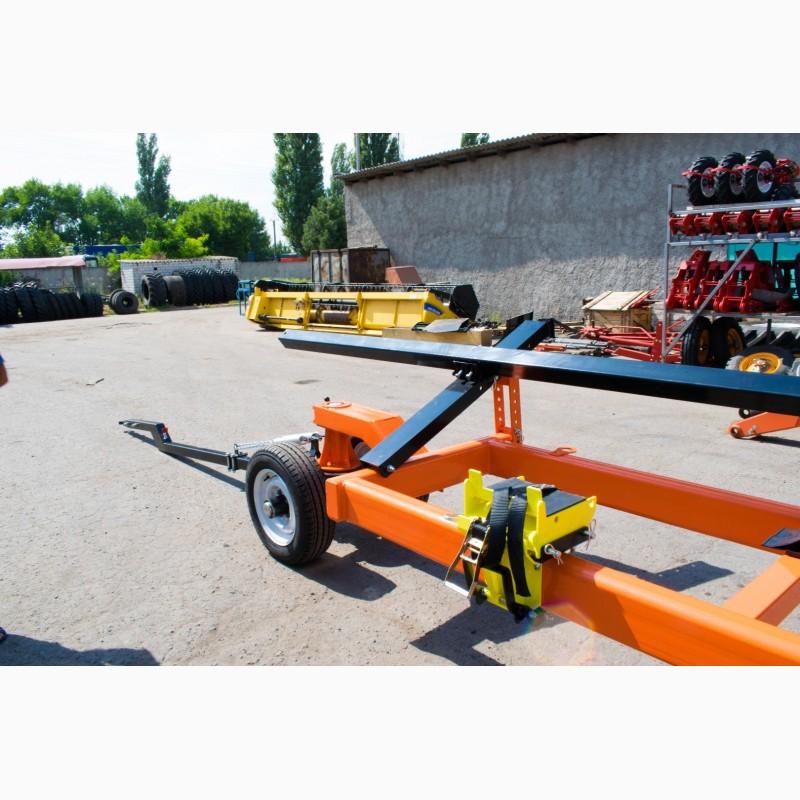

Carriage under the harvester universal Caravan-9, Kyiv region.

The trolley is used for the transportation of harvesters with a grip width from 4.5 to 9 m and a weight of no more than 3000 kg on general purpose roads, domestic and field roads.

Aggregatedcart by combine harvester or other power tool, which must be equipped with a towing device for connection to the cart. The cart can be connected to the power tool if a set of components is available for towing it.

At the same time, the cart as part of the vehicle can:

- to move forward and backward;

- to duplicate the light signals of the electrical equipment of the vehicle.

Name Unit of measurement Value
Execution
Caravan-9
1 2 3
Type Trailed, two-axle
Overall dimensions mm

– width 2400
- height 1365
length, depending on the harvesting width
– 5m

– 6m

– 7m

– 9m

12800
12800
12800(//tractor-service.com)
13800
Dry weight (structural) kg 1600
Front beam wheel disc 6Jx15 ET22
Front beam tire 195/75R15C
Rear beam wheel disc 5.5jx16H2ET105
Rear beam tire 185/75R16C
Number of wheels pcs. 4
Track (on wheel centers) mm 2020
Ground clearance, not less than mm 480
Carrying capacity, no more than 3500 kg.
Internal pressuretire kPa 450
Maximum load onwheel kg 900
Angle of transverse stability degree 30
Transport speed, no more than:
- without harvester

- with a harvester

- on steep turns and descents

km/h

25

20

5
Number of service personnel
people.

1
The term of service is 12 years
