Locks U45 for conveyor belt 7-11 mm, Odesa region.

Separable mechanical connectors U45 (similar to Barger B2, Flexco R2, MLT MS 45) for joining conveyor belts with a thickness of 7 to 11 mm without the use of a special tool. Simple and affordable jointing of the tape with the help of an ordinary hammer.

Universal mechanical detachable connectors U45 for joining conveyor belts with a thickness of 7 to 11 mm at enterprises for the production of concrete, building materials, mining of sand, clay, salt, on belt conveyors for grain transportationtransportation of grain etc.

Rivet joints of conveyor belts U-series. Connectors U45 for connecting conveyor belts with a thickness of 7 to 11 mm
They are intended for connecting conveyor belts with a strength of up to 650 N/mm, the minimum permissible diameter of the drive drum is 150 mm.
The design feature of the detachable mechanical connectors U45 is the method of connecting the mechanical hinge to the conveyor belt with the help of aluminum or stainless rivets.

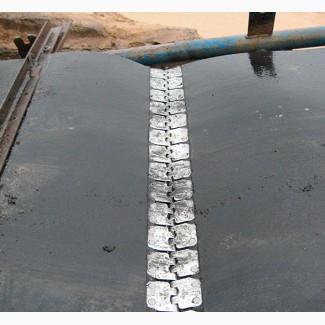

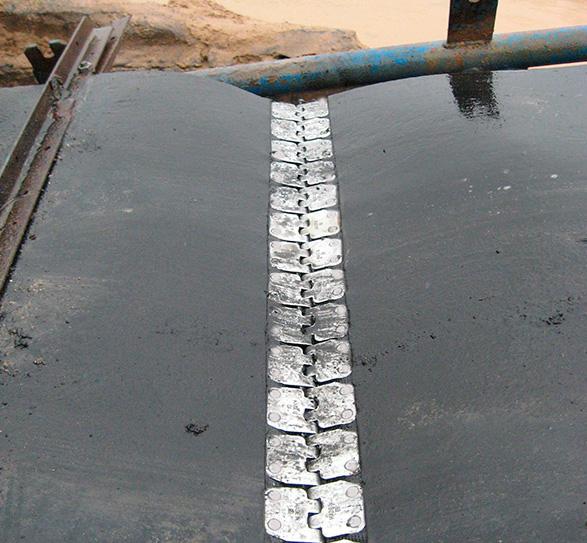

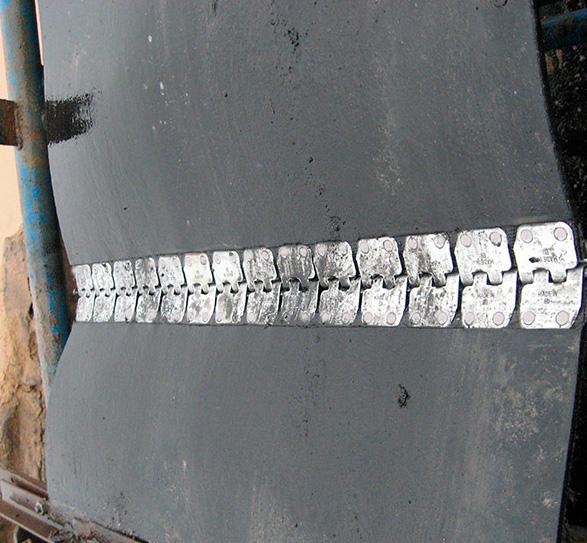

U45 connectors are installed at the end of the connecting tape with the help of an ordinary hammer, after which both parts of the joint are connected according to the "zipper lock" principle, i.e. the hinged loops of the end of the conveyor belt are placed between the loops of the second, and the K20 connecting rod is inserted inside.

The connecting rod is a piece of rope of a special design with special ends, the length of which depends on the width of the connected conveyor belt.(//tractor-service.com)

U45 connectors are supplied in a set for the width of the connected tape: 600 mm, 6 strips of 200 mm, 1000 mm, 10 strips of 200 mm, 1200 mm, 12 strips of 200 mm, and when splicing the tape, the connectors can be typed on any width of the tape.

Advantages of connectors U45

when preparing for joining the conveyor belt, layer-by-layer cutting is not required, as with hot or cold vulcanization - only a simple cutting of the tape at a right angle with the help of a square;
the flexibility of the resulting joint is the same as that of a solid tape, which does not create tension when the tape passes through the drums;
a tape of the same thickness throughout will not make it difficult to pass through cleaning devices;
disassembly and assembly of the tape cloth is simplified in any place.

Similar products of other manufacturers: Barger B2, Flexco R2, MLT MS 45. activities
