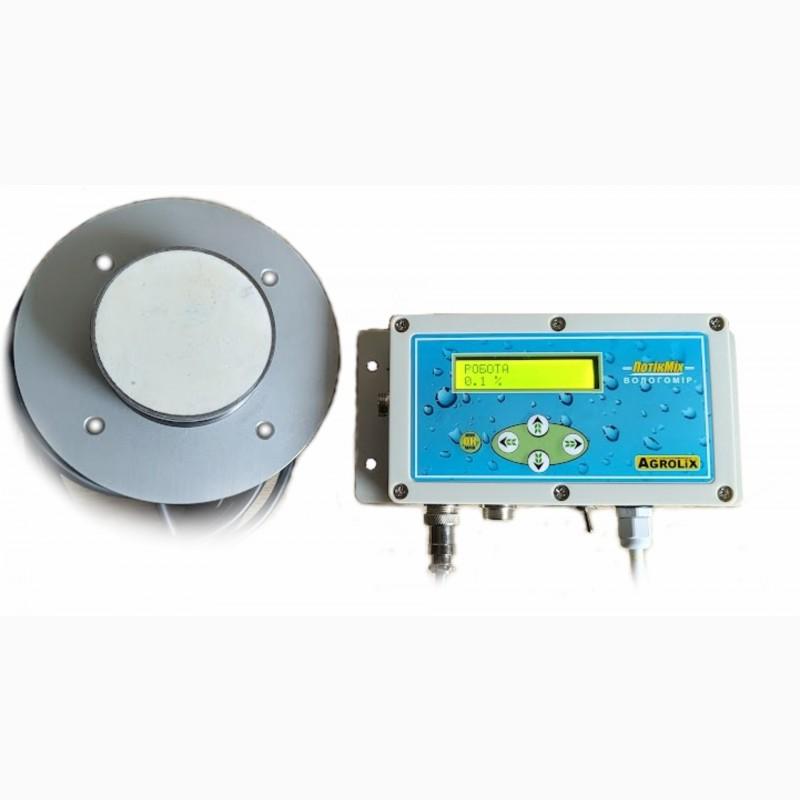

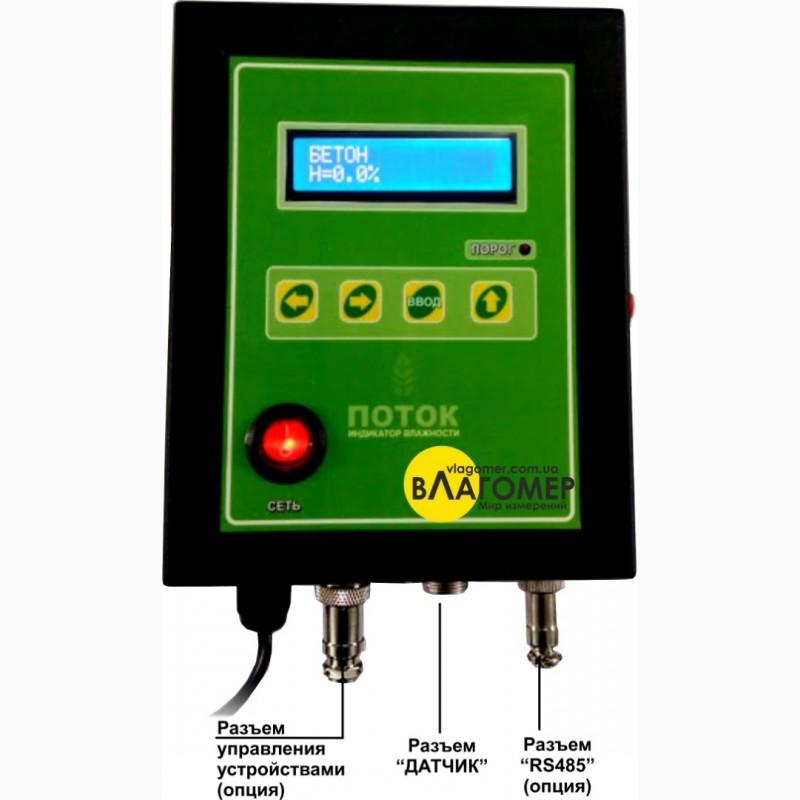

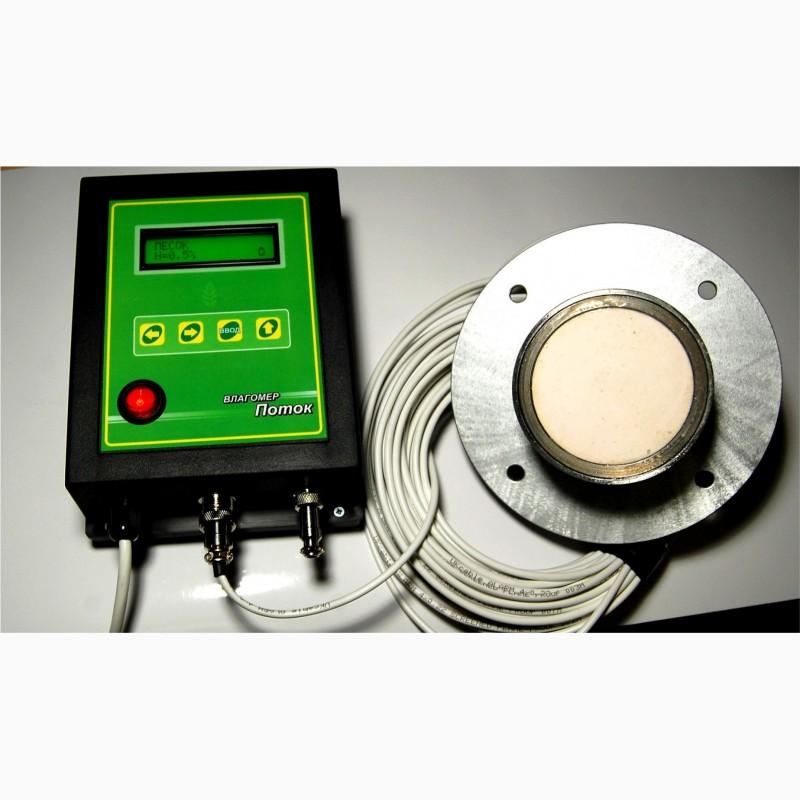

Agrolix Potok-B concrete moisture meter in mixer, bunker, Kyiv

Vlagometer Agrolix "Potok-B" is intended for measuring the humidity of concrete mixtures, cement, sand, peat and other granular and powdery products and materials in a hopper, concrete mixer, mixer, on a conveyor.
The measurement method is based on the effect of absorption of high-frequency electromagnetic energy by water molecules, when the electromagnetic wave propagates into the substance.

Technical characteristics of the sand and concrete moisture meter POTOK-B:

Humidity measurement range: from 1 to 20(90)%, depending on the material.(//tractor-service.com)
Error: ±0.5-1%
Operating temperature range: -20...+60°С
Question: from the network 220V

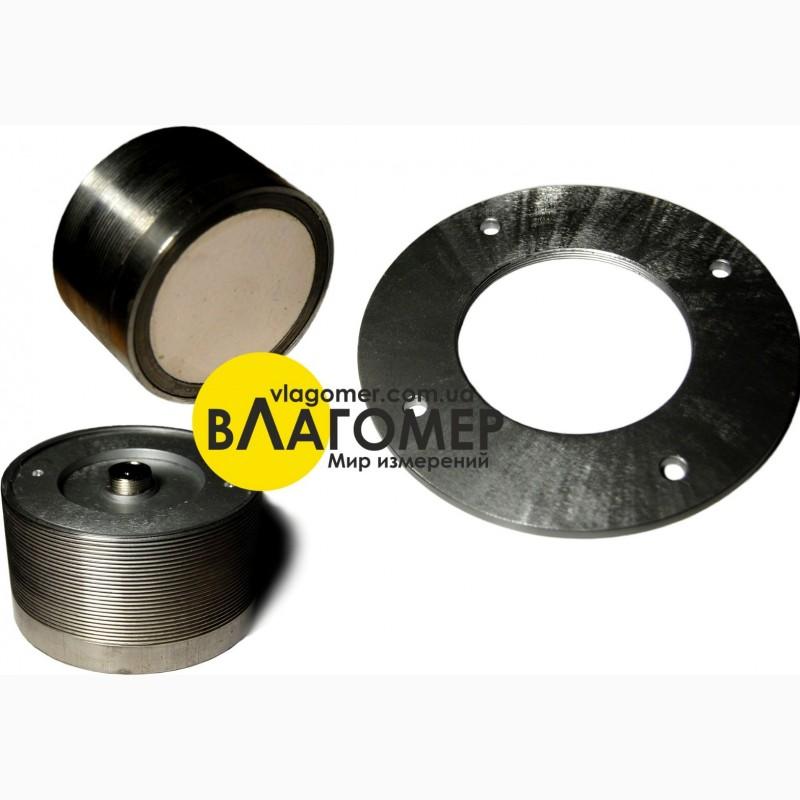

The sensor is mounted in the mixer in such a way that the surface of the ceramic plate is flush with the inner surface of the mixer. To do this, a hole the size of the sensor + 1-2 mm is cut in the wall (we recommend placing the sensor on the side surface of the mixer). The sensor is inserted on a gasket made of sealant and fastened with bolts to the wall of the mixer.

The reproducibility and accuracy of readings is determined only by changes in the density of the measured object near the surface of the sensor. A high degree of measurement accuracy is ensured at a constant density of the material.
