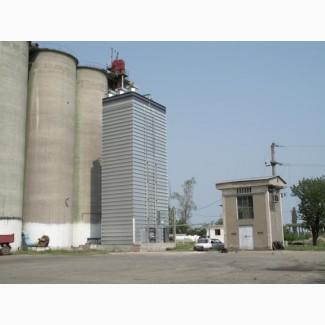

Mining grain dryer Strahl 5000 FR, Luhansk region.

Italiangrain dryers mine-type Shtral - without a doubt, the best offer on the Russian market. The highest productivity, reliability, energy saving due to the heat recovery system allowed Strahl to become the leader of the world market of stationary grain drying equipment. The main advantages of Shtral dryers are:
Energy savings of up to 30% compared to competitors. Complete thermal insulation of the column excludes the influence of low temperatures, wind and precipitation on the drying process. The dust suppression system (up to 98%) and noise suppressors are installed in the basic configuration, allowing you to use the Strahl FR in urban areas. The absolute uniformity of drying is ensured by the use of a linear gas burner across the entire width of the drying column. The air stream is supplied high above the burner, eliminating the risk of ignition. The thermal system does not allow the effect of "thermal shock" of the grain. Panels of air distribution channels are made of Aluzink material, which is 200% more resistant to corrosion and aggressive environments. Hermetic column completely prevents spillage of grain.
Technical characteristics of the mine grain dryer Strahl 5000 FR
Modules number 6
The number of sections is 27
Grain volume m³ 87.6
Capacity (at 750 kg/m³) tons 65.7
DIMENSIONS length mm 7 600
width mm 4 100
height mm 17 750
Output fans number 2
Electric power kW 18.5
Air flow m³/hour 85 640
Recirculation fans quantity 1
Electric power kW 18.5
Air flow m³/hour 46 110
Maximum heat capacity kcal/h x 1000 3 250
kW 3 780
Acoustic pressure of the dryer dB < 55
Release of dust into the atmosphere Mg/Nm3 < 20
Weight of dryer without grain kg 31000
PRODUCTIVITY:
CORN 35% - 15% Te=125°C
Output of (raw) grain t/h 14.8(//tractor-service.com)
Relative gas consumption m³/ton 23.2
CORN 28% - 14% Te=125°C
Yield of (raw) grain t/hour 20.0
Relative gas consumption m³/ton 16.2
CORN 24% - 14% Te=115°C
Output of (raw) grain t/hour 23.2
Relative gas consumption m³/ton 11.6
SOY 18% - 13% Te=85°C
Yield of (raw) grain t/hour 28.8
Relative gas consumption m³/ton 4.5
WHEAT 20% - 15% Te=90°C
Output of (raw) grain t/hour 48.8
Relative gas consumption m³/ton 4.3
SUNFLOWER 13% - 8% Te=65°C
Output of (raw) grain t/hour 20.0
Relative gas consumption m³/ton 5.1
RAPS 14% - 8% Te=80°C
Yield of (raw) grain t/hour 17.9
Relative gas consumption m³/ton 5.1

Price: 202,320 euros.
The warranty period is 12 months
Delivery time: in stock
Delivery: via CIS
