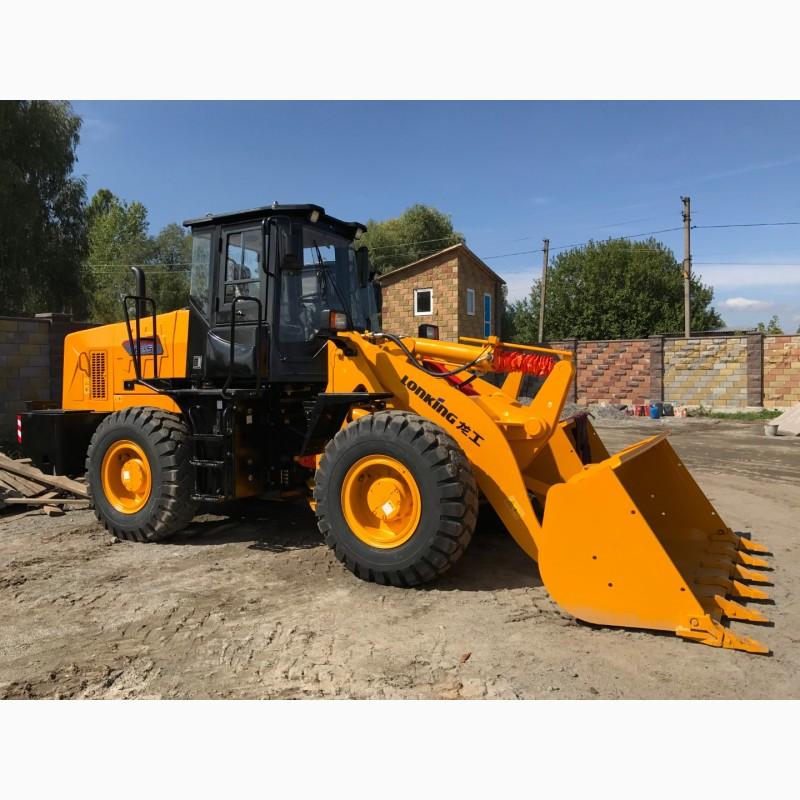

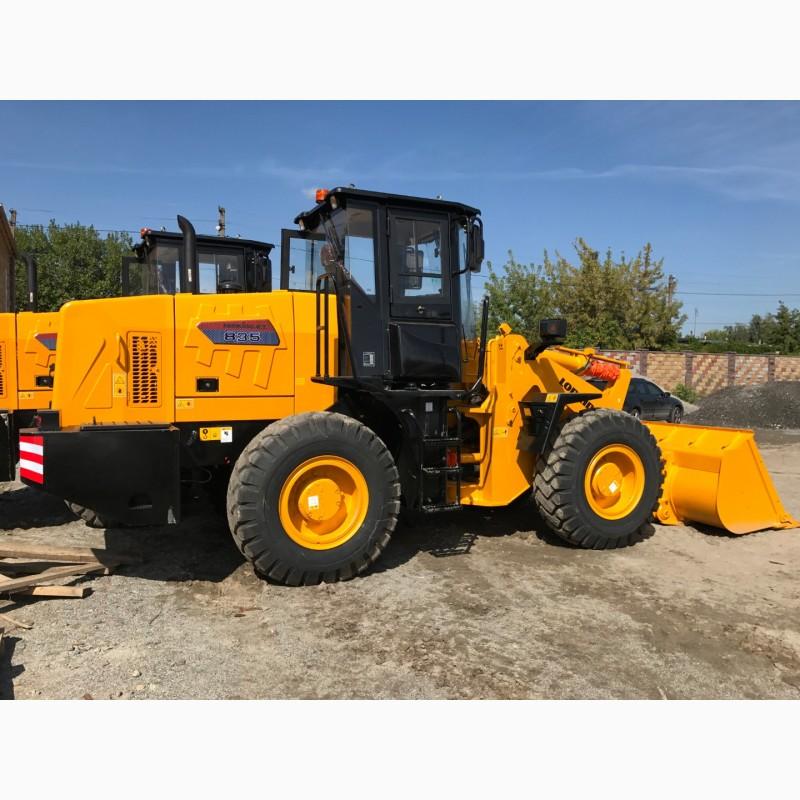

Front loader LONKING CDM 835, Kyiv

Official dealer
Warranty 1 hour or 2000 hours
Installment payment
Leasing

Available in Kyiv
Brand LONKING
Model CDM 835
Frontal typeloader
Release year 2018
Load capacity 3500 kg
Own weight 11620 kg

No. Описание Единица Размеры
A Total bucket lifting height mm 4790
B The height of the maximum lift of the bucket finger mm 3710
C Clearance of the maximum lifting of the reset (45°) mm 2806
D Range of maximum lifting and 45° reset mm 1170(//tractor-service.com)
E Rear corner of the Rack during transmission ° 47
F Rear corner of the rack on the ground ° 44
G Digging depth mm 30-40
H The back angle of the maximum lifting of the rack ° 55
I The angle of the maximum discharge lift ° 45
J Transmission height mm 400
K Ground clearance mm 347
L The central line of the center axis to the hook mm 1425
M The central line of the pitch axis to the hook mm 2850
N Total length mm 7520
O Departure angle ° 27
P Height to the cabin roof mm 3180
Q Total width above the bucket mm 2500
R Minimum rotating radius above the bucket mm 6240
S Minimum turning radius over the tire mm 5680
T Right/left turning angle ° 35
U Width of the tread center mm 1850
V Total width overtyres mm 2320
