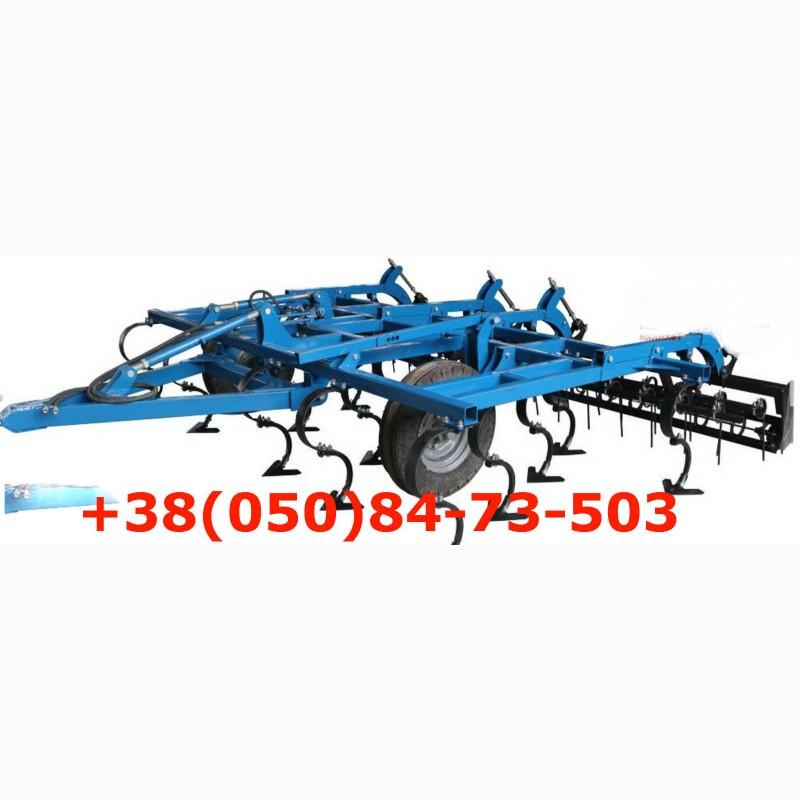

Trailed pre-sowing cultivator kppo, (KPPO-4) with roller and spring, Nikolaevskaya region.

Trailed cultivator pre-seeded cultivated kppo, (KPPO-4) Cultivatorpre-seeded cultivator cultivated KPPO-4

The main purpose of the pre-sowing tillage cultivator is the main and pre-sowing cultivation of the soil with a moderate amount of plant residues.
One pass of the cultivator provides:

grinding and mixing plant residues with soil

100% destruction of weeds

continuous cultivation to a strictly specified depth.

leveling the soil, breaking up lumps and combing out the cut weeds with spring teeth, crushing, leveling and compacting the soil with ribbed rollers;(//tractor-service.com)

Type of Machine Semi-trailer
The construction width is 4 m.
Working speed 8 - 12 km/h.
Productivity3.2 Ha./h
Processing depth 5-14 cm.
Aggregation with tractors of traction class 1.4 KN (not less)
The required power is 80 HP
Number of working bodies - spring tooth36
Transport clearance 300 mm. (no less)
Length in working position 4.5 m.
Height in working position 1.1 m
Weight.1150 kg.
