Dvigatel gasoline WEIMA WM190F-S 16 hp (HONDA GX420) Shponka, Nikolaev region.

The engine is adapted mainly to agricultural machinery, or to any other industrial machinery, snowmobiles, pumps, wood cuttersдровоколы, maps, etc.

There is a model line of diesel and gasoline engines Centaur, Veima, Sadko.

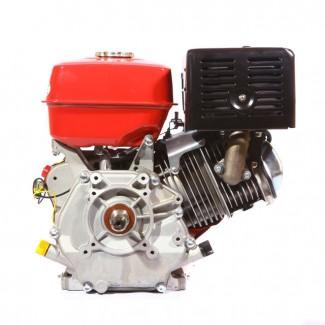

WEIMA WM190F-S gasoline engine (16 hp with keyed shaft) is widely used on small agricultural machinery (motoblocks, minitractors), compressors,motopumps, current generators. The direction of rotation of the shaft is counterclockwise when viewed from the side of the shaft. Engine cooling is forced air. The upper position of the valves is OHV. It is a complete analogue of the Japanese Honda GX-420 engine.
WEIMA engines have proven themselves to be reliable, durable and unpretentious in operation. The engine meets world quality standards, has high-quality assembly, reliable and durable working units. With compact dimensions and a small weight of 35 kg, the maximum engine power is 16 hp. and is characterized by a low fuel consumption of no more than 355 g per 1 kW*h. For easy starting, the engine is equipped with an electric starter. The engine has an automatic engine speed regulator depending on load changes.
The WEIMA WM190FE-S engine has low oil level protection (a discrete oil level sensor is installed). If the oil level is low, the engine will not start. The oil level should be up to the filler neck. The volume of the oil sump is 1.6 liters. The low level of noise and vibration makes working with the WEIMA WM190FE-S comfortable and tireless.

CHARACTERISTICS
BASIC
Manufacturer Weima
Country of manufacture China
Warranty period 12 (months)
ADDITIONAL CHARACTERISTICS
Output shaft: key type
Engine type: four-stroke with overhead valve arrangement (OHV)(//tractor-service.com)
Maximum power: 16 hp/3600 rpm. (11.7 kW)
Cylinder volume: 420 cm3
Cylinder diameter: 90 mm
Piston stroke: 66 mm
Cooling: active air
Maximum torque: 29 Nm/2500 rpm.
Fuel consumption: 335 g/kW*h
Recommended oil: SAE 10W30
Fuel type: Ai-92
Fuel tank volume: 5.6 l
Oil volume in the engine crankcase: 1.6 l
Starting system: manual starter
Ignition: transistor magneto
Direction of rotation of the crankshaft: counterclockwise
Dimensions l/w/h: 490/460/520 mm
Weight: 35 kg.
