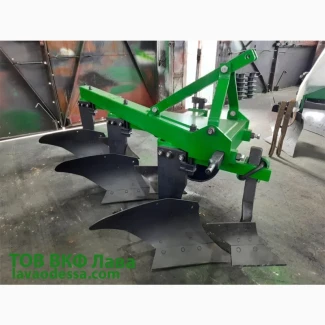

Plow PNB 3-35P-01 with a front plow on high flat racks, with a reinforced frame, Odesa region.

Hinged furrow plow with front plow (with reinforced frame)PNB-3-35P-01 is intended for plowing soils for grain and industrial crops to a depth of up to 30 cm.
The plow is used in all soil and climatic zones, except for soil clogged with stones, slates and other obstacles, with a specific resistance of the soil of 0.9 kgf / cm2 (0.09 MPa) and hardness up to 35 kgf / cm2 (3.5 MPa) and humidity up to 27%.
The plow is aggregated with tractors with a capacity of 80-100 hp. (MTZ 80/82, MTZ 1025),right wheels which are in the furrow during operation.

Technical characteristics:
1. The width of the plow is 1.05 m
2. Plowing depth - 20-30 cm
3. The distance from the support plane of the housing to the lower plane of the frame is 720 mm.
4. Mass - 452±15
5. The working speed of movement during the main operations is 7-9 km/h.
6. Transport speed, no more than 15 km/h.
7. Cover width - 350 mm
8. The width of the front plow - 230 mm
9. Productivity in 1 hour. - 0.735-0.945 ha/h
Overall dimensions, mm:(//tractor-service.com)
length -2650±100
width - 1350±50
height - 1400±50

Benefits:
1. The front plow, installed in front of each plow body, serves to cut the top layer of the soil and wrap plant remains to a depth of up to 12 cm.
2. The plows are equipped with reinforced semi-screw blades for more efficient circulation of the layer, the field plowed with such a plow has a well loosened, even surface.
3. A strong and reinforced frame is used.
4. Plows are equipped with high body racks (10 cm higher than standard)

Announcement from the manufacturer's company.
Any form of payment (cash, non-cash, postpaid).
Shipping across Ukraine is carried out by any courier service.
Self-delivery is possible.
Questions can be asked at the indicated phone number.
