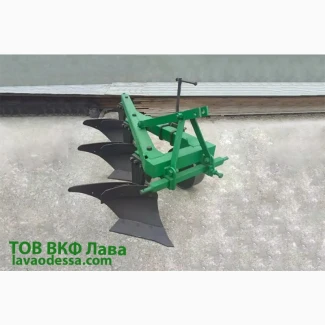

PLN 3-35А plow with corner cutter, semi-screw dump. Odessa plant, Odesa region.

Hinged plowPLN-3-35A (with corner cutter) is intended for plowing soils for grain and technical crops to a depth of up to 30 cm.
The plow is used in all soil and climatic zones, excluding soils clogged with stones, slates and other obstacles, with a specific soil resistance of 0.9 kgf/cm.2 (0.09 MPa) and a hardness of up to 35 kgf/cm2 (3.5 MPa) and moisture content of up to 27%.
To prevent the plow from jamming in fields with a large amount of plant residues, the plow is equipped with corner cutters instead of front plows.
The plow is aggregated with 80-100 hp tractors. (MTZ 80/82, MTZ 1025),right wheels which are in the furrow during operation.

Technical characteristics:
1. The width of the plow is 1.05 m.
2. Plowing depth - 20-30 cm
3. The distance from the support plane of the housing to the lower plane of the frame is 620 mm.
4. Mass - 430 kg
5. The working speed of the main operations - 7-9 km/h.
6. Transport speed, no more than - 15 km/h
7. Cover width - 350 mm.
8. Productivity in 1 hour. - 0.735-0.945 ha/h
Overall dimensions, mm:(//tractor-service.com)
length - 2550±100
width - 1350±50
height - 1300±50

Benefits:
1. Absence of technological downtime due to reduction of plow jamming - installation of corner cutters instead of front plows while maintaining plowing quality.
2. Reinforced semi-screw dumpers are installed on the plows for more effective formation turnover.
3. The plow axle is made of a 50x50 mm square
4. Visibility, simplicity and ease of adjustment.

Announcement from the manufacturer's company.
Any form of payment (cash, non-cash, postpaid).
Shipping across Ukraine is carried out by any courier service.
Self-delivery is possible.
Questions can be asked at the indicated phone number.
