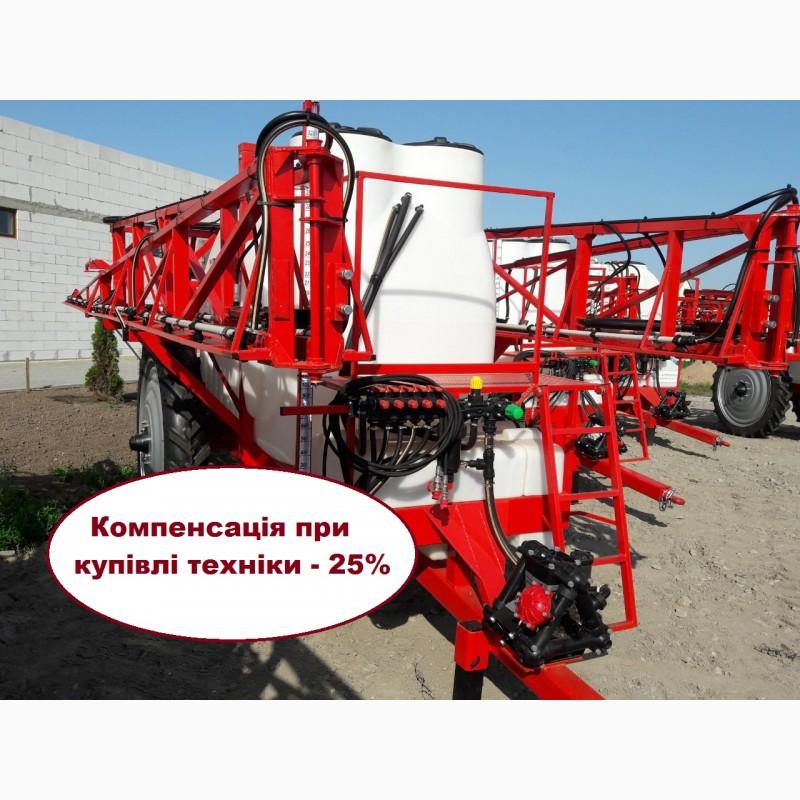

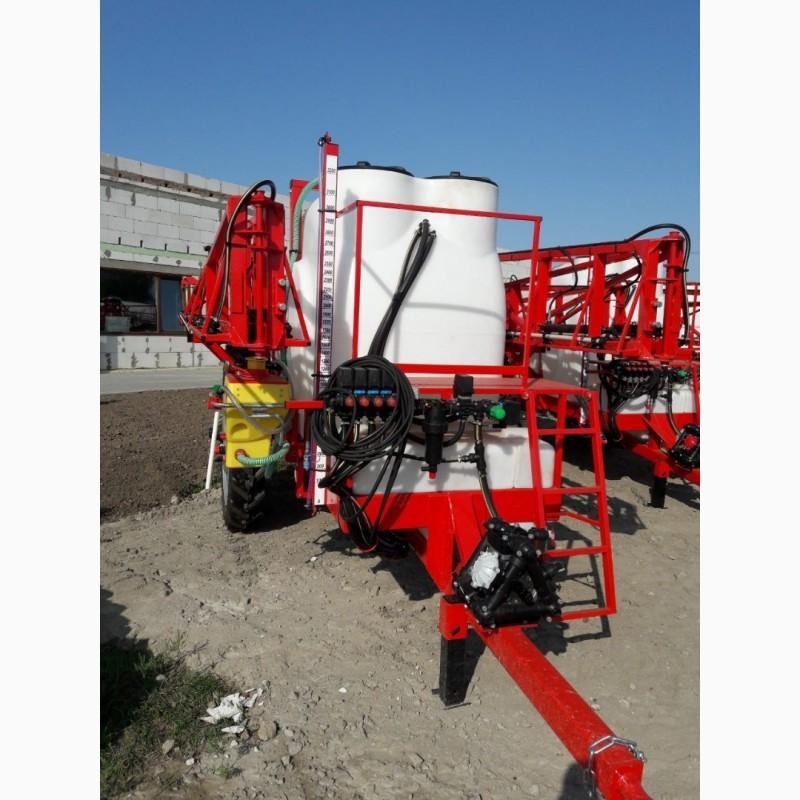

Sprayer 3000 l (hydraulic wings) 18 m (automatic control system) - COMPENSATION - 25%, Kyiv region.

Sprayer 3000 l (wings hydroficated) 18, 21, 24 m

Trailed sprayers manufactured by PP "Agrotechnika" Glevakha, Kyiv region. (Ukraine)

According to the updated list of domestic machinery and equipment for the agro-industrial complex, the cost of which is partially compensated at the expense of the state budget, approved by protocol No. 6 of the meeting of the commission on the formation of the list of domestic machinery and equipment for the agro-industrial complex, the cost of which is partially compensated at the expense of the state budget from 11.22.2018, the equipment produced by PE "Agrotechnika" is subject to partial state compensation in the amount of 25% and additional 15% for small farms.

The compensation program of 25% (and 40% for small farms) of the cost of domestic agricultural machinery purchased in 2018 was approved by CMU RESOLUTIONS No. 130, No. 86 and No. 106.

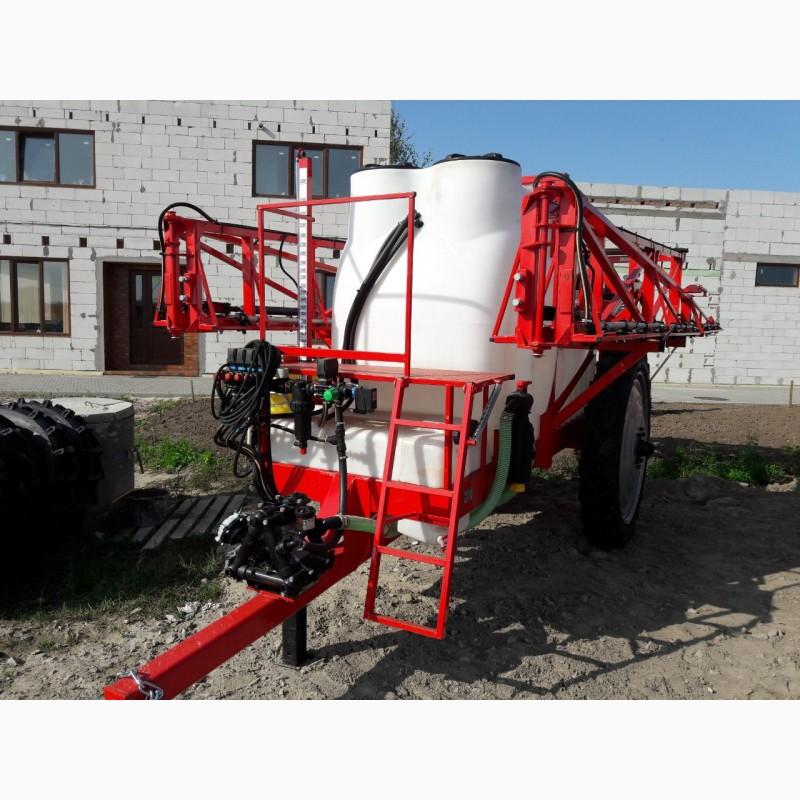

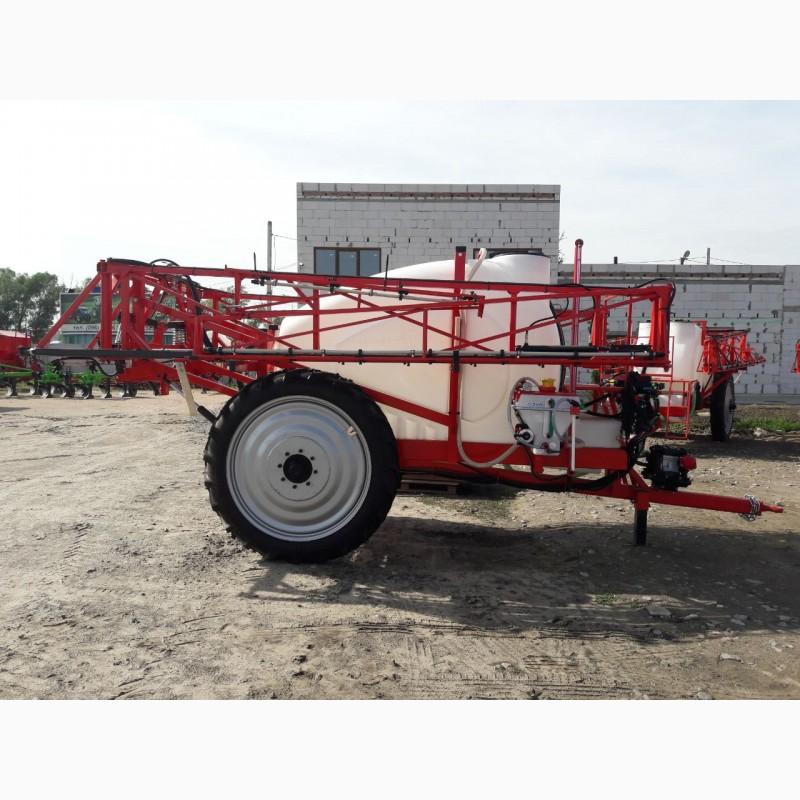

Sprayers of the OSHSH series are produced with a tank capacity of 3,000 l and boom width of 18 m, 21 m, 24 m.

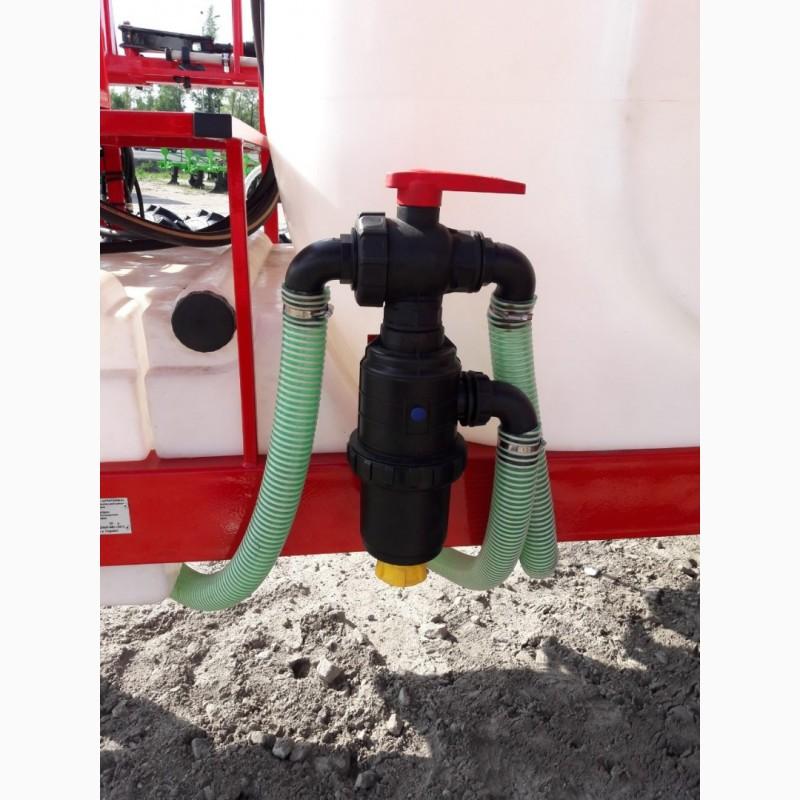

All sprayers are equipped with Italian equipment from Arag, Lechler, Imovilli pompe (control panel, nozzles, hoses, filters,pump).
They are delivered in an assembled state complete with a cardan shaft.

Technical characteristics:
Productivity in 1 hour of prime time - 19.2 - 28.8 ha/year;
The capacity of the tank is 3000 l;
Working width of capture – 18, 21, 24 m ;
The flow rate of the working fluid is regulated within - 70 - 400 l/a
Working speed - 8 - 12 km/h ;

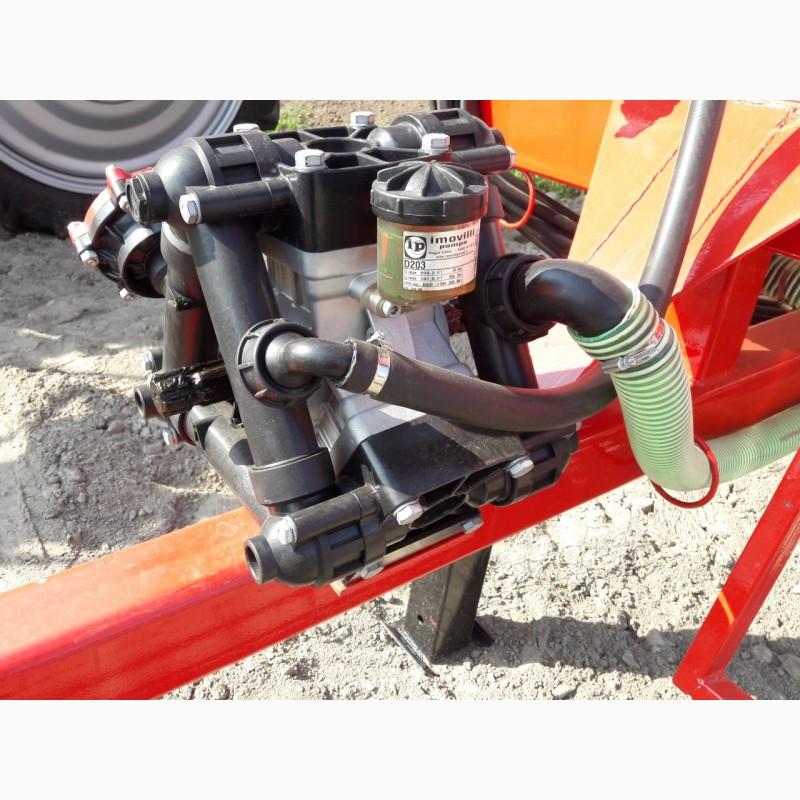

Supplypump – from 160 to 250 l/min;
Working pressure - 1.5 - 8.0 atm ;
The height of the location of the sprinklers from the surface of the earth is adjustable within - 0.5 - 1.8 m;
Ground clearance - 0.75 m (tyres 9.5 r 42)

The tank of the sprayer has a convex shape for complete emptying of the liquid with stable operation of the pump, a partition is placed in the middle of the tank for the strength and reliability of the tank.(//tractor-service.com)

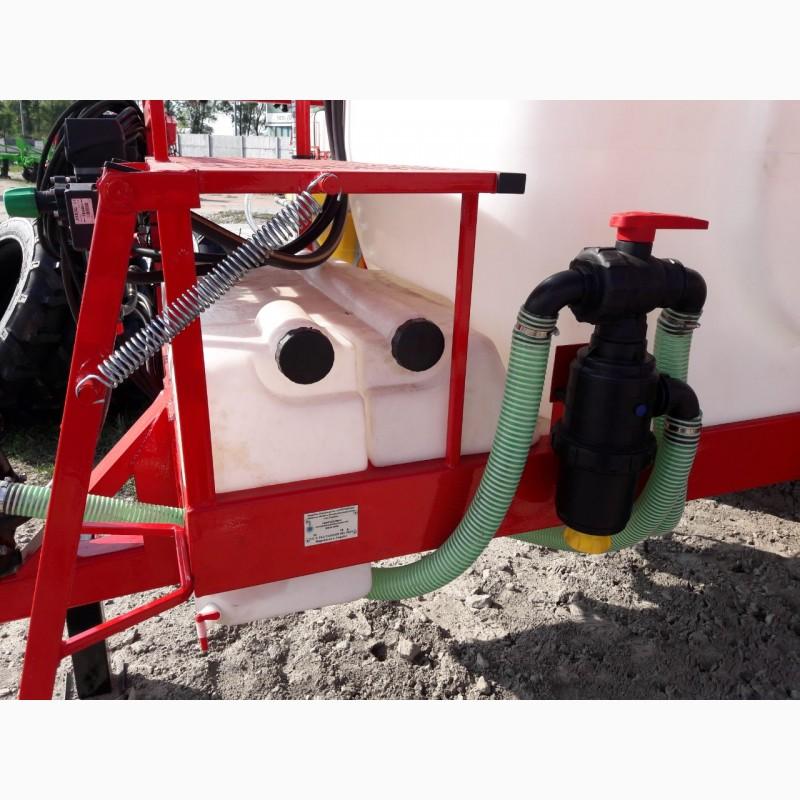

All tanks have containers for flushing the system, a self-priming mechanism.

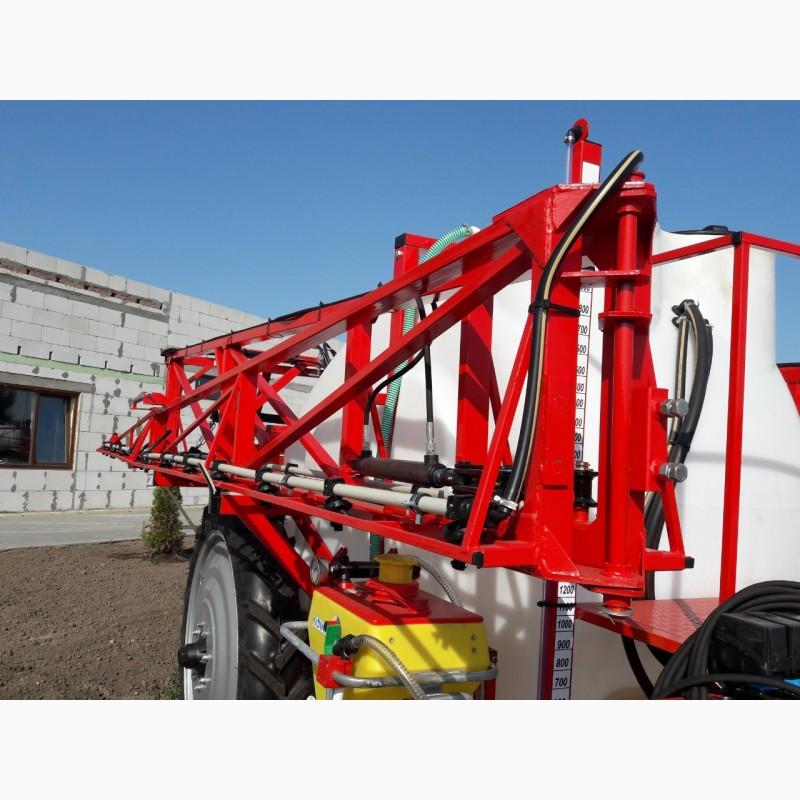

The sprayer rod is designed and patented by the manufacturer, completely
hydraulic (parallelogram mechanism) with a vertical frame, a stabilization mechanism, support brackets. The lifting height is up to 1.8 m, the lowering is up to 0.5 m. The boom has an efficient suspension mechanism, in which the oscillations of the sprayer in the vertical plane are transferred to the oscillations of the boom in the horizontal plane, thanks to which high uniformity of processing and high reliability of boom operation are ensured.
The volume sprayer boom, raising and lowering, folding and unfolding is carried out using the hydraulic system from the tractor cabin. Fixation of the position of the rod in the unfolded state is carried out with the help of hydraulic locks.
Plates made of a material with an ultra-low coefficient of friction are installed on the rod in places where it may be worn.

The term of production of sprayers is up to 10 working days from the moment of preliminary payment of 10%
All sprayers can be equipped with additional equipment at the request of the client.
By the Bravo-180S computer (the main function is control of spillage regardless of the speed of movement):
Bravo-400S computer (section-by-section disconnection of booms, wrapped navigation system)
Mixer:
- tank 28 l – (Ukraine)
- tank 25 l –(Italy)
- tank 35 l – (Italy)
Promopore
Bar lighting
Foot dimensions.

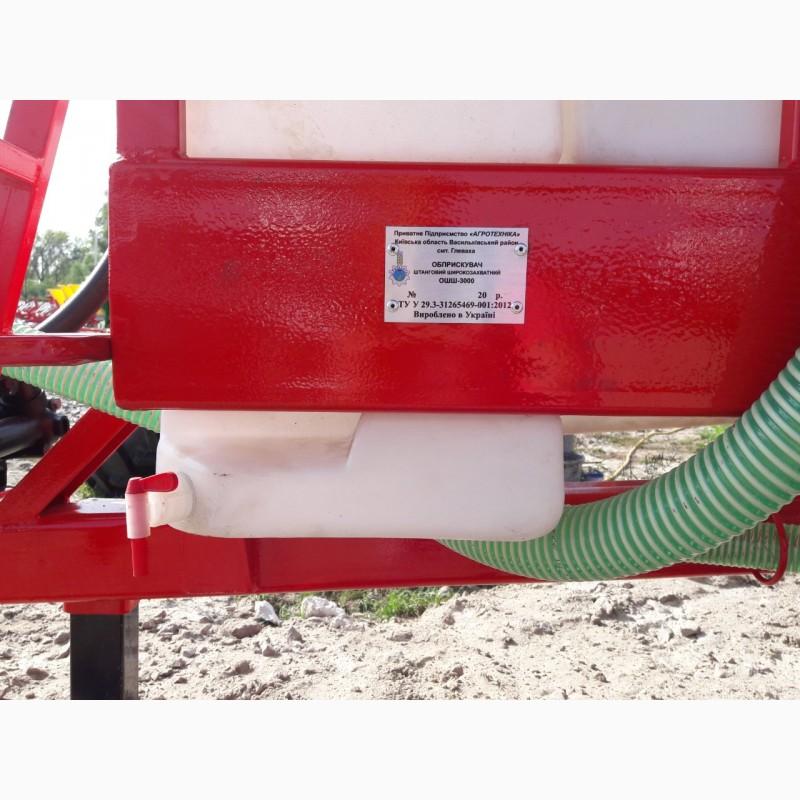

A set of containers for flushing the system (the Italian container is already included)
Tank flushing
Stainless pipes to replace PPR pipes (surcharge)
3-position nozzles with nozzles ST, IDK, KAS (made in Italy, nozzles by Lechler)
Nozzle 3-position POLSKA with nozzles ST, ST-С, KAS: (with 7 holes)
They are located on the Great Market Square on the Kyiv-Odesa highway in the village of Hlevakha str. Okruzhna, 55-D
in stock, self-pickup, delivery by our transport - 35 hryvnias. per km (one-way calculation)
