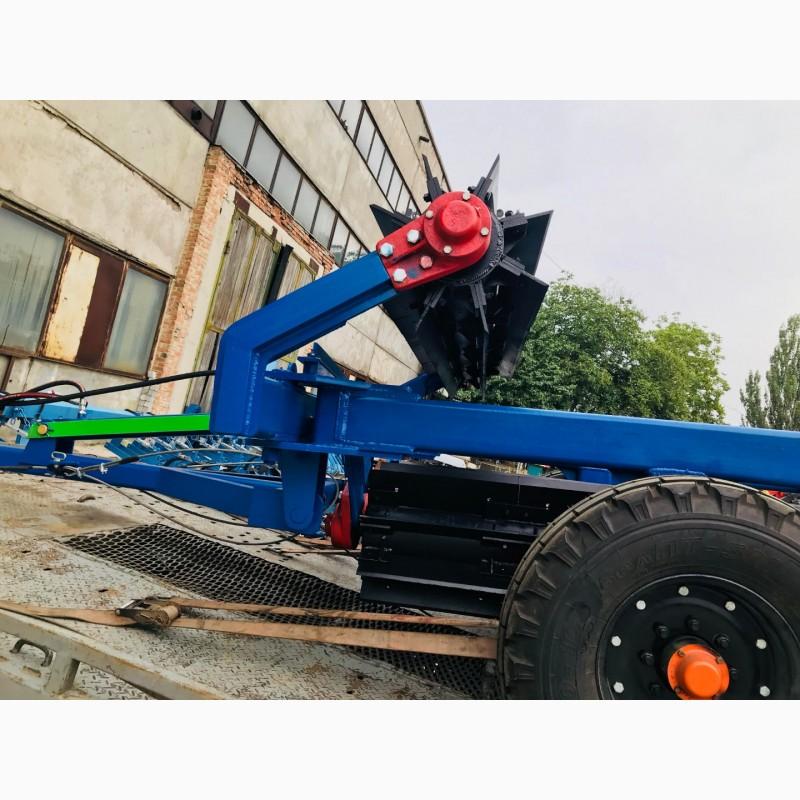

Katok water-injected water-jet cutting KR-6P-01 intended for grinding plant residues
after sunflowers, corn, stubble, leveling and partial mulching of the field surface. Working width of 6 m, weight without water/with water - 1770/1890 kg, aggregated with class 1.4 tractors. Grinding plant residues and partial mulching of the soil delays moisture evaporation, regulates temperature of the surface layer, inhibits the growth of weeds, protects against weathering, enriches the soil with organic matter.
Technical characteristics KR-6P KR-6P-01
Gripping width, mm 6000
Productivity, ha/h 4.8...7.2
Working speed, km/h up to 12
Transport speed, km/h up to 20

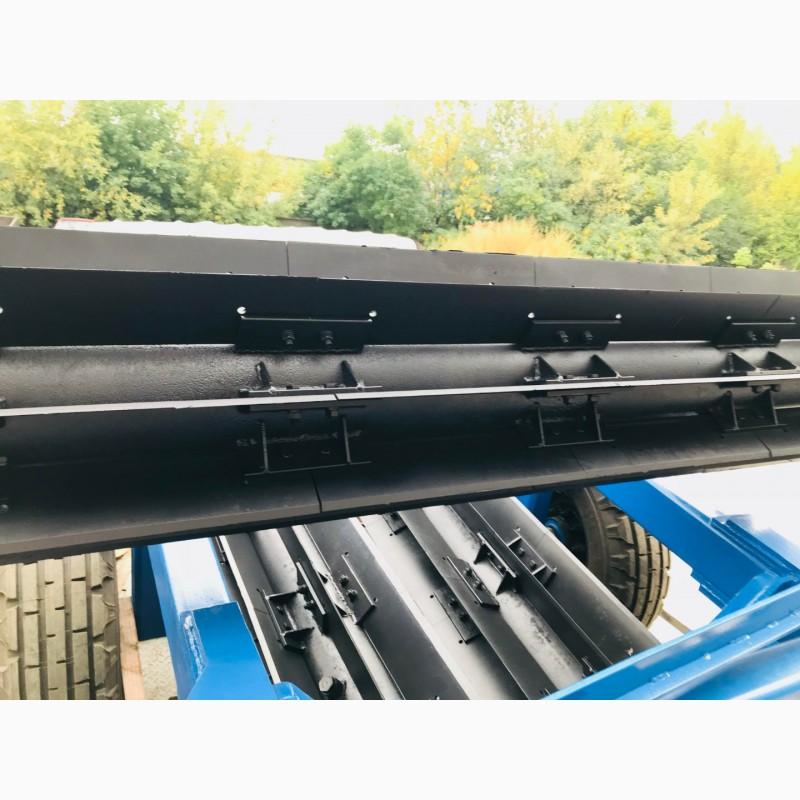

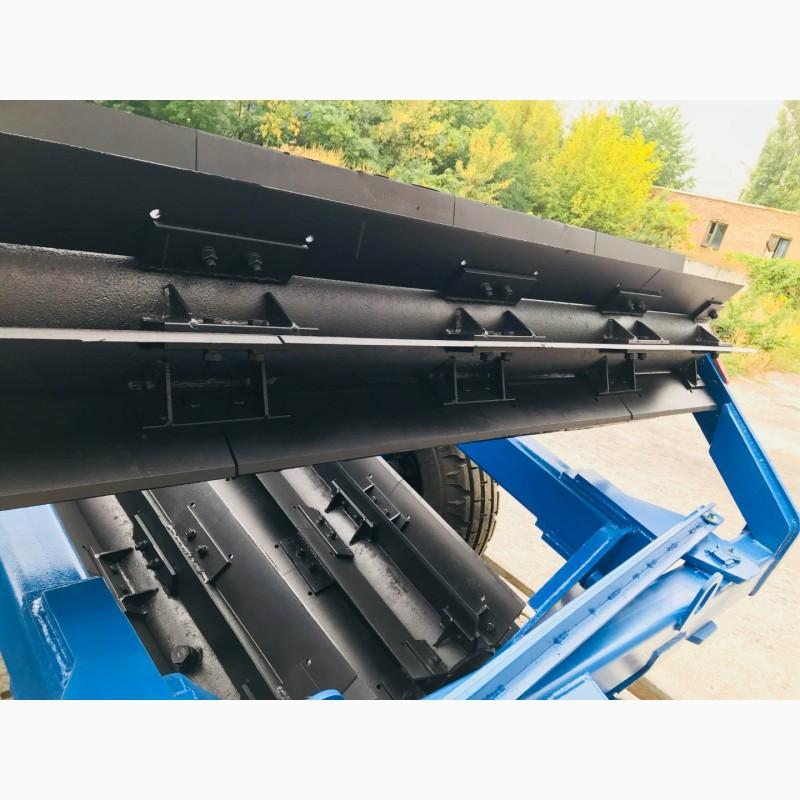

Roller with knives, mm Ø460 (steel 65G)
Shaft diameter, mm 60
(//tractor-service.com)
Mass, kg 1770/1890
Power
tractor (no less), hp. 80
Габаритные размеры
in transport position in working position
Length, mm 4930 3580
Width, mm 2290 6240
Height, mm 1690 1025
The KR-6P water-filled hydraulic cutting roller is intended for grinding plant residues after sunflower, corn, stubble, leveling and partial mulching of the field surface.
The working width of the catch is 6 m, weight without water/with water - 1770/1890 kg, aggregated with tractors of class 1.4.
Grinding plant residues and partial mulching of the soil delays the evaporation of moisture, regulates the temperature of the surface layer, inhibits the growth of weeds, protects against weathering, and enriches the soil with organic matter.
