= Sprayer hinged op-1000 l Stang 16 m, Kiev region

sprayer hinged op-1000 l bar 16 m

The sprayer is the OSH series (K) - 1000 l, the bar 14 or 16 m of the enhanced structure, with a system for washing system, the nozzles are mounted on the collector. Cardan shaft is included in the cost of the sprayer
Characteristics:
Manufacturer - Ukraine, firm PE "Agrotechnika" Kyiv region, smt. Glevakha
Tank - 1000 l, with a tank for washing of the system per 100 l and a handsome man for 25 l
pump P -100 with a passage capacity - 120 l/min, Polish manufacturer of Agroplast ||= The nozzle is one-time with the side from the sicacter, mounted on the collector system (- it is a dry-resistant and highly pressure gas PPR Pipe D.25)
Форсунка однопозиційна з боковим від сікачем, встановлена на колекторну систему (- це хімстійка та високо напірна газова ППР труба д.25)
Розпилювач плоско струменевий (щільовий) – АР-120-03 синього кольору, на 200 л/га, кут розпилу 120º
= Aggregated with the MTZ tractor - 80 hp
Guarantee for sprayer and equipment - 1 year
Quality and long work duration Description of the design:
Опис конструкції: (// tractor-service.com)
Штанга шириною захвата 14 або 16 м та рама обприскувача виготовлені з високоякісного металу, фарбуються італійською автомобільною фарбою.

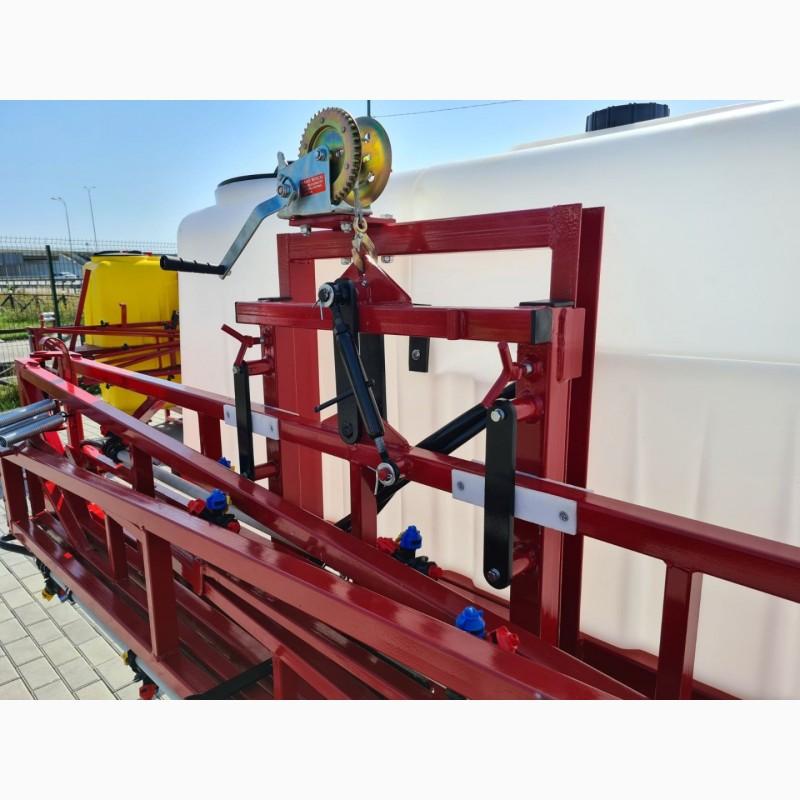

The reinforced design of the new development, has a pendulum system, which is carried out with the help of floods and talrepe. On the bar in places of possible erasure, plates of material, which has a low coefficient of friction, are installed. For a hinge of the rod is used a channel 6 mm thick, which gives reliable operation of the sprayer and rod in the working position. Lifting and lowering the bar is carried out with the help of a powerful and reliable worm of a lacrimal winch capacity of which is up to 900 kg, in which it is not possible to unauthorized lowering
= A platform with stairs is installed on the sprayer frame, which gives convenience when filling the tank through the neck.
The shape of the tank has a flat shape and provides its complete emptying at uninterrupted work pump. The full capacity of the tank is 1225 l, which includes 1000 liters of the main tank 100 liters of the system for washing the system, which can also be used as the main tank (from the sprayer is installed 3-walking faucets) and a drinker for 25 liters.
= Cardan shaft is included in the cost of the sprayer
*Additionally on the sprayer can be installed: 3 positional nozzles, hydraulic cylinder for ascent, tilt hydraulic cylinder, prices:
= - slope hydraulic cylinder - 5200 UAH
- hydraulic cylinder for lift - 6500 UAH
3-х позиційні форсунки з розпилювачами - 110-02, 110-03, 110-03С:
= - a supplement at 14 m - 6300 UAH
- Supplement for 16 m - 7200 UAH
It is located on a large trading site on the Kyiv-Odesa highway in the village. Glevakha str. District 55-D
In stock, delivery by our transport - 30 UAH. for km (one way calculation)
