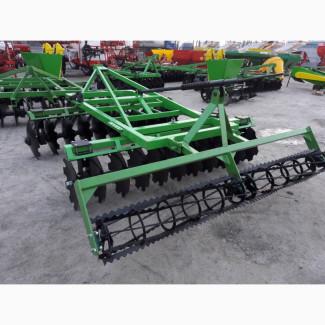

2-section disc harrow 2, 4 m U 363/7 with roller on bearings by Bomet (Poland), Kiev region region.

2-piecesectional disk harrow 2.4 m U 363/7 harrow withroller on Bomet bearings (Poland)

Technical characteristics:
Working width of capture - 2.4 m.
The working depth of processing is 80-150 mm.
Overall dimensions in the working position (section installation angle 0 - max.):
- length – 2650-2880 mm
- width – 2690-2550 mm
- height – 1200 mm
Overall dimensions in the position for transportation.
- length – 2880 mm
- width – 2550 mm
- height – 1200 mm
The weight of the harrow is 580 kg (with roller - 630 kg)
Working elements :
- type of discs - toothed
- number of sections – 2 pcs.(//tractor-service.com)
- number of disks in the section – 10+1 pcs.
- diameter of discs – 510
- disc pitch – 230
Power consumption:
- tractor class - 1.4
- nom. Traction force – 14 kN
- min. Tractor power - 45 (it is allowed to use tractors of class 0.9 - Ursus 4512 on light soils and without slopes)
Working speed - 5-10 km/h
The speed during transportation is 15 km/h.

The disk harrow is intended for pre-sowing processing of dense soils plowed for the winter, for breaking up and crushing large wastes after plowing the meadows of other pasture lands, as well as for husking the stubble immediately after cutting the plants. It can be used for cutting and deepening manure after spreading green fertilizers of small and medium size. It can also be used for mixing mineral fertilizers and lime with the ground. Work can be performed on slopes up to 8.5º.

It is located on the Great Market Square on the Kyiv-Odesa highway in the village of Hlevakha str. District 55-D
in stock,
sent by the carrier Nova-Poshta,
self-imported,
delivery by our transport - UAH 35. per km (one-way calculation)
