Planter Maple 6 T, Mykolaiv region.
Trailed grain planter 6 T Maple, 2010 year of release Клен 6Т, 2010 год выпуска
It is used for technologies with minimal and zero tillage.
The Klen-6T trailed seed drill is intended for regular sowing of seeds of cereals, leguminous crops and herbs with simultaneous fertilization.
It is aggregated with tractors with a capacity of 120 hp. and more The marking device is a disk, hydrofisted with a trigger device. The seeder is equipped with a Maple seeding system. Dosers for seeds - electromechanical, with electronic control and control of operation. For fat application, mechanical coils with an electric drive.
Sown crops:
cereals
legumes
herbs
Technical characteristics
Productivity (Calc.) 7.2 kg/ha
(//tractor-service.com)
Width of capture 6
Working speed 10-12 km/h
Seed sowing rate 0.2-400 kg/ha
The rate of fat application is 60...250 kg/ha
Spacing 18.75 \ 37.5 \ 75 cm
Seed embedment depth 20-80 mm
Double-disc coulters with parallelogram suspension and supporting roller
roller 32 pcs
Cutting knives (with pressure on the soil 150-200 kg) 32 pcs.
Sowing devices for seeds with electronic control and control 8 pcs
Sowing devices for fat, reel with electric drive 8 pcs

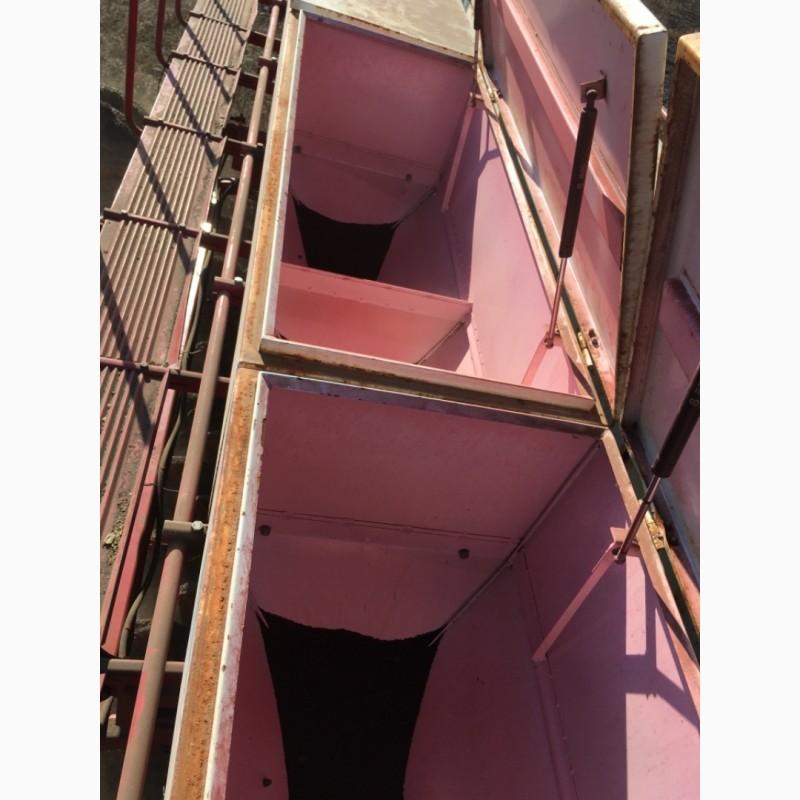

The capacity of the seed hopper is 1680 dm³
The capacity of the fat bunker is 1680 dm³
Power supply voltage of the sowing system for seeds 12 W
The power consumption of the seeding system is 100 W
It is aggregated with a 150 hp tractor.
The weight of the seeder is 5300 kg
