KRONA - Attachment of direct seeding to seed drills, Kharkiv region.

GET OUTSIDE THE FRAME OF TRADITIONAL AGRICULTURE
The use of the KRONA tillage attachment allows you to use a traditional seeder as a direct seeding seeder with minimal capital investment, which allows it to be used both in traditional and minimal tillage systems, including in no-till technology.no-till.

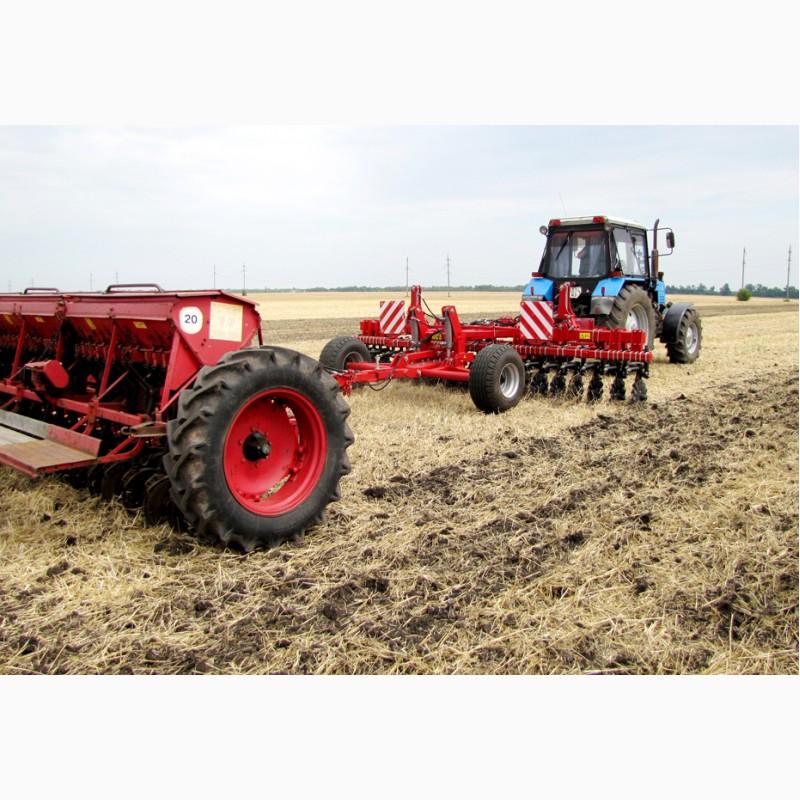

The unit, consisting of a KRON direct seeding attachment and atrailer seeder for traditional technologies of the SZ 3,4 or 5,6 type (or any other) in one pass processes the strips of soil with wavy discs and fills them with seeds with the disc coulters of the seeder. During operation, wavy tillage discs allow to improve the coefficient of soil structure by at least 1.9 times!
The CROWN is intended for cutting the harvest residues and moving them to the sides to allow the disc coulter of seed drills to work for traditional technologies and for local soil processing with the formation of a U-shaped groove up to 4 cm wide.
MAIN TECHNICAL CHARACTERISTICS
Parameters CROWN-3.6 with seeder C3-3.6 CROWN-5.4 with seeder C3-5.4
Design width of capture, m 3.6 5.4
Required power of the tractor, HP from 80 to 150(//tractor-service.com)
Aggregation with tractor semi-mounted semi-mounted
Mass, kg 1921 2786
Number of lines 24 36
Between the rows, cm 15 15
Processing depth, cm 3...8 3...8
Working speed, km/h 6...12 6...12
Productivity, ha/h up to 3.24 to 4.80
Fuel consumption, l/ha 5.5...7.5 5.5...7.5
Overall dimensions in the transport position (length x width x height), mm 4764x3732x1800 5612x4353x3000
