Sell refrigeration compressor Bitzer 4EC 4.2Y, Rovenskaya region.

Company IKR Group offers:

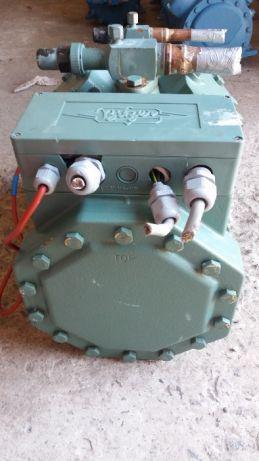

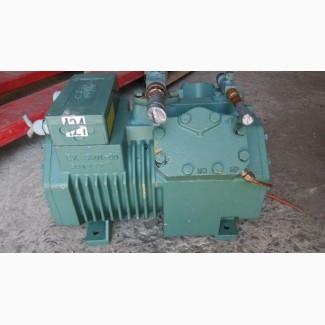

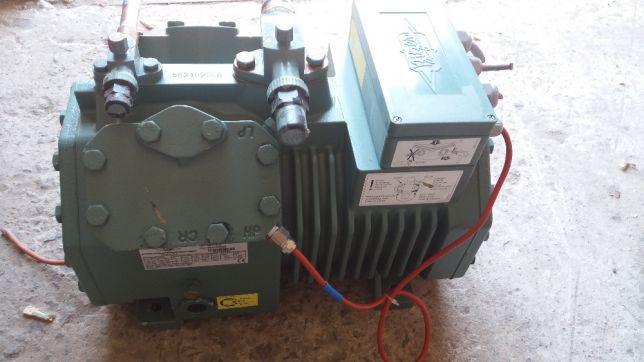

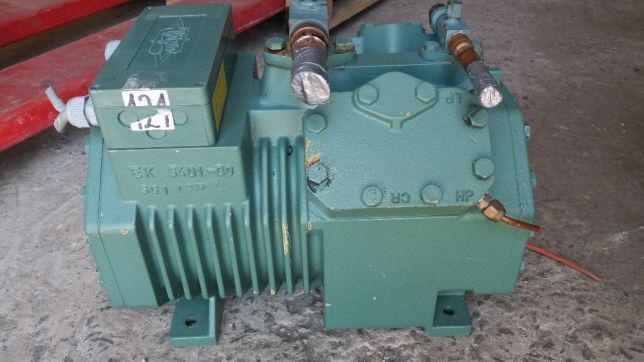

Refrigerant compressor Bitzer 4EC 4.2Y, used, excellent condition, fully ready for operation

Source data:
compressor model - 4EC-4.2Y
Refrigerant - R404A
Temp. used in the calculation - Temp. "dew points"
Liquid supercooling - 0K
Tempo. suction vapors - 20°C
Operating mode - Auto
Power supply - 400V-3-50Hz
Production regulator - 100%
Useful overheating - 100%

Technical data: 4EC-4.2Y-40S
Volume production (1450 rpm 50Hz) - 22.72 m3/h
Volume production (1750 rpm 60Hz) - 27.42 m3/h
Number of cylinders x Diameter x Piston stroke - 4 x 46 mm x 39.3 mm
Motor voltage (other on request) - 380-420V Y-3-50 Hz
The maximum operating current is 10.7 A
Starting current (rotor blocked) - 53.5 A
Weight - 84 kg
Max. excess pressure (ND/VD) - 19 / 28 bar
Suction line connection - 28 mm - 1 1/8''
Connection of the injection line - 16 mm - 5/8''
Oil type for R134a/R404A/R507A/R407C tc55°C: - BSE55 (Option)
Type of oil for R22 (R12/R502) - B5.2 (Standard)
Type of oil for R290/R1270 - Clavus G68 (Standard)
Oil filling - 2.00 dm3
Oil heater in the crankcase - 0..120 W PTC (Option)
Oil level control - OLC-K1 (Option, not for R290/R1270)
Injection temperature sensor - Option(//tractor-service.com)
Motor protection - SE-B1
Protection class - IP65
Bootloader - Option
Performance regulation - 100-50% (Option)
Additional fan - Option
Anti-vibration dampers - Standard
Sound power level - (-10°C/45°C) @50Hz 70.0 dB(A) @ 50Hz
Sound power level - (-35°C/40°C) @50Hz 72.0 dB(A) @ 50Hz
Sound pressure level @1m - (-10°C/45°C) @50Hz 62.0 dB(A) @ 50Hz
Sound pressure level @1m - (-35°C/40°C) @50Hz 64.0 dB(A) @ 50Hz
