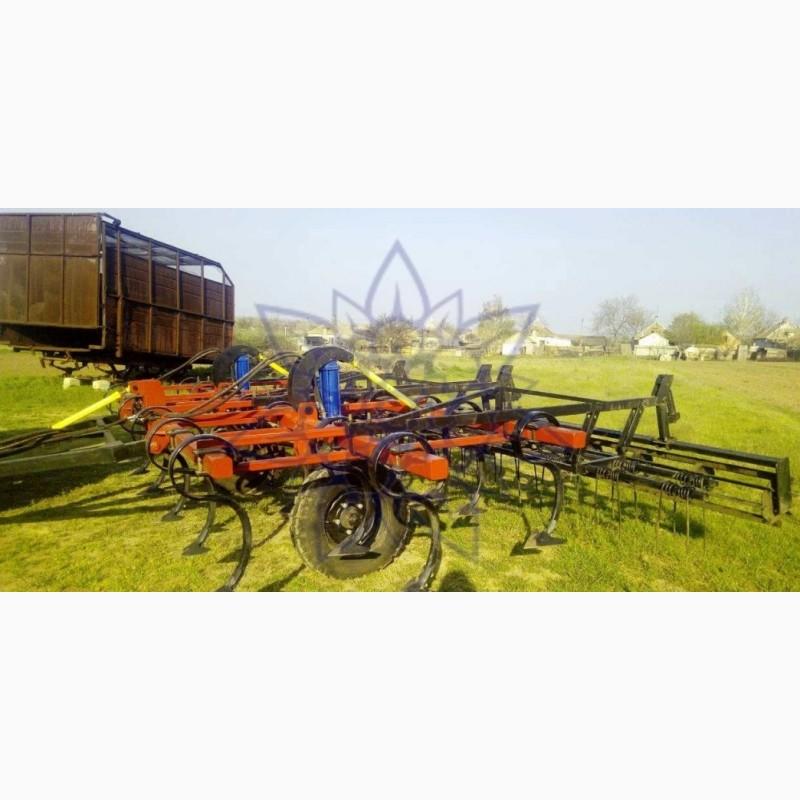

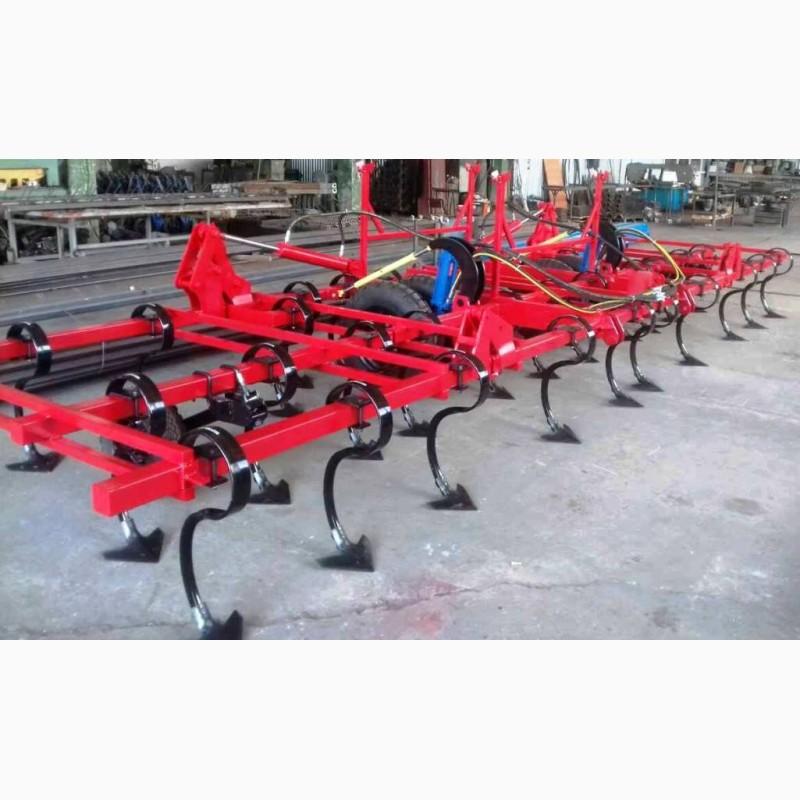

KPS three-row cultivators of the new generation, grip width up to 8m, buy new KPS, Dnipropetrovsk region.

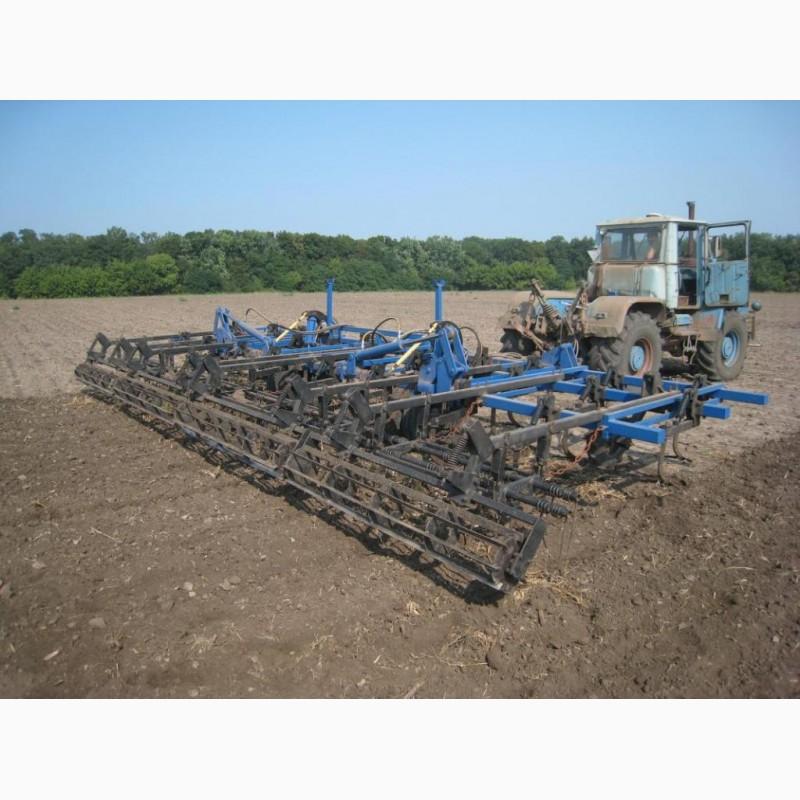

Cultivators are aggregated with class 3 tractors, 120 hp .(including T-150).
Production andwarehouse in Dnipro. We invite you to make sure that there is a manufacturer in Ukraine who treats quality conscientiously and respects your work.

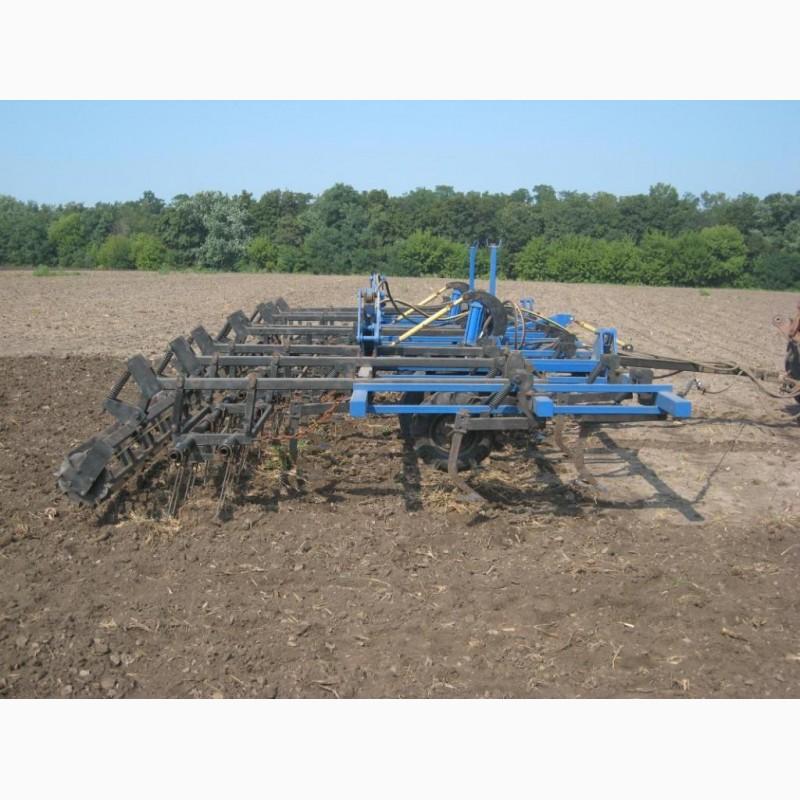

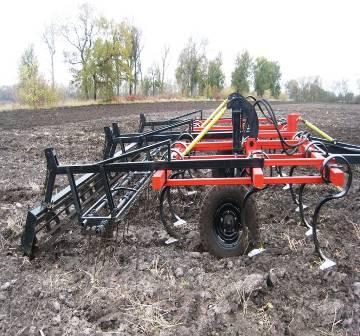

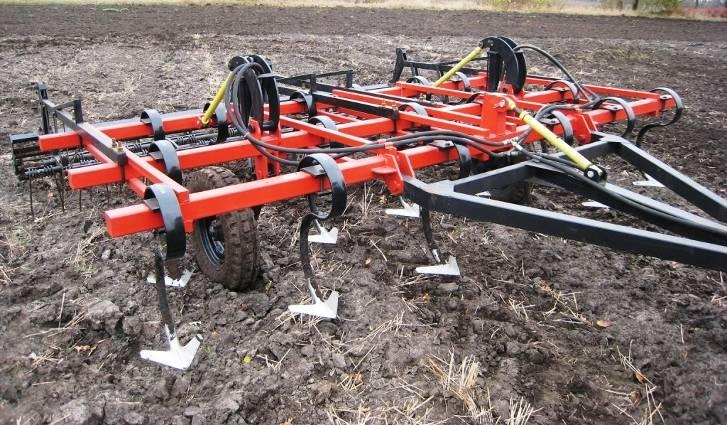

Cultivators KPS-8(3P)PK and KPS-8(3P)PKV are intended forpre-sowing soil treatment and steam treatment with simultaneous harrowing. Tested in work on soils in all climatic zones of Ukraine.
We guarantee high-quality processing worthy of your attention!

Features:
- Working width of capture up to 8.1m;
- The depth of cultivation and loosening is from 5 to 12 cm;
- The depth of processing with toothed spring harrows is from 4 to 8 cm;
- Productivity during pure operation is about 8 Ha;
- Working speed up to 15 km/h;
- Transport speed depending on road conditions, no more than 15 km/h;
- Overall dimensions (without installed harrows)
In working position:
*Length 5600(4100) mm;
*Width 8100(7900) mm;
*Height 1000mm;

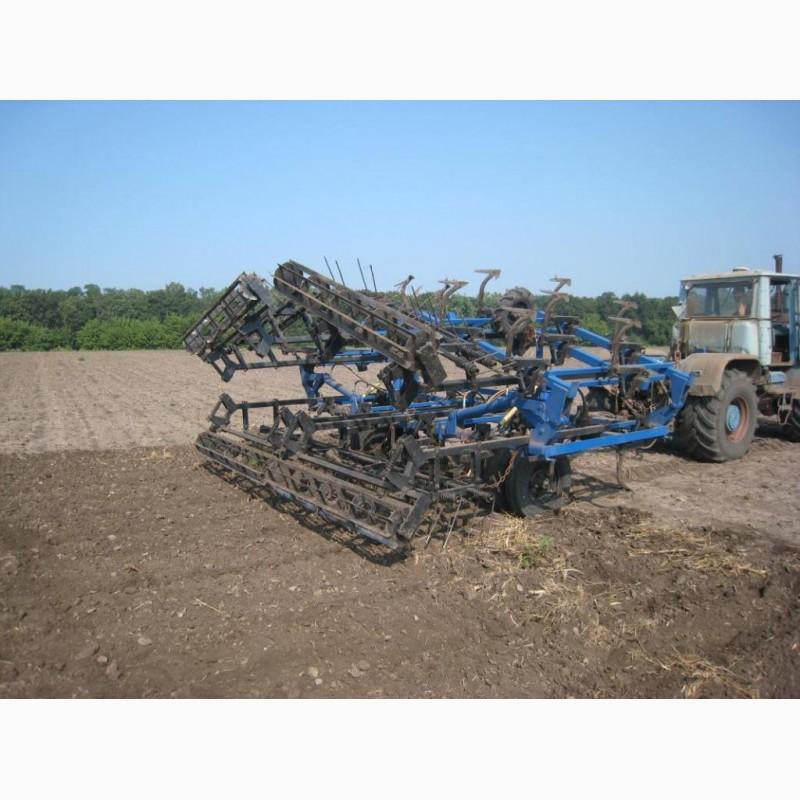

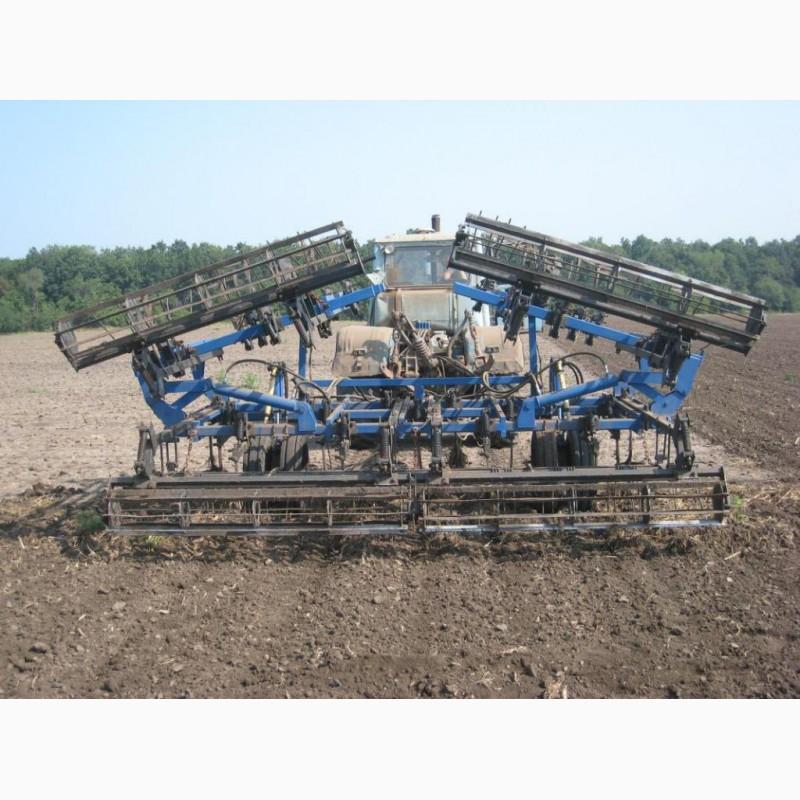

In transport position:
*Length 5600(4100) mm;
*Width 4650mm;
*Height 2200mm;
- Cultivator mass (without harrows and rollers), 2250(1600) kg; 199
- Обслуживающий персонал 1 чел.(тракторист);
- Transport clearance over 250mm;
- Track width 2900 mm.(//tractor-service.com)

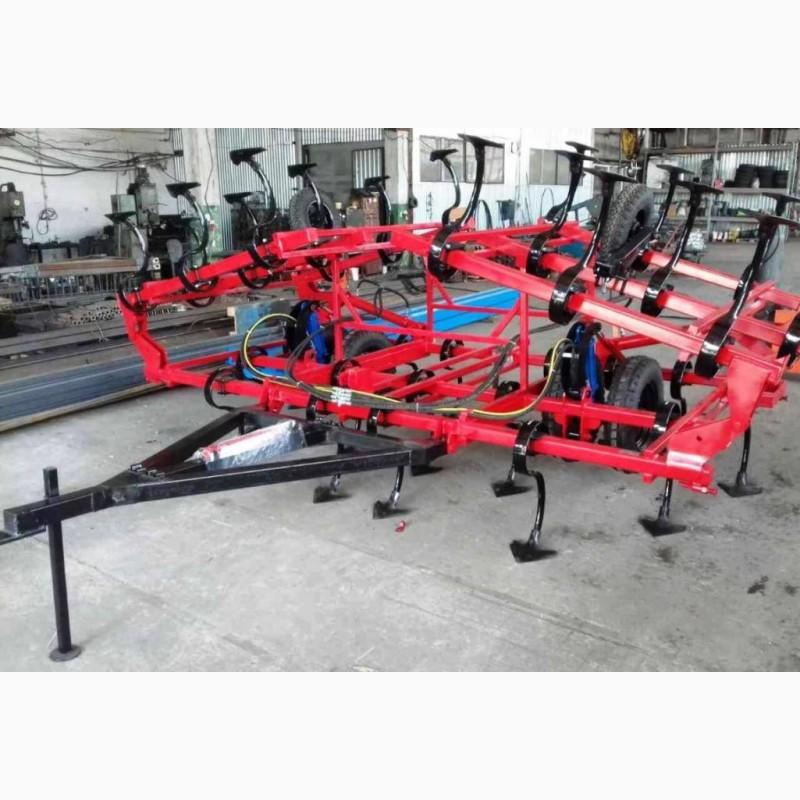

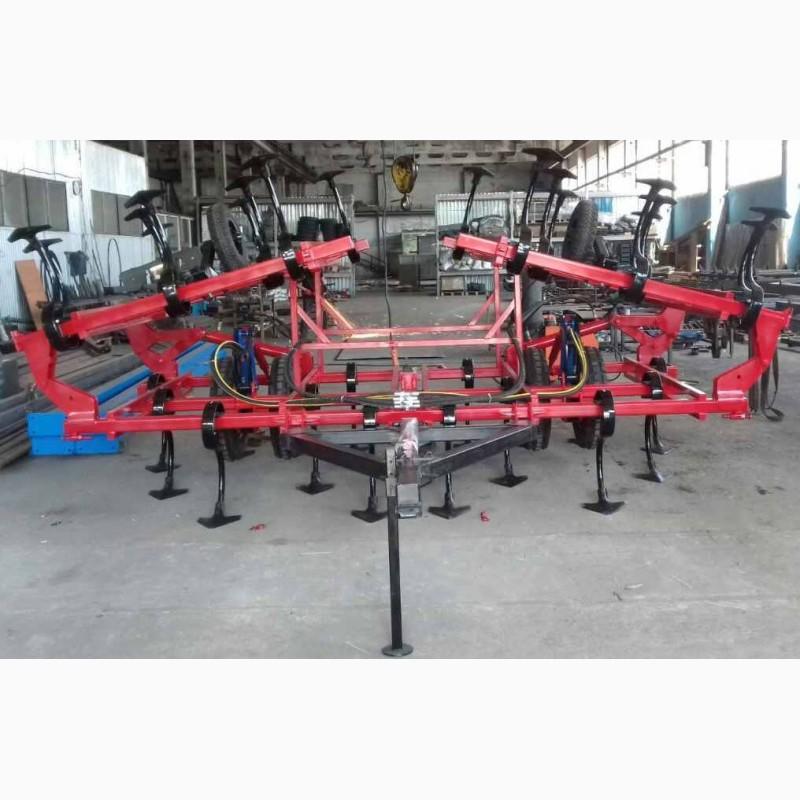

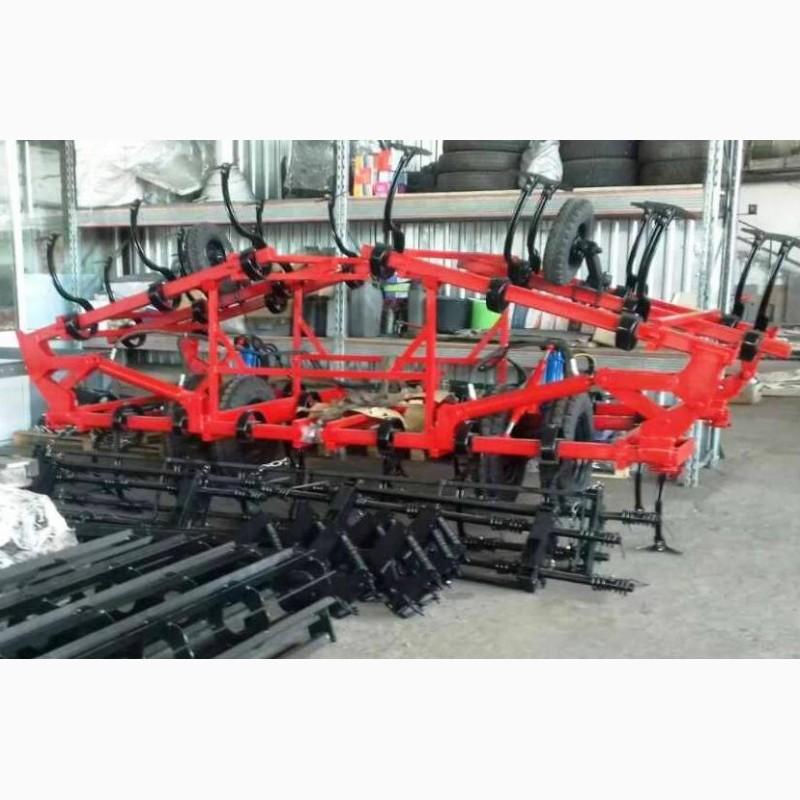

Technical features of the KPS-8(3P)PC:
1. Central frame made of pipe 80x80x8mm;
2. Wings from a pipe 80x80x4mm;
3. Transverse pipes for connecting the frame 40x40x3mm;

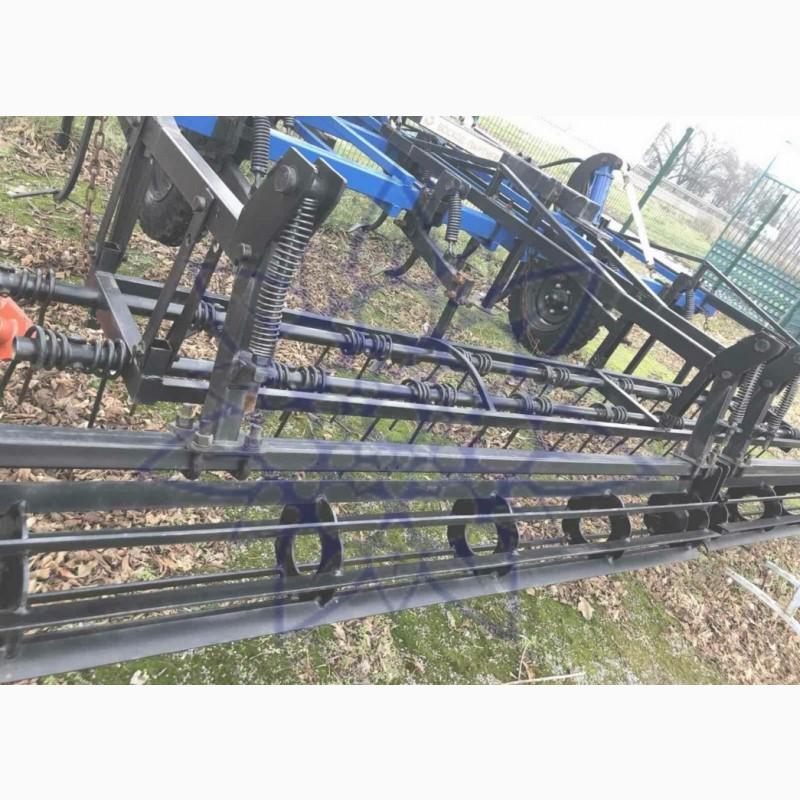

4. Spring harrow attachment pipe 60x60x4mm;
5. Pipe dimensions ontrailer part, central part — 80x80x8mm, side parts — 80x80x4mm;

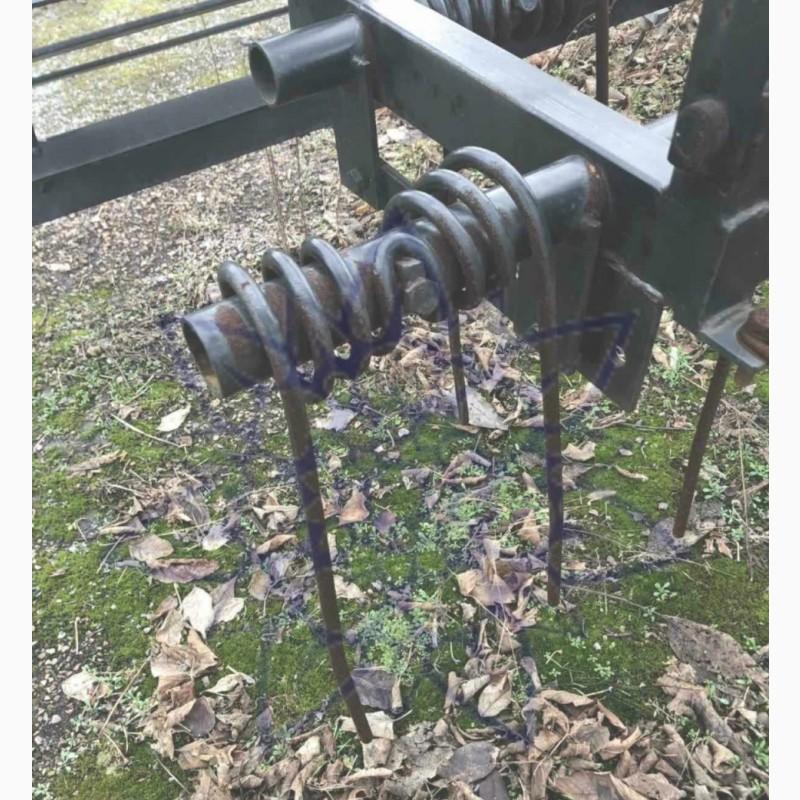

6. The diameter of the spoke rod on the spring harrow is 10 mm;

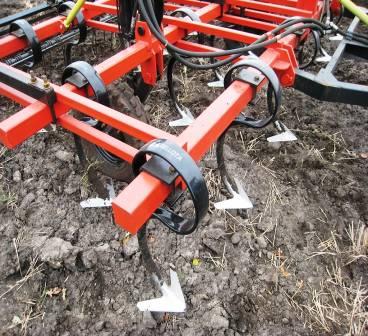

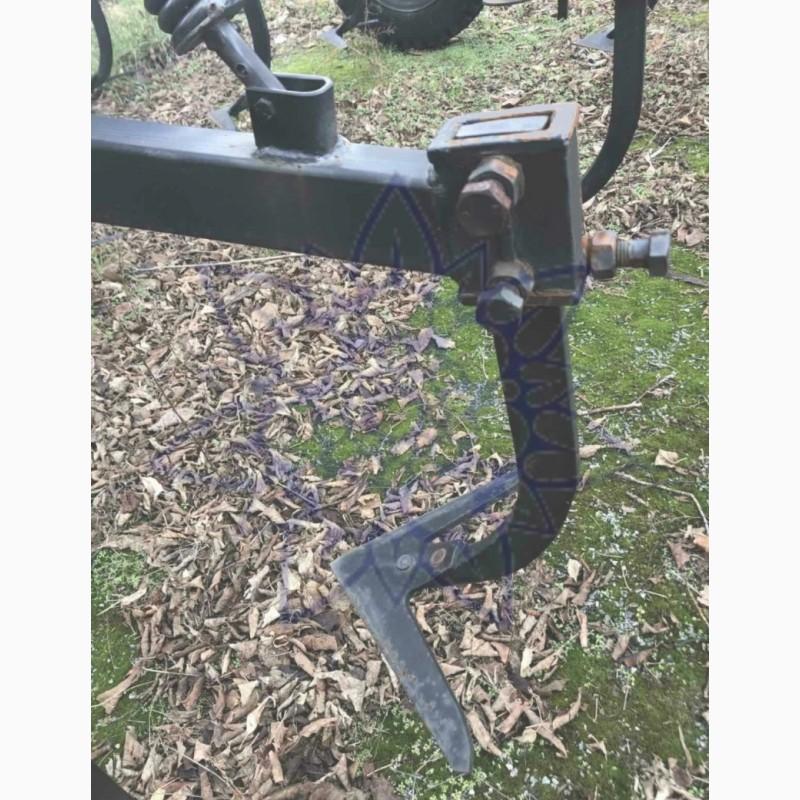

7. The diameter of the spring rod at the node of the working body is 8 mm, with the working body of Bellota (Spain), the width of the S-shaped rack is 70 mm;
8. The outer diameter of the roller is 270 mm;
9. Clearance under the frame, at the maximum approach to the ground: with working bodies of the KPS — 437 mm; with Bellota working bodies — 537 mm;
10. Clearance under the frame, with minimal approach to the ground: with working bodies of the KPS — 776 mm; with Bellota working bodies — 876 mm;
11. In the transport position, the distance between the edges of the working bodies and the ground is 250-260 mm;
12. UCF 206 self-centering body bearings are installed on the rollers, in the bearing units equipped with oilers;
13. Welding works - semi-automatic in an argon environment;
14. Painting with powder paint.

Each cultivator has a zip kit, which includes: a scraper (blade) for cleaning the soil, a bearing for the roller UCF 206 (body, self-centering), a repair kit for hydraulic cylinders (cuffs, seals, gaskets), wrenches.

The price is conditional. We will communicate the exact information on the day of your call.

Factory number.
Warranty and service in Ukraine!

For the delivery of goods, we use the services of combined transport (the cheapest way of delivery).
Cultivators of our production are one of the best choices for the successful development of your business.
Thank you for supporting the domestic producer.
