KPS-4 cultivator. New standard. Three in a row. Pre-sowing and in pairs, Dnipropetrovsk region.

Cultivators are aggregated with MTZ-80, MTZ-82, weight 1.25t. and are available in two versions:

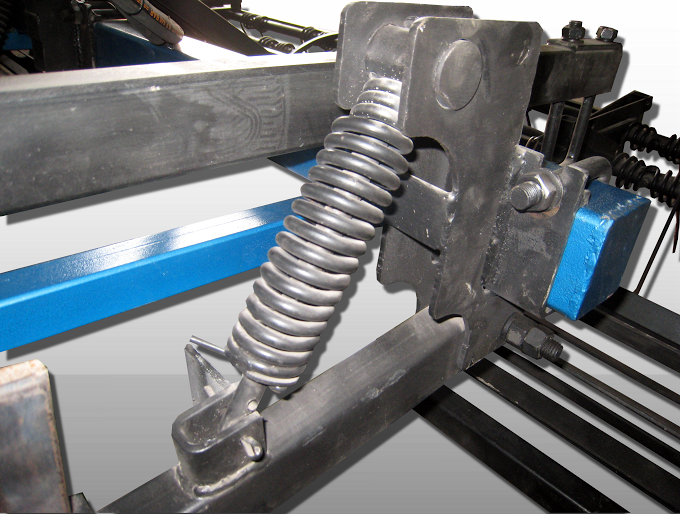

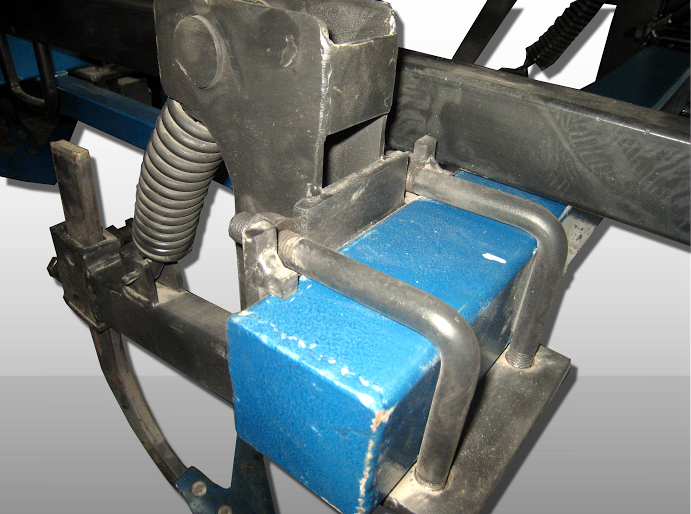

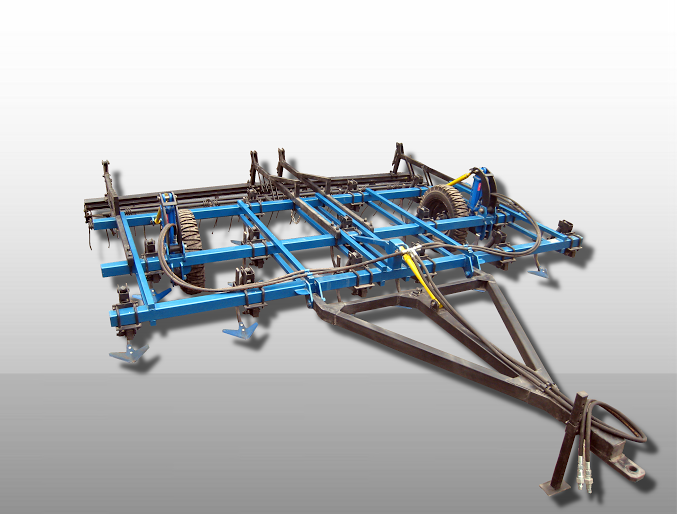

- blue color, with an original spring-loaded unit and a working body of the KPS standard, with arrow legs 270 mm wide. and 330 mm.,

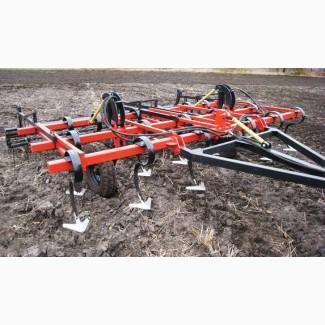

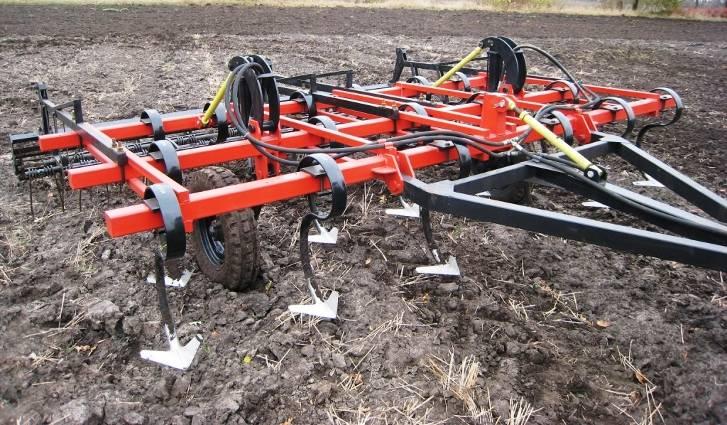

- red color, with working spring S-shaped racks and arrow legs with a grip width of 260 mm., made in Italy or Spain.

Technical featuresKPS-4(3Р):
1. Central pipe frame 80x80x4mm. (blue), 80x80x6mm. (red); 180
2. Поперечные трубы для соединения рамы 40х40х3мм;
3. Spring harrow attachment pipe 40x40x3mm;
4. Pipe dimensions ontrailer part 80x40x4mm;
5. The diameter of the rake rod on the spring harrow is 10 mm;
6. The diameter of the spring rod at the node of the working body is 8 mm, with the working body of Bellota (Spain), the width of the S-shaped rack is 70 mm;

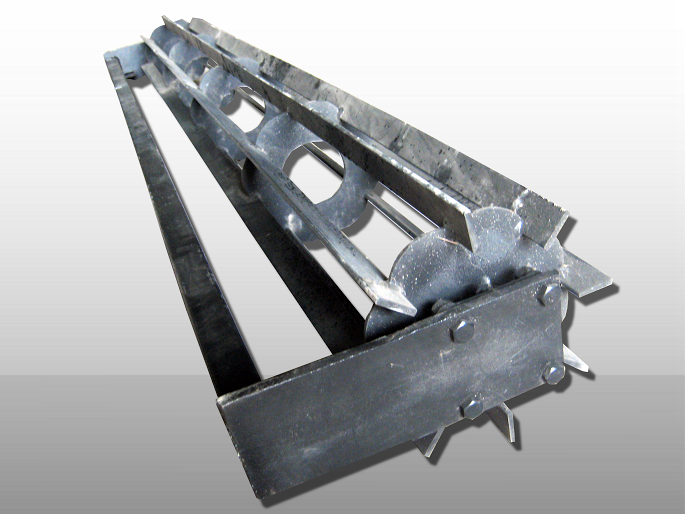

7. The outer diameter of the roller is 270 mm;
8. Clearance under the frame, at the maximum approach to the ground: when equipped with working bodies of the KPS — 437 mm; equipped with Bellota working bodies — 537 mm;
9. Clearance under the frame, with the minimum approach to the ground: when equipped with working bodies of the KPS — 776 mm; complete with Bellota working bodies — 876 mm;
10. In the transport position, the clearance between the tip of the working bodies and the ground is 250-260 mm;
11. Distance between working bodies (in width) from 680 to 900 mm;(//tractor-service.com)
12. The distance between rows of working bodies of the 1st and 2nd rows — 630 mm, 2 and 3 rows — 870 mm;
13. The width of the arrow paw is 270 and 330 mm (working body of KPS), 260 mm (working body of Bellota);
14. UCF 206 self-centering housing bearings are installed on the rollers, in the bearing units equipped with oilers;
15. Welding works - semi-automatic in an argon environment;
16. Painting with powder paint;

Each cultivator has a zip kit, which includes: a scraper (blade) for cleaning the soil, a bearing for the roller UCF 206 (body, self-centering), a repair kit for hydraulic cylinders (cuffs, seals, gaskets), wrenches.
