100-55ds water supply pump for water, Kyiv

100-55ds water supply pump for water

product description
Specification
use for irrigation and water supply

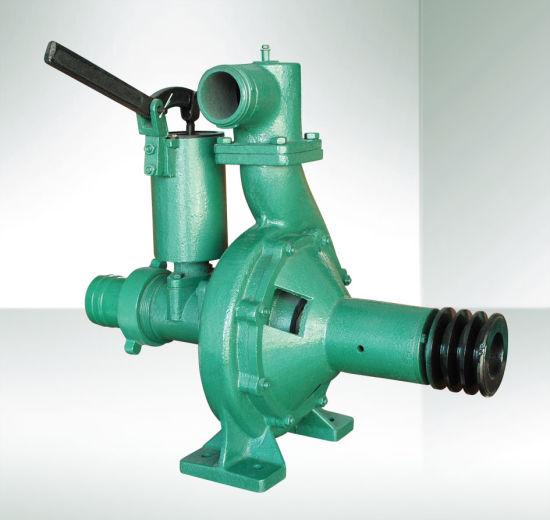

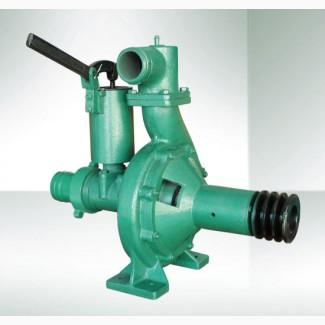

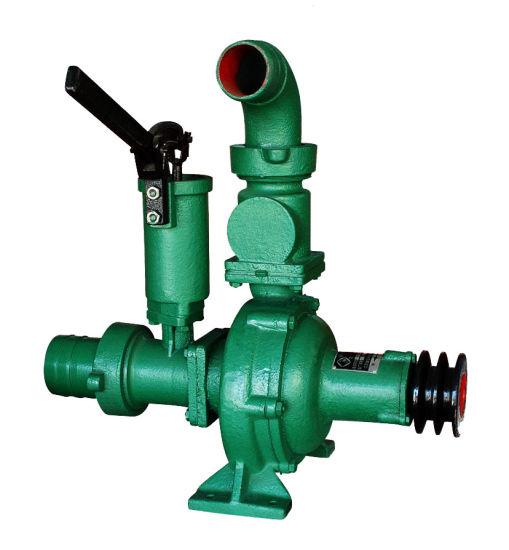

Centrifugal pumps of our company, manufactured in strict accordance with the JB / T6663.1-93 standard, which mainly consist of an impeller, a housing, a seal, a bearing housing, etc., are used to transport pure water or others whose properties are similar to water.
The average temperature cannot exceed 176 ° F.
It has two types of drive: one is a power machine connected to the pump directly with the help of a clutch, the other is a power machine and the pump rotates through a pulley. The power unit can be a diesel engine or an electric engine, the user can choose as needed.

Volume
First of all, it supports the use of a low-tonnage machine for spraying, as well as a stationary or semi-permanent sprinkler system, which is widely used for irrigation of various agricultural plots, gardens, vegetable farms and gardeners, it can also be used in a pumping unit for water supply and sewage, urban construction, factories and mines.(//tractor-service.com)

Principle
Before starting, it is necessary to fill the pump with water, after which the impeller rotates at high speed under the engine, when the impeller turns, the water pressure at the inlet to the impeller decreases, and the inlet wheel is below atmospheric pressure. While the pressure of water along the direction of the radiusworking wheel continuously rises and goes beyond the limits of atmospheric pressure, a certain suction in the water intake is formed. At atmospheric pressure, the lower water will push the inlet valve, enter the bodypump along the water inlet, be discharged into the drain through the impeller. So that the lower water can be continuously transferred to the height.

Use and technical maintenance
You must make the pump work at a standard rotation speed during use, do not accelerate at will to avoid potential safety hazards and not affect the service life of the pump.
Pump units with direct connection: the chassis must remain stable so as not to damage the coupling. Belt-type pump units: the two pulleys must be aligned, the belt must be loose or tighten moderately. If the pump does not rotate, this is usually due to the fact that the impeller oscillates from rust, you can use a hammer to tap the coupling in the axial direction.
The height of the installation of the pump (for the suction of the water tank as a base) should be less than 1-2 m. You must stop the engine if you detect abnormalities (such as noise, impact, hydraulic discharge, etc.), and attention, which heats the bearing, the temperature cannot exceed 75 ° C.
Вы должны остановить двигатель, если обнаружите аномалии (такие как шум, удар, гидравлический разряд и т. Д.), И внимание, которое нагревает подшипник, температура не может превышать 75 ° C.
    If you stay for a long time, you should drain the water in the pump, overhaul and oil, leave it in a dry and ventilated room. In winter, you should discharge the water as soon as you stop using it in case of a frost crack.
    After the pump has been running every 1000 hours of operation, you must remove and clean the bearing and replace the quick-release parts.
