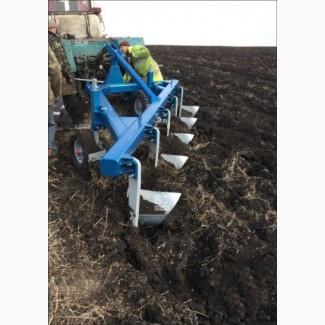

High-speed plow ATLANT PS-4U, Cherkassy region.

SPEED ATLANT PLOW PS-4U
The plow is intended for high-qualitycultivation of the soil, namely: mixing of soil layers, enriching it with oxygen.
The maintask of the plow is to turn over the top layer of the earth. Plowing reduces the number of weeds, loosens and makes the soil softer and more pliable, facilitates further sowing. In the process of plowing, annual weeds that have already started to grow, but are not yet strong enough, are damaged. In addition, the turnover of the soil layer contributes to the movement of ungerminated weed seeds into the lower (deeper) layer of fertile soil, which, in turn, creates an additional obstacle in the path of the germination of weeds - many seeds die in the process.

BENEFITS AND ADVANTAGES OF THE ATLANT PS-4U PLOW:

1) Cover width – 60 cm.
2) Fuel economy - up to 9 kg/ha.
3) Gripping width – 2.4 m.
4) Productivity – 1.4-2.1 ha/hour.
5) Ease of maintenance.
6) Perfectly proved itself in heavy soils.

1) High-strength frame.
2) Working bodies made of wear-resistant steel.
3) Frame protection system.
4) Ease of maintenance.
5) Ease of setting.

CHARACTERISTICS OF SPEED ATLANT PS-4U PLOW:(//tractor-service.com)

PARAMETER VALUE
The width of the capture is 2.4 m.
Cover width, cm 60
Number of cases, pcs. 4
Plowing depth, cm 12 - 30
Working speed, km/h. 8-10
Productivity ha/h. 1.4-2.1
Specific fuel consumption kg/hour. 10-15
Mass of the plow, kg 950
Overall dimensions, m: length 3.5
width 2.7
height 1.5
The resource of working bodies ha, (when increasing the hardness and resistance of the soil, the resource of working bodies decreases to 50%), ha. 160
Soil moisture, % up to 30
Soil hardness, MPa up to 3
Soil specific resistance, MPa. 0.1
Formation rotation, degrees 180 (full rotation)
Minimum powertractor (wheeled) (may vary depending on the type and characteristics of the soil), l/s. 140
It is aggregated with tractors, DT-75 (hus); DT-75M (hus); MTZ-1221; LTZ-155, other foreign analogues.
