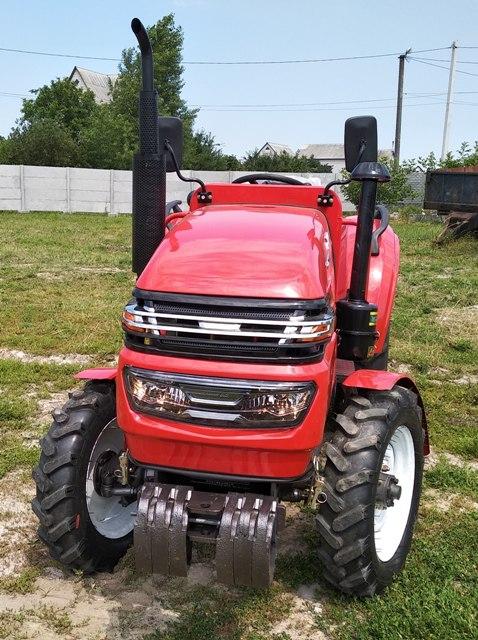

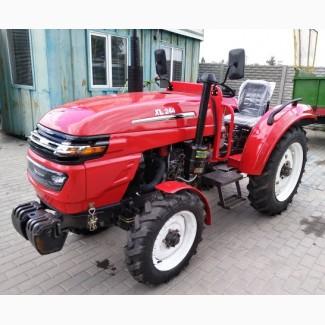

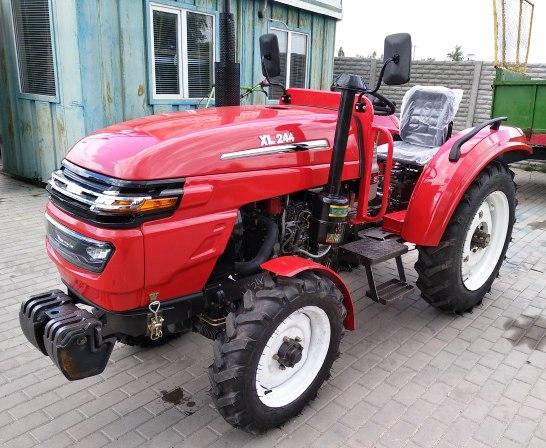

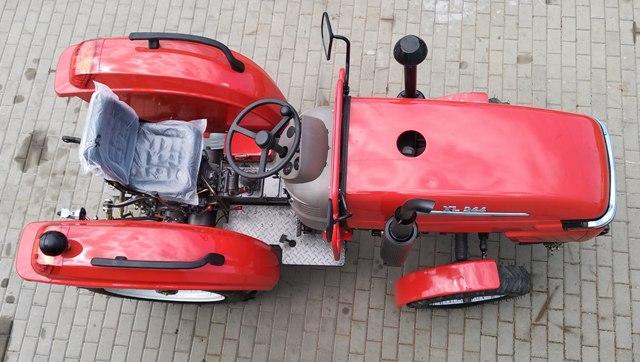

All-wheel drive Chinese mini-tractor with a three-cylinder liquid-cooled diesel engine with power steering.
Swinging front axle with rotary knuckles. Differential lock, mass switch, two hydraulic pumps, electric torch heater, fenders on front
wheels, front
tyres 6.0-16.00, rear-view mirrors, handrails on rear fenders, separate brake pedals, manual gas, seat on springs with height adjustment, front rear cargo, rear tires 9.5-24, collapsible discs of the rear wheels on the hub, rear working light, parking brake, hydraulic outlet, battery 80 A/h, mesh in front of the radiator, muffler with a protective mesh, powerful towing device, trailer socket.
Power, hp, (kW) 24 (17.6)
Wheel formula 4x4, plug-in front axle

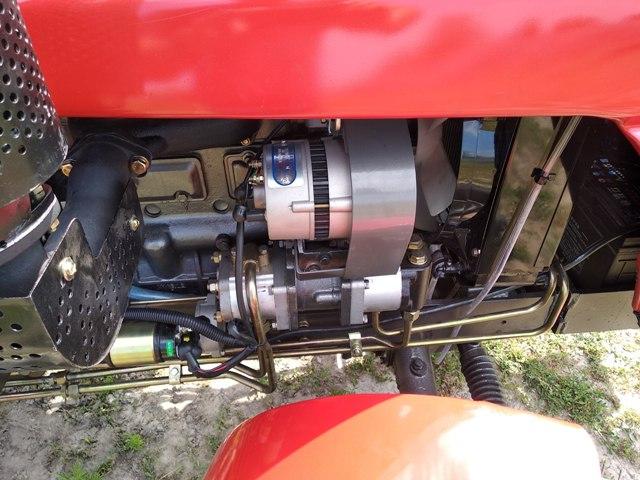

Diesel engine, KM385BT
Number of cylinders 3
Working volume, l 1.53
Specific fuel consumption, g/kW*h 249
Liquid cooling
Heating of the power supply system is available

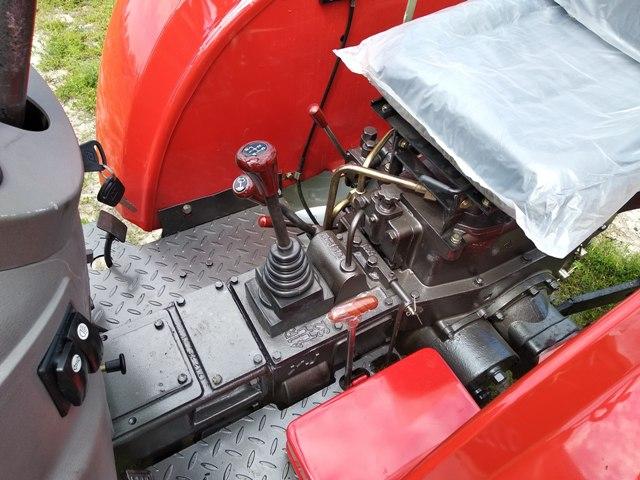

Gearbox (4+1)x2, mechanical
Gear transmission

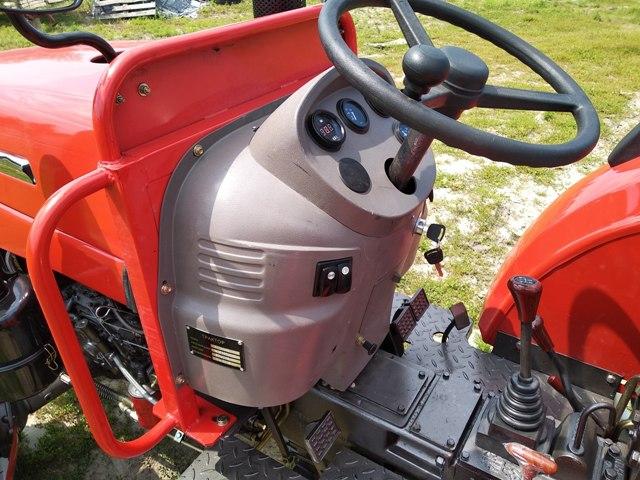

Steering with power steering
One-disc clutch
(//tractor-service.com)
The rear differential is blocked.
Rear transmission brakes, drum, separate.
There is a parking brake
Dimensions L/W/H, mm 3160/1280/1955
Wheelbase, mm 1730
Min front/rear axle track, mm 980/1000
Agronomic clearance, mm 300
Constructive weight, kg 960
Speed, km/h 1.9-29.4/2.5-12.3
Tire size 6-16/9.5-24
Tank volume, l 21

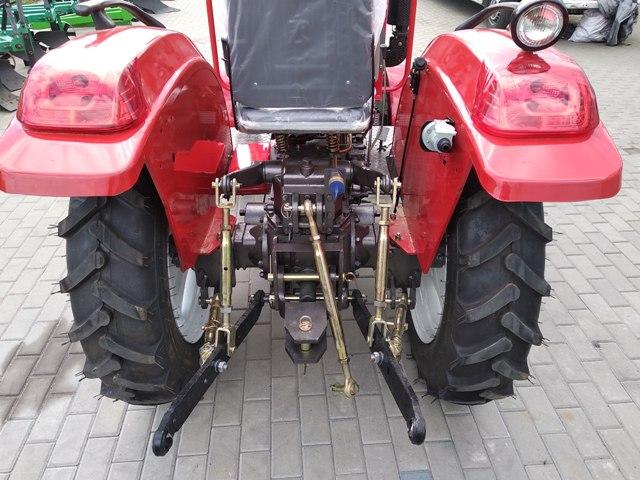

Power take-off shaft, rpm. rear, 540
Traction force on the hook, kN 5.7
There is a hydraulic outlet.
Minimum turning radius, m 3.9
Loads front/back, kg there is
