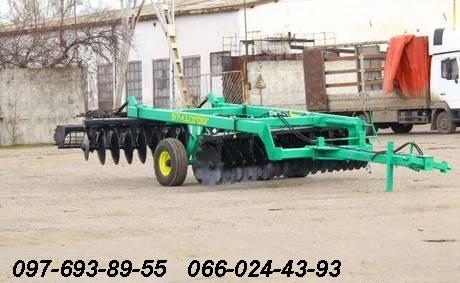

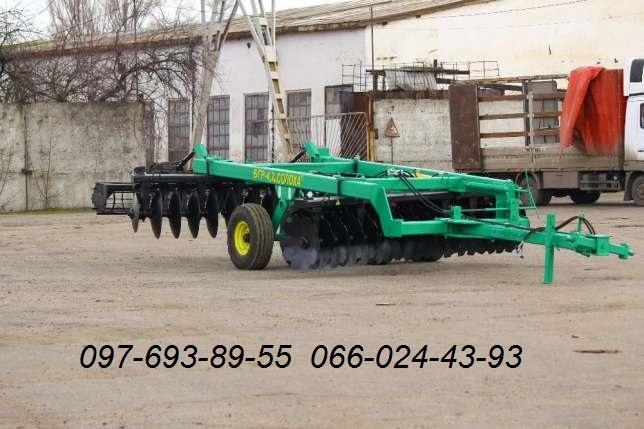

Disk harrow Solokha BGR 4.2 with roller state compensation, Dnepropetrovsk region.

Disk harrowSoloch harrow BGR 4.2 with skating rink state compensation. New, warranty.. Available. Delivery in Ukraine is free. Mass of the harrow, kg 4 250. It is aggregated with tractors of the 30 kN class. The harrow consists of two batteries with "chamomile" discs installed on the front, and solid discs on the rear, which makes it possible for the harrow to work at a given depth and with a high degree of quality, regardless of the hardness of the soil and crop residues on the surface of the field. This is achieved primarily due to the large load on the disk (inBGR-4,2 "Solokha" it is 130 kg/per disk), and the combination of disks (disks " camomile" are best able to cut the soil layer and grind harvest residues, "solid" discs better mix and crumble the soil and grind it), thanks to this, "Solokha" copes well with large harvest residues.
To increase reliability and speed up repairs, both disc batteries of the harrow are divided into three sections, each of which rests on two supports with bearing assemblies, thus, with a working width of 4.2 m, the disc battery rests on six bearing assemblies with self-centering spherical roller bearings, which have several degrees of protection against dust and dirt getting into them.(//tractor-service.com)
Sections of disk batteries are assembled on shafts of square section, which makes it impossible to rotate disks, coils between disks and pressure washers.
Discs with a diameter of 710 mm are installed on the harrow. The most important advantage of this disc harrow is a stable cultivation depth. In the BGR-4.2 "Solokha" disk harrow, the depth of cultivation is also set by the angle of attack of the batteries, but it is additionally limited by the wheel suspension, so even with the maximum angle of attack of the batteries, the harrow will not go deeper than that set on the wheel suspension.

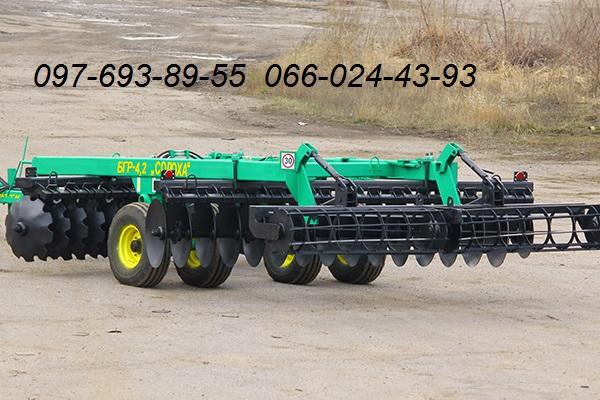

The harrow can be equipped with a rolling roller
