Branch chopper, branch shredder, branch crusher ARPAL/ARPAL cutting module AM-80, Vinnytsia region.

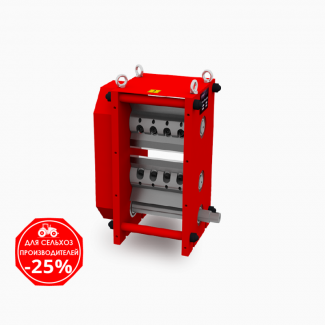

The AM-80 cutting module is a component, the main working elementshredder branches. It can be used for processing and utilization by cutting branches, slats, slats, slats and other wood waste. The cutting module turns the raw material into pieces 6...12 cm long, this size is not adjustable and depends on the diameter (thickness) of the raw material. The AM-80 cutting module is capable of cutting branches with a diameter of up to 8 cm, depending on the humidity and type of tree. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, furnaces and other heating devices, as well as for the production of charcoal.

The AM-80 cutting module can be driven by almost any drive, it can be electric or gasoline engines,motoblock and also PTOtractor. Depending on the drive, when ordering, you can choose the version of the drive shaft under the key or under the splines.

Knives are the working element of the AM-80 cutting module. There are 6 knives installed on the cutting module, the knives are made of 40X steel, have a double sharpening angle and must undergo a heat treatment process on a modern TVC installation. The knives of the cutting module are inserted into the milled groove of the working shaft, this technology allows to significantly reduce the load on the fastening bolts of the knives.(//tractor-service.com)

The cutting module AM-80 has milled grooves with the help of which it is possible to fix the cutting module on the frame or other necessary surface. Threaded holes are provided in the plates of the cutting module for fastening the hoppers for loading and unloading products.

The cutting module AM-80 is completely manufactured at our enterprise. We control the quality of all stages of our production, all seating surfaces undergo mandatory grinding. Quality control of welded seams is carried out. Before painting, all structures are cleaned. The cutting module is covered with powder paint, which significantly extends the service life of the structures.

By purchasing the cutting module of the branch shredder from us, you will receive a reliable assistant on the way to your energy independence!
