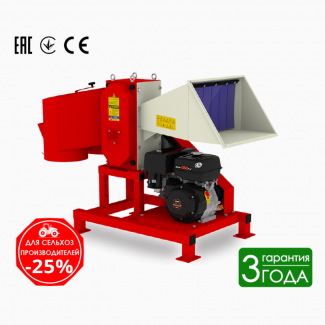

A branch shredder, branch crusher, shredder for branches ARPAL/ARPAL AM-120BD, Vinnytsia region.

Izmelchitel branch AM-120BD is intended for processing and utilization by cutting branches, slats, logs, lamellas and other wood waste. The branch shredder turns the raw material into pieces 9...18 cm long, this size is not adjustable and depends on the diameter (thickness) of the raw material. The AM-120BD branch chopper is capable of cutting branches with a diameter of up to 12 cm, depending on the humidity and type of tree. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, furnaces and other heating devices, as well as for the production of charcoal.

The productivity of the AM-120BD branch shredder is a maximum of 6 cubic meters of finished product during operation. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work.

The AM-120BD branch chopper is equipped with a 16 hp WEIMA gasoline engine. the fuel consumption of which is only 800 g/hour. This engine is one of the highest quality on the territory of Ukraine, service centers are located in each region. The engine is protected from overloads by a special friction clutch developed by us. The engine is covered by a separate warranty from the manufacturer for 12 months.

Knives are the working element of the branch chopper. 6 knives are installed on the AM-120BD branch chopper, the knives are made of 40X steel, have a double sharpening angle and must undergo a heat treatment process on a modern TVC installation. The knives of the branch chopper are inserted into the milled groove of the working shaft, this technology allows you to significantly reduce the load on the fastening bolts of the knives.

The branch shredder AM-120BD is mounted on a rigid frame made of a profile pipe, which has mounting legs with the help of which it is possible to fix the branch shredder on any convenient surface (for example, a cartrailer).(//tractor-service.com)

The AM-120BD branch chopper is equipped with an unloading hopper capable of packing ready-made products into nets. The unloading hopper has two mesh fasteners and a slide switch that allows you to choose the desired unloading direction. Such a design allows you to significantly speed up the process of packingchopped firewood. Standard grids with a size of 50x80 cm are suitable for the AM-120BD branch chopper.

The entrance hopper of the wood chipper is equipped with a transparent PVC curtain to protect the operator from chips during work.

The branch shredder AM-120BD is completely produced at our enterprise. We control the quality of all stages of our production, all seating surfaces undergo mandatory grinding. Quality control of welded seams is carried out. Before painting, all structures are cleaned. The grinder is covered with powder paint, which significantly extends the service life of the structures.

We are confident in our products, so we provide a 36-month warranty for the AM-120BD branch chopper. In addition, as a manufacturer, we provide both warranty and post-warranty maintenance of the AM-120BD branch chopper.

By purchasing a branch shredder from us, you will receive a reliable assistant on the way to your energy independence!
