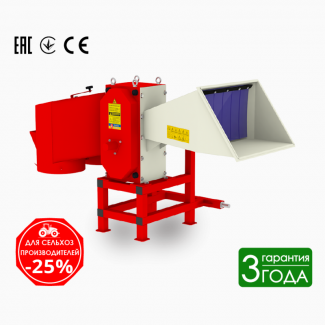

Branch chopper, branch crusher, branch shredder ARPAL/ARPAL AM-120TR, Vinnytsia region.

Am-120TR branch chopper is intended for processing and recycling by cutting branches, rails, skirting boards, slats and other wood of waste The branch shredder turns the raw material into pieces 9...18 cm long, this size is not adjustable and depends on the diameter (thickness) of the raw material. The AM-120TR branch chopper is capable of cutting branches with a diameter of up to 12 cm, depending on the humidity and type of tree. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, furnaces and other heating devices, as well as for the production of charcoal.

The productivity of the AM-120TR branch shredder is a maximum of 6 cubic meters of finished product during operation. Productivity directly depends on the quality of raw material preparation and the number of personnel involved in the work.

The AM-120TR branch chopper is driven by the PTO of the tractor and is mounted on a standard three-point linkage. The minimum required power of the tractor is 25 hp. To connect the tractor to the wood chipper, we recommend using a T5 class cardan shaft with a friction clutch that protects the wood chipper andмощность трактора для работы с измельчителем веток составляет 25 л.с. Для соединения трактора с измельчителем веток мы рекомендуем использовать карданный вал класса Т5 с фрикционной муфтой которая защищает измельчитель веток и tractor from overloads.

Knives are the working element of the branch chopper. 6 knives are installed on the AM-120TR branch chopper, the knives are made of 40X steel, have a double sharpening angle and must undergo a heat treatment process on a modern TVC installation. The knives of the branch chopper are inserted into the milled groove of the working shaft, this technology allows you to significantly reduce the load on the fastening bolts of the knives.
(//tractor-service.com)
The AM-120TR branch chopper is equipped with an unloading hopper capable of packing ready-made products into nets. The unloading hopper has two mesh fasteners and a slide switch that allows you to choose the desired unloading direction. Such a design allows you to significantly speed up the process of packing chopped firewood. Standard grids with a size of 50x80 cm are suitable for the AM-120TR branch chopper.

The entrance hopper of the wood chipper is equipped with a transparent PVC curtain to protect the operator from chips during work.

The branch shredder AM-120TR is completely produced at our enterprise. We control the quality of all stages of our production, all seating surfaces undergo mandatory grinding. Quality control of welded seams is carried out. Before painting, all structures are cleaned. The grinder is covered with powder paint, which significantly extends the service life of the structures.

We are confident in our products, that is why we provide a 12-month warranty for the AM-120TR branch chopper. In addition, as a manufacturer, we provide both warranty and post-warranty maintenance of the AM-120TR branch shredder.

By purchasing a branch shredder from us, you will receive a reliable assistant on the way to your energy independence!
