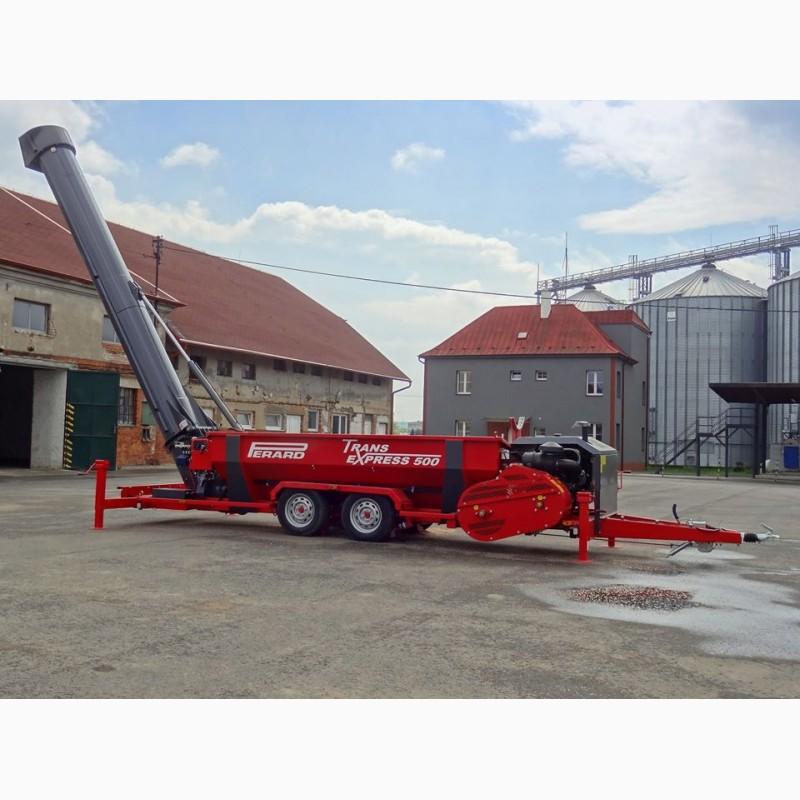

Perard Trans eXpress 500 grain loader, Volyn region.

Grain reloader
It is powered by the GDP of a tractor with a capacity of 80 hp or more. up to 130 hp , depending on the model.

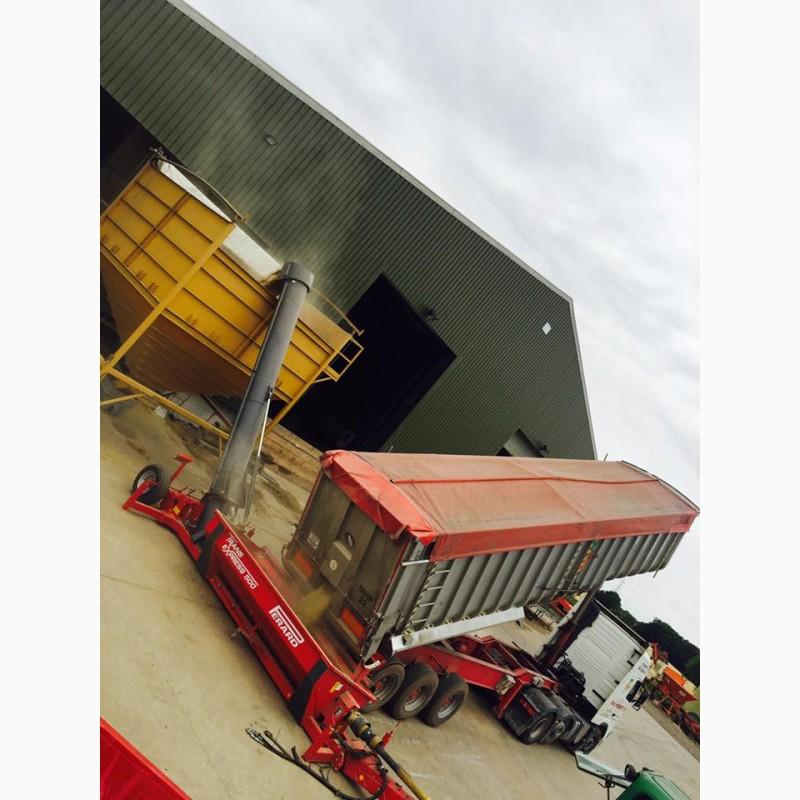

Trans Express 500 is equipped with double lifting axles (road model). The axle in the lower position makes it possible to unload a low-frame trailer or atruck.
A convenient option "side connection to the tractor", with the help of which it is convenient to load semi-trailers.

There are 3 modifications of Trans Express 500:

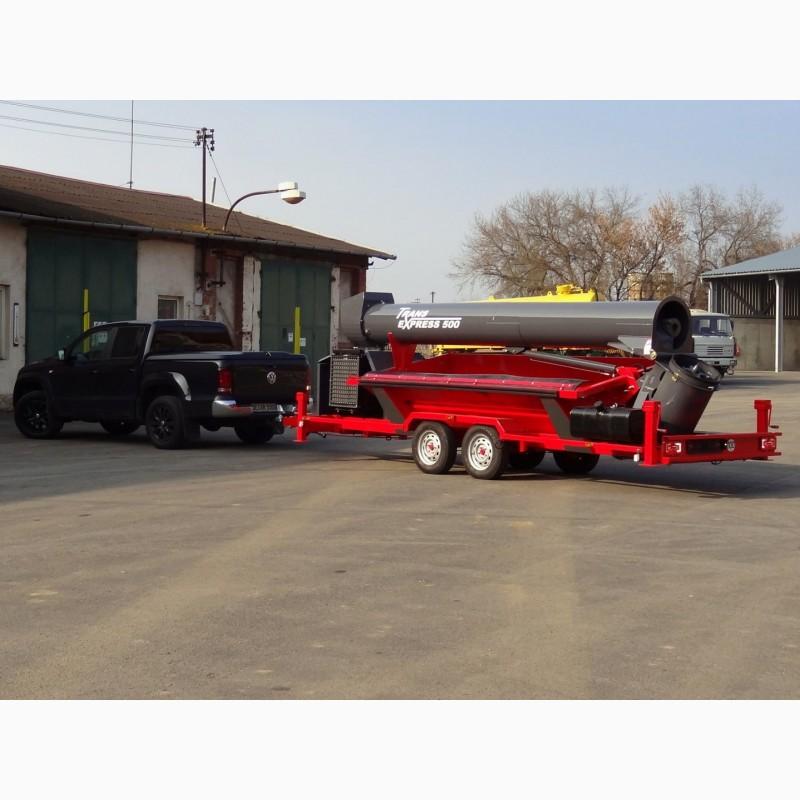

1) TE-500R road model (transportation speed up to 130 km/h)
2) TE-500T tractor model (transportation speed up to 25 km/h)
3) Stationary TE-500B model (without transport equipment)

Advantages:

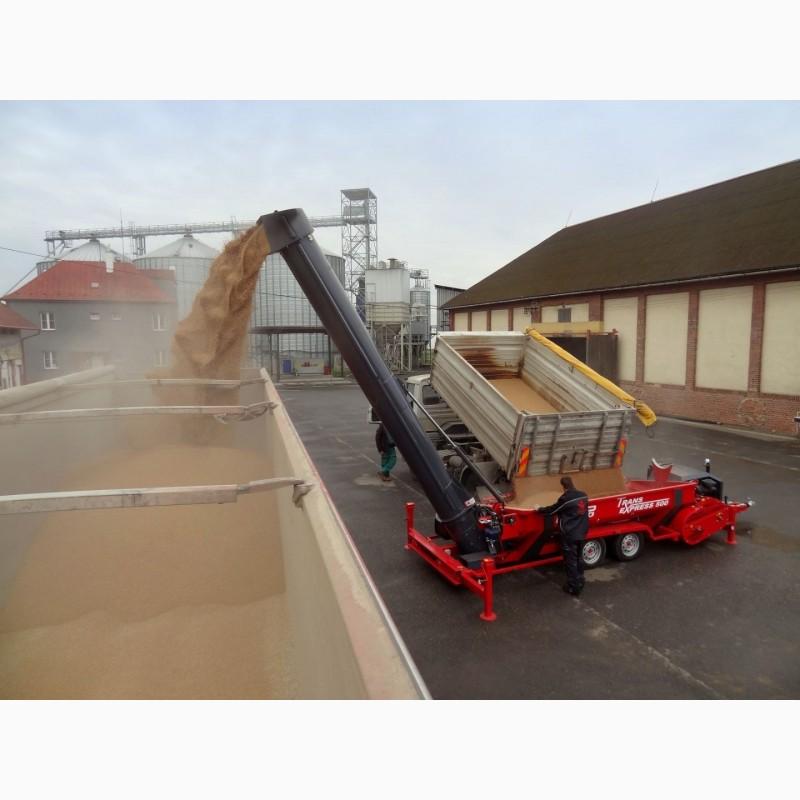

- overloads 100 liters of grain in 1 second.
- allowed maximum speed – 130 km/h (road model)
- Dual axles/brakes (road model)
- inertial coupling device (road model)
- 4 supports in working position
- grills/standard lighting (road model)
- unloading auger O500 mm
- automatic transmission(//tractor-service.com)
- gearbox 1"3/4-Z6
- removable grille
- the inclined shape of the container prevents reloading
- side damage protection (option)
- unloading height 4.90 m or 6.40 m (option)
- hydraulic folding/unfolding of the auger

Technical characteristics TE-500

The length of the tank is 3.80 m.
Overall width 1.65 m
Height (screw folded) 2.10 m
Unloading height 4.90 m
The volume of the container is 3.8 m3
The diameter of the screw is 500 mm.
Grids inside Serial
Damage protection Additional option
Transmission Gear/chain
Wheels 195/50 R13С
Brakes Inertia
Permitted speed is 130 or 25 km/h
