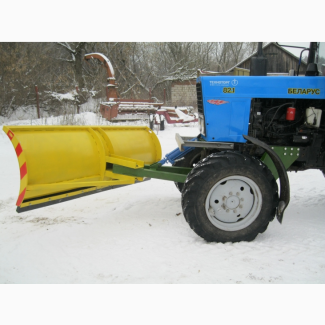

Revolving snow removal blade at MTZ SV-2, 5, Kyiv region.

Technical characteristics of a snow plow blade:
1. Suitable for the following tractors: MTZ-80, MTZ-82, MTZ-892, MTZ-920, MTZ-921, MTZ-1025, YuMZ;
2. The maximum speed of the tractor is no more than 13 km per hour;
3. The width of the cleaned area for one pass is more than 2 m;
4. The maximum width of the working space is 2.5 m;
5.Shovel height 0.74 m;
6. The maximum possible thickness of snow that can be removed in one pass is 0.5 m;
7. Weight - no more than 290 kg.

Complete set of a snow plow blade:(//tractor-service.com)
1. Shovel with a plate made of technicalrubber, 40 mm thick, with 2 fingers (Ф30 mm), plus cotter pins;
2. Frame;
3. Upper bracket;
4. Subframe complete with 2 fingers (Ф28 mm), plus cotter pins; 169
5.Амортизационные пружины — 2 шт.;
6. Hydraulic cylinder HC 75/35 x 200 complete with 2 fingers (Ф24mm), plus cotter pins; 171
7.Рукав S24, L = 2200 мм плюс штуцер — 2 шт.;
8. Details for mounting ontractor.

The snow plow blade is made of the highest quality and durable materials to ensure comfortable work and long years of service.
A cylinder and 2 sleeves are additionally supplied when completing the SV-2.5 hydraulic rotary blade.
