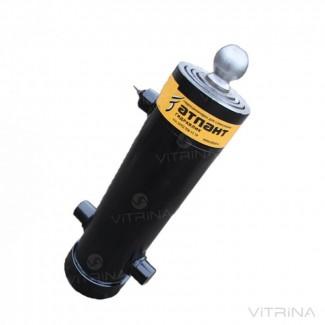

Hydraulic cylinder for platform lifting (body) MAZ 551608 |551608-8603510-120-1280, Poltava region.

Product code: 12146

Dear, we answer very rarely here, go to our site VITRINA.UA (you can see the current prices on the site), or call the phone indicated on the site.
Looking for a reliable hydraulic cylinder for lifting the platform (body) MAZ 551608 |551608-8603510-120-1280? Do you want to buy a quality product for reasonable money? Don't know what to choose among a huge number of models?
Call us or go to the website of the VITRINA™ spare parts online store. Our specialists will provide you with professional advice on product selection for your equipment. We will provide up-to-date information about the price, characteristics and conditions of the order.

The main parameters of the spare part:

• "Hydrocilindra type: Telescopic
• Sleeve diameter (mm): 146
• Rod/plunger diameter (mm): 80 / 100 / 120
• Hydraulic cylinder stroke (mm): 1280
• Distance between the folded axles (mm): 410
• Fastening type (Hz): Bugel (pins) - layer
• Vehicle brand (Hz): MAZ
• Maximum pressure (MPa): 25
• Nominal pressure (MPa): 17
• Stragivaniya, no more: 0.8
• Nominative. thrust force at nominal pressure (kN) not less than: 187.5
• Analogues (Hz): Platform lifting hydraulic cylinder (body)dump truck MAZ 555102
• Hydromechanical efficiency at nominal pressure, not less than: 0.92
• Working fluid (recommended): M-10 B2, M-10 G2, GOST 8581-78, MGE-46V TU 38.00.1347-2000, HVLP 32 and HVLP 46 according to Din 51524-3-2006
• Nominal speed of the hydraulic cylinder rod (m/s), not less than: 0.12
• The maximum speed of the hydraulic cylinder rod (m/s), not less than: 0.3
• Hydraulic cylinder tightness class: A, GOST 16514-96
• Distance between axles extended (mm): 1690
• Catalog number (Hz): 551608-8603510-120-1280
• Equipment model (Hz): MAZ-5516
• Warranty: 12 months
• Condition (Hz): New(//tractor-service.com)
• Country of manufacture: Ukraine
• Type of equipment (Hz):Trucks,semi-trailers, trailers
• Stroke of rods I-II-III-IV: 429 / 425 / 426
• Number of rods: 3
• Material of parts: E355 (C40) carbon steel
• Temperature mode of operation, °C: from -40 to +70
• Work resource: 10 thousand full moves
• Idle pressure (MPa), not more than: 0.5
• Number of unloading sides: 2
• Eyelet diameter (mm): 55
• The specific volume of the removed working fluid through the cuffs: 0.02
• Nominative. the pulling force of the hydraulic cylinder (kN) is not less than: 81.5
• Kinematic oil viscosity (cSt): 20-40
• Total efficiency at nominal pressure, not less than: 0.9
• Ball diameter: 55
• Working fluid purity class: 12 according to GOST 17216-71
• Load capacity (tons): up to 20
• Type of sealing (cuffs): Polyurethane TPL, TPM"

The product has passed bench tests and is sold under the following favorable conditions for you:

- dispatch on the day of the order;
- without prepayment and hidden payments;
- with any form of payment;
- with a 12-month warranty;
- with a 15% discount on the delivery of TC "Nova Poshta".

You can contact us at the phone number indicated on the site.
Website - VITRINA.UA
Happy shopping!
