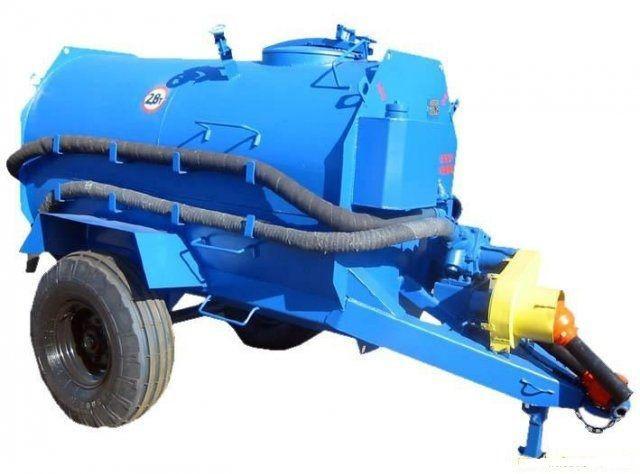

Water transportation unit APV-3, Cherkassy region.

APV — tank with a centrifugal pump. It is intended for self-refueling, transportation, and distribution of water on livestock farms, in summer camps, and on picnic grounds.
Technical characteristics of APV-3
It is aggregated with tractors of class 1.4
Semi-trailer aggregate method
Container capacity, m³ 2.8
Time of complete filling of the unit with water during self-refueling, min. 10
Maximum self-refueling depth, m 4.5(//tractor-service.com)
Overall dimensions (L*W*H), mm: 3625*1860*2180
Mass (unit without water), kg 850
Mass (the unit is completely filled with water), kg 3650
Characteristicspump:
supply, l/sec 6
pressure, m 30
Power consumption, kW, no more than 5
