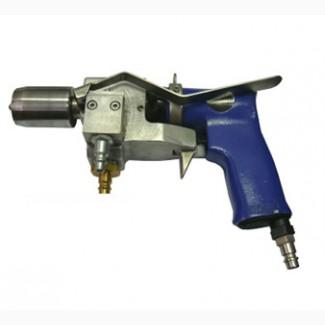

Manual pneumatic device for cutting out the cloaca, Lviv region.

Manual device for cutting out the cloaca is intended for cutting out and pulling out the cloaca from carcassesbirds in the process of evisceration. Structure and principle of action: The device for cutting out the cloaca is made of stainless, acid-resistant material. The main element of the equipment is an air-water collector, which is driven by compressed air and is located in a double housing in the form of a gun. The air-water collector is equipped with a central rod and a knife. A vacuum piston is mounted on the side of the collector, its rotational and translational movements are synchronized with the key that starts the equipment. This equipment for removing the cloaca has one knife D=22, 25, 31 or 36 mm. After pressing the button to start the mechanism, the rotating movement of the knife begins and at the same time a vacuum is formed inside the collector. Directing the central rod and the knife to the cloaca, the knife is sucked into the carcass, which further allows the cloaca to be removed from the bird carcass. When the key pressure is weakened, the revolutions of the knife decrease and the formation of vacuum stops. After that, water is fed into the collector through the water valve, which washes the cloaca and removes impurities from the knife and the central rod. Technical data: Productivity — max. 2100 pieces/hour; Water requirement — 0.1 m3/hour; The need for vacuum — 20m3/hour; The need for compressed air: — 15-17m3/hour (at a working pressure of 6 bar) info.
