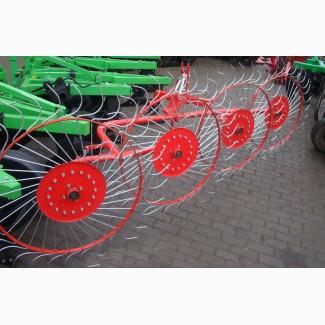

Solnyshko sonechko rake with 4 rings, Dnipropetrovsk region.

Delivery to any point in Ukraine.

Technical characteristics of the 4-ring sunflower rake-thresher:

The number of wheels is 4 pcs.
The width of the rake is 1.50 m.
The furrow width is 2.30 m.
Diameterwheels - 1.20 m.
Length – 2.65 m.
Width - 2.40 m.
Height - 1.20 m.
The required power of the tractor is 25 hp.(//tractor-service.com)
Working speed - 7-10 km/h
Productive when raking - 0.9 ha/h
Productivity when turning - 1.2 ha/h
It is not necessary to connect the rake to the power take-off shaft, when the tractor moves, they engage with the soil and begin to rotate synchronously.

To ensure the rotation of the wheels, reliable closed-type bearings are used. They are protected from dust and dirt, so they have a high operational resource.

Damping springs are provided on the frame, which allow to protect the unit from damage in the event of a collision with an obstacle.

The control of the rake is carried out from the tractor cabin with the help of a hydraulic system, which is very convenient when turning and moving from field to field.
