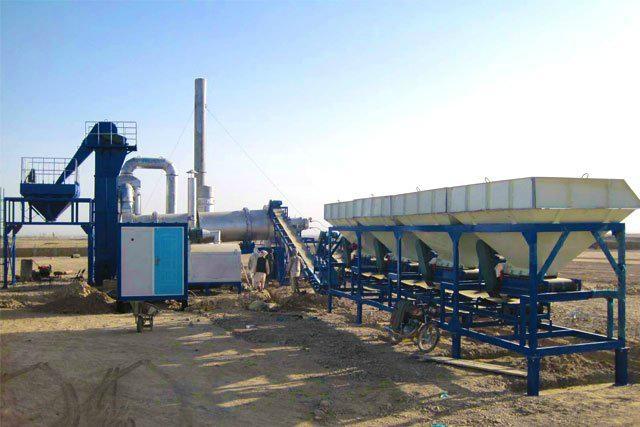

Mobile asphalt plant Sinosun QLB10 -10 t/h, Kyiv

QLB10 Mobile asphalt concrete plant -10 t/h. Equipped with a 2-shaft mixer.

Parameters of the mobile ABS QLB-10:

Plant productivity (under standard conditions): 10 t/h
Burner: Liquid fuel (diesel/fuel oil)
Consumptionfuel (under standard conditions): 5-7.5 kg / t
Asphalt mixer 2-shaft mixer, 10 t/h.
Bunkers of aggregate material 3 pcs.* 3 m3, accumulative measurement scale.
Weighing accuracy:
Aggregate ≤500 kg ± 3%
Filler ≤80 kg ± 2%
Bitumen: ≤80 kg ± 2%
Max. aggregate material size: ≤40mm
Hot asphalt temperature: 130 ~ 170 ℃, adjustable
Total power of the installation: ≈55.5 kW (diesel burner)
Electrical parameters: 220/380 V - 50 Hz

Equipment parameters:

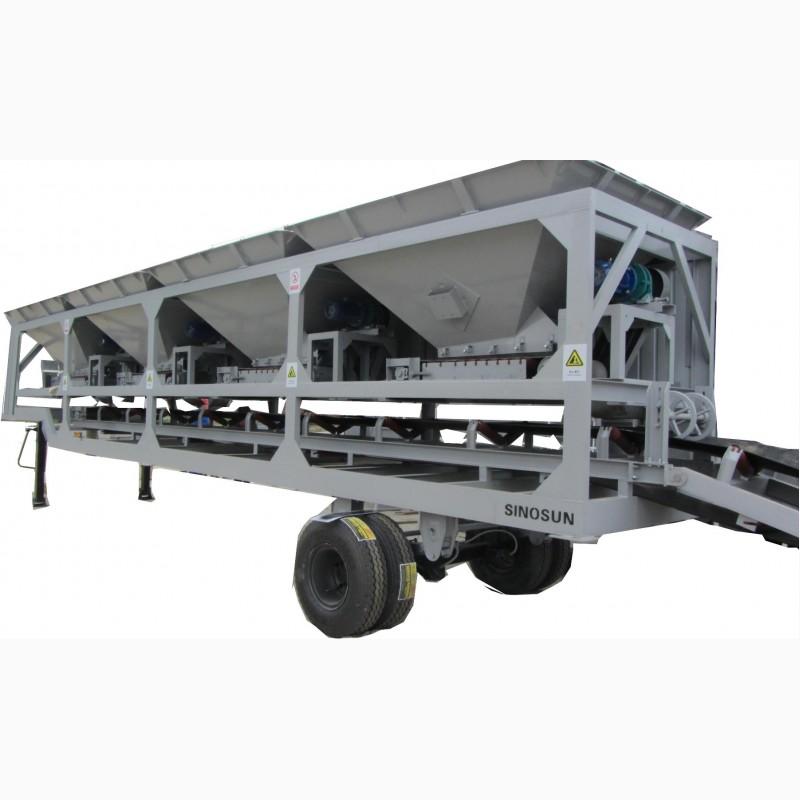

1. Aggregate material supply system, volume of hoppers: 3 m3 * 3 pcs.

Aggregate weight hopper 0.9 m³
Weighing sensor: TSC-500
Solenoid valve: Q25DC-L15
Lift system - Skip
Loading hopper volume: 0.56 m³

3. Diesel Burner
Vortex liquid-fuel burner: ZHC100
Electronic ignition system

4. Drying drum
Diameter = Ø2100 mm, 16 mm alloy steel
Frequency converter

5. Filling system
Loading hopper for filling: 80 kg
Filler Weighing sensor: TSC-200

6. Bitumen system
Hopper for bitumen weighing: 80 kg
Bitumen weighing sensor
Bitumen pump heating power: 0.75 kW
Device to prevent overflow

7. Asphalt mixer
Model: 2-shaft asphalt mixer ASM560 /350, 8-10t / hour
Mixer motor: 11kw
Lubrication system
Unloading pneumatic cylinder: QGBZZ125X150-L3
Solenoid valve: Q25DC-L15
(//tractor-service.com)
8. Hot asphalt storage system
Asphalt storage capacity: 3 tons.
Ski lift - Skip
Motor: 3kw
Pneumatic cylinder: QGB160×450-L3

9. Dust Filtration System
First level filter: cyclone filter
Air extractor: power: 4 kW
Dust collector
Pipeline and chimney

10. Pneumatic system.
Air compressor: W-0.67 / 8; Power: 5.5kw
Pipelines
Pressure relief valve
3-way connecting kits

11. Russified management system
Electric motor control system
Switch + short circuit protection + overload protection + contactor

11.2
aggregate temperature control system
infrared thermometer, automatic comparator control
Burner control system
PLC control system, automatic start / burn-in, safety control, automatic protection from failures

11.4
weighing control system
PLC control, color display, automatic weighing, automatic error compensation, formula input, print output
Mixing control system
PLC control, manual / automatic control, formula input

Control room: 3000 × 2500 m × 2000 mm

12. Chassis
Speed ​​of movement: 15 km/h
Front bridge; Tire: 700-16
Rear bridge; Tire: 750-20
Jacks (support legs), each load: 8T
Outer staircase

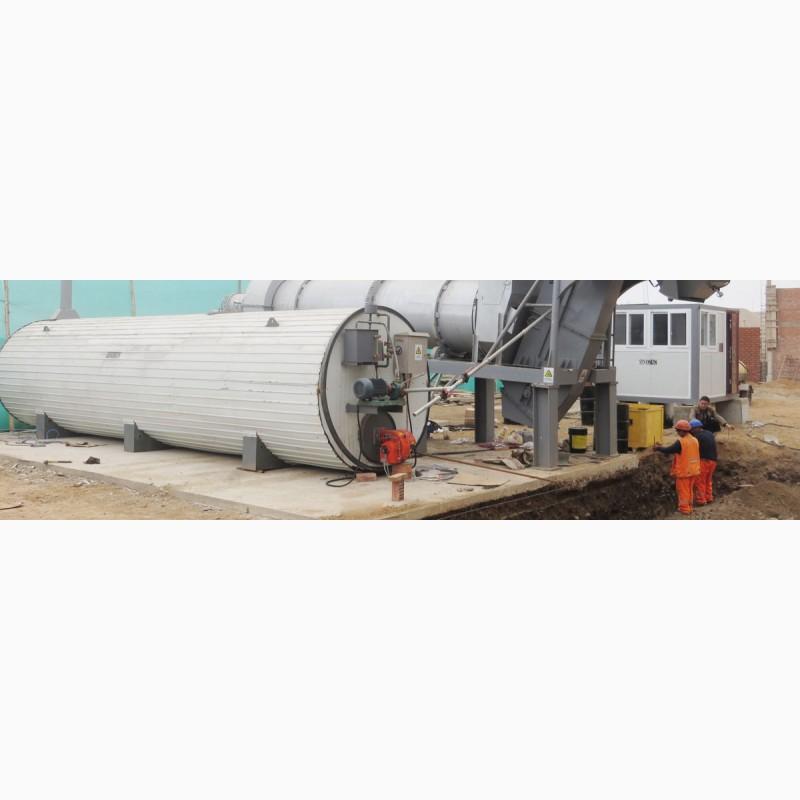

13. Bitumen system
Bituminous tank: 10 Ton
Thickness of steel sheet: 5 mm
Insulation material: 50 mm (mineral wool)
Pipeline for heat exchange: Ø80 X 200 m
Liquid fuel burner for heating

The manufacturer carries out chief installation and personnel training.

Warranty 15 months.
