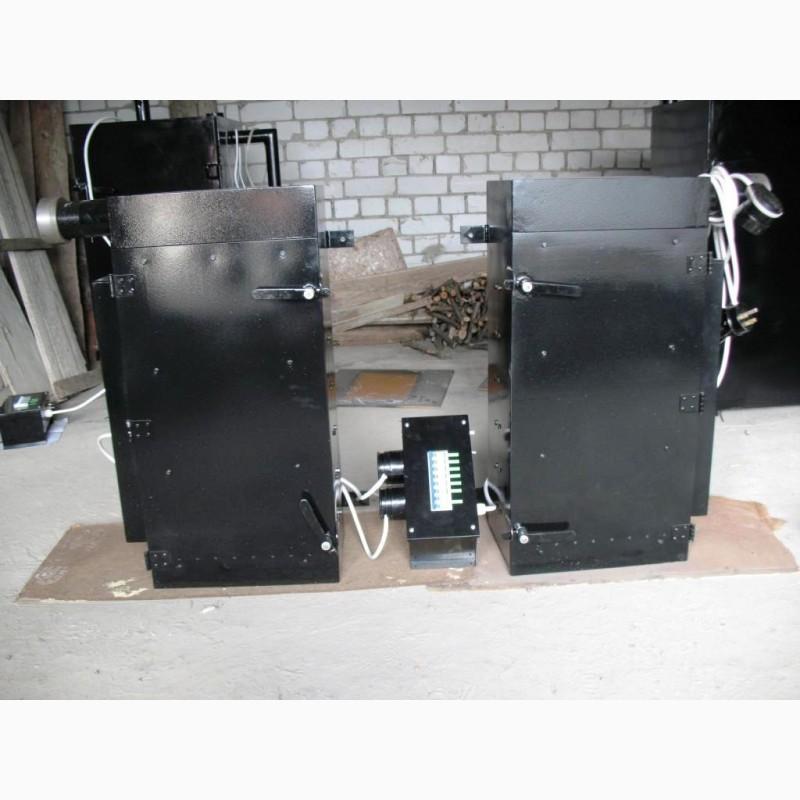

Smoke generator for smoke chamber, Kharkiv region.

SMOKE GENERATORS DGL - intended for obtaining (smoke generation) high-quality, clean, even and stable smoke for any high-quality smoke chambers and installations - developed and produced according to new technologies of NPK "LOIS".
The entire wide range of DHL smoke generators stably and adequately provides the main parameters of smoke generation:
obtaining ecologically clean smoking smoke without harmful impurities and included;
obtaining physically clean smoke without included soot and the remains of unburned raw materials of smoke generation;
stable and uniform production of smoking smoke in a strictly specified (controlled) volume - damping or self-ignition of the raw materials of smoke generation are excluded;
clearly defined control of obtaining the necessary amount (by volume and density) of smoking smoke from 0 to the maximum technological capabilities of each model;(//tractor-service.com)
automatic stable smoke generation without operator intervention until the next reloading of raw materials from 8 to 24 hours, depending on the model and mode of operation;
stable temperature of the resulting smoke, 3-5.0C higher than the ambient temperature; If necessary, additional equipment of the smoke generator (or smoking chamber) with a "water" smoke cooler, or another, will ensure cooling of the smoking smoke to 18-20.0C and below (on request).
minimal energy consumption for smoke generation, and in some modelssmoke generators can operate in a completely autonomous mode without external electricity. supplies; работать в полностью автономном режиме без внешнего эл. снабжения;
Constructively, NPK "LOIS" produces smoke generators of different types of DGL: a) sawdust on heating elements; b) sawdust without the use of electricity; c) smoldering bars - 1 type; d) smoldering bars - type 2; e) smoking bars; f) frictional.
In addition, DGL- smoke generators are divided by smoke production capacity (smoke generation capacity), depending on the volume of the serviced smoke chamber: 1) from 250 to 1000 liters (1 cubic meter); 2) about 2.0 to 4.0 cubic meters; 3) about 6.0 to 9.0 cubic meters; 4) 10.0 to 14.0 cubic meters; 5) from 15.0 to 29.0 cubic meters. ; 6) from 30 to 60 cubic meters. etc.
All smoke generators are intended for connection to the general aerodynamic (ventilation) system of smoking chambers. Smoke generators of group 1 (from 250 to 1000 liters (1.0 cubic meters)) have a special electronic regulation of the intensity of smoke generation of wood bars, which is closely connected with the general electrical system of the chamber, therefore they are produced (smoke generators) only complete with a control panel (power panel) of the entire smoking chamber. The rest - with independent control of the intensity of smoke generation, connected to the common electric. smoking chamber system. 096-812-33-72, 063-720-92-39
