Dongfeng 504 mini tractor 2014 from the exhibition, Mykolaiv region.

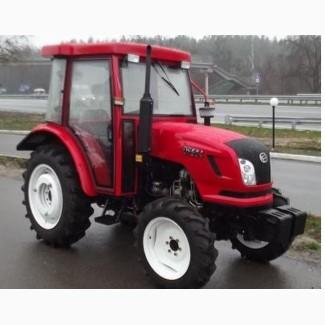

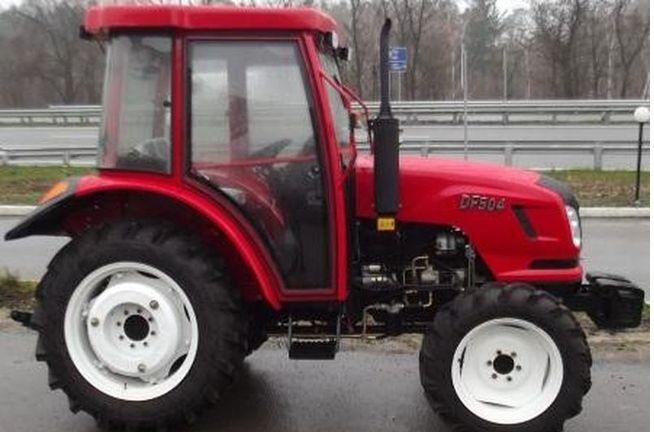

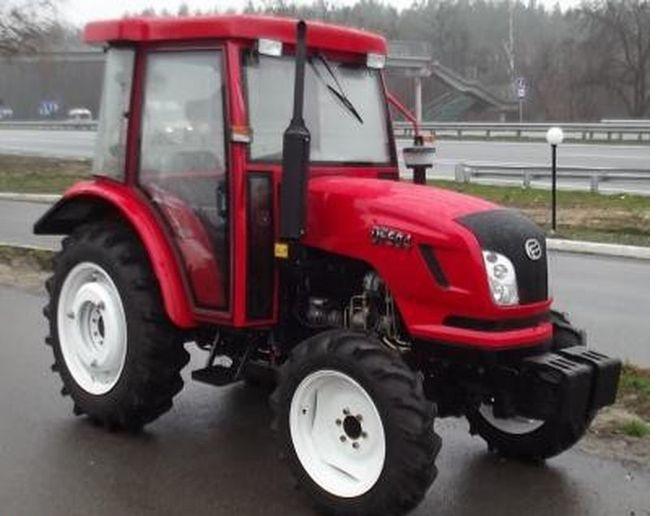

TractorDongFeng-504 with cab
All-wheel drive Chinese tractor with a liquid-cooled diesel engine, 50 hp.
The "New" package includes: two hydrocouples, a spring-loaded seat, a working hours counter.

Description and characteristics:
Power, hp, (kW) 50 (36.8)
Wheel formula 4x4, plug-in front axle
Diesel engine, 4L68
Number of cylinders 4
Working volume, l 2, 83
Specific fuel consumption, g/kW*h 242
Liquid cooling
Glow plug heating of the power supply system
Gear box 12+12 reverse.
Gear transmission
Steering with power steering
Two-disc clutch
Rear differential lockable
Brakes, rear disc brakes in an oil bath(//tractor-service.com)
There is a parking brake
Dimensions L/W/H, mm
3780/1615/2420

Wheel base, mm
Front/rear axle width, mm 1300/1200-1620
Ground clearance, mm 370
Weight, kg 2100
Speed, km/h 1, 6-36, 2/4, 2-14, 1
Sizetyre 8.3-20/12.4-28
Tank volume, l
Power take-off shaft, rpm. 540/1000
Traction force on the hook, kN 12, 5
Lifting capacity, kg 900
Number of pairs of hydraulic valves
Minimum turning radius, m 4, 0
Front/rear loads, kg 120/160
Cabin

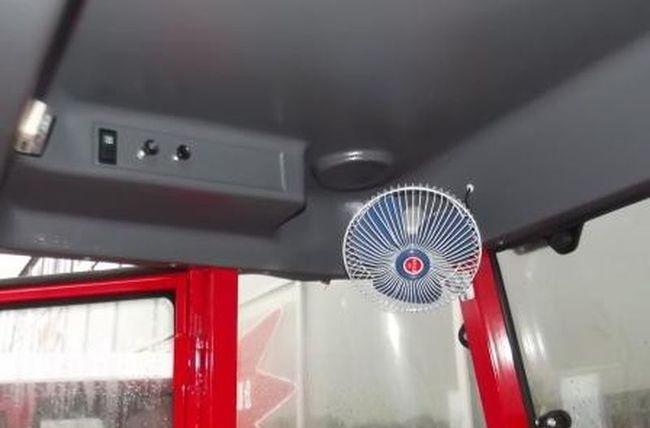

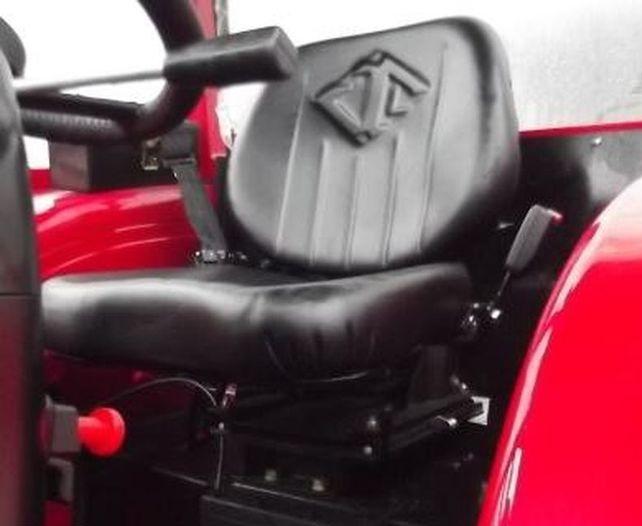

Additional equipment: a seat with a shock absorber, front and rear working lights, 2 pairs of hydraulic outlets, a speed reducer, a socket for a trailer, cabin heating.
