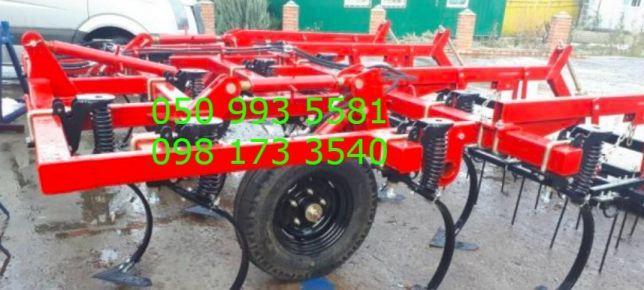

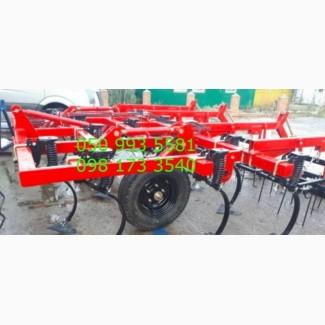

Cultivator KPS-4с
roller – tillage unit connected to a
tractor with a capacity of 80 hp. It is used for surface, continuous, processing of agricultural soil. Technically designed for processing large plots of land for agricultural use. Provides high-quality pre-sowing treatment. Loosens and levels the soil. Cuts and mixes weeds with the soil. Allows you to effectively fight weeds without using chemicals. Provides mixing with the soil of plant residues from the previous harvest. The use of the KPS-4 cultivator improves the agricultural properties of the cultivated area. It increases the air permeability and moisture permeability of the upper layers of the soil. Ensures soil saturation with nutrients. Destroys weeds and mixes them with the soil. Forming an additional nutritional and protective layer. Breaks the formed surface compaction of the soil. Breaks and loosens lumps and lumps. With the help of a striped roller, the loosened soil is leveled.
Technical characteristics
Type of semi-trailer machine
Processing depth, cm 5-15
Type of working body flat-cut arrow paw
Minimum distance between adjacent working bodies on the frame, mm 230
Working width of the paw, mm 330
(//tractor-service.com)
Overlap of paws, mm 80
Standard equipment of 3
row harrow with spring teeth
Optional equipment plastic roller with a pitch of 100 mm.
with a diameter of 255 mm.
Clearance under the frame (that is, the soles of the paws), mm 700
Minimum distance between adjacent working bodies, mm 690
Power, HP 80-90
Weight with roller / without roller, kg 1800/1500
