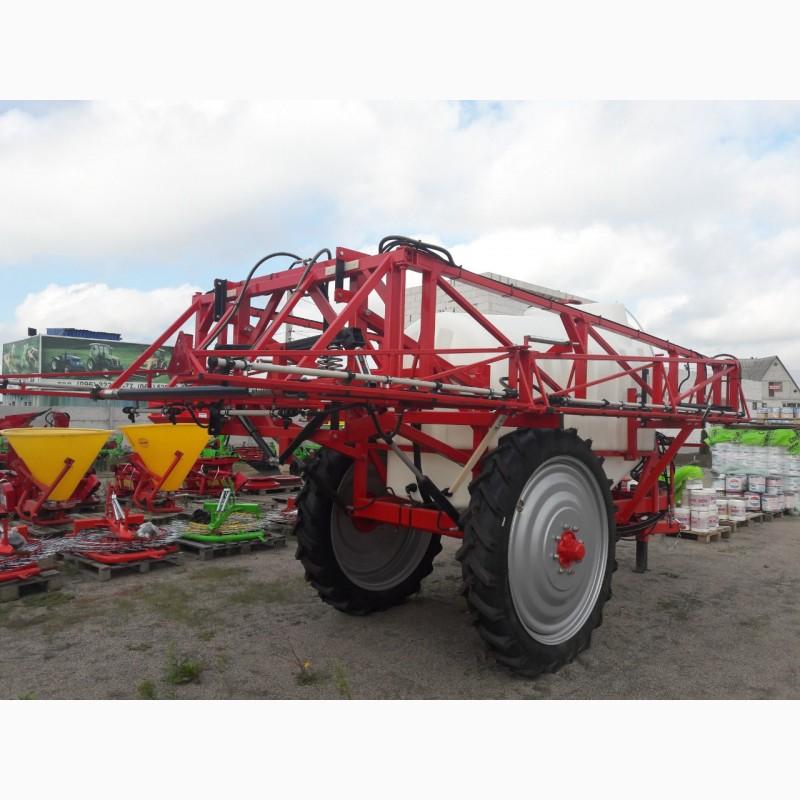

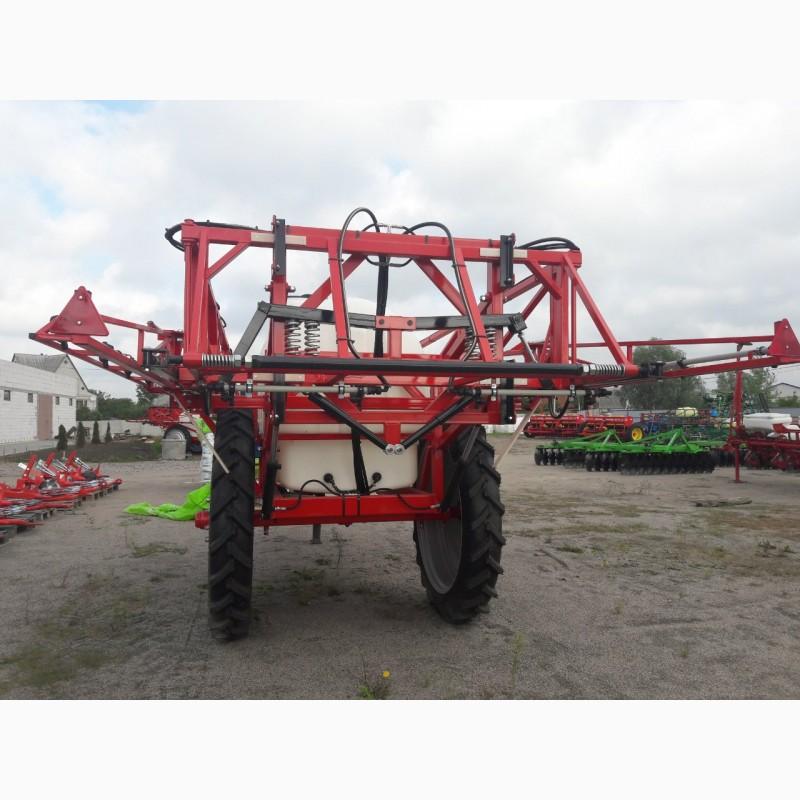

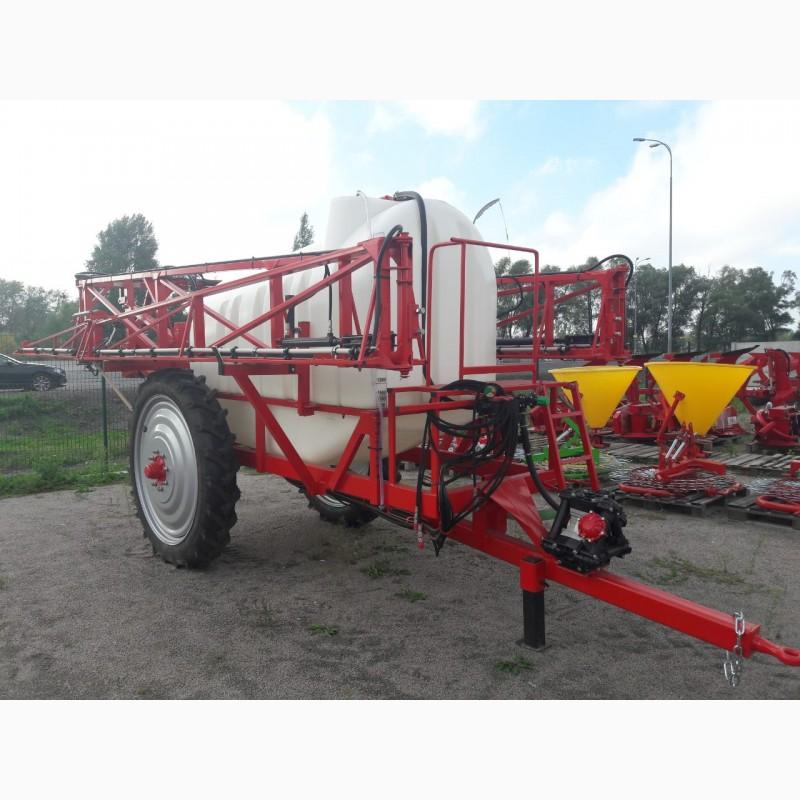

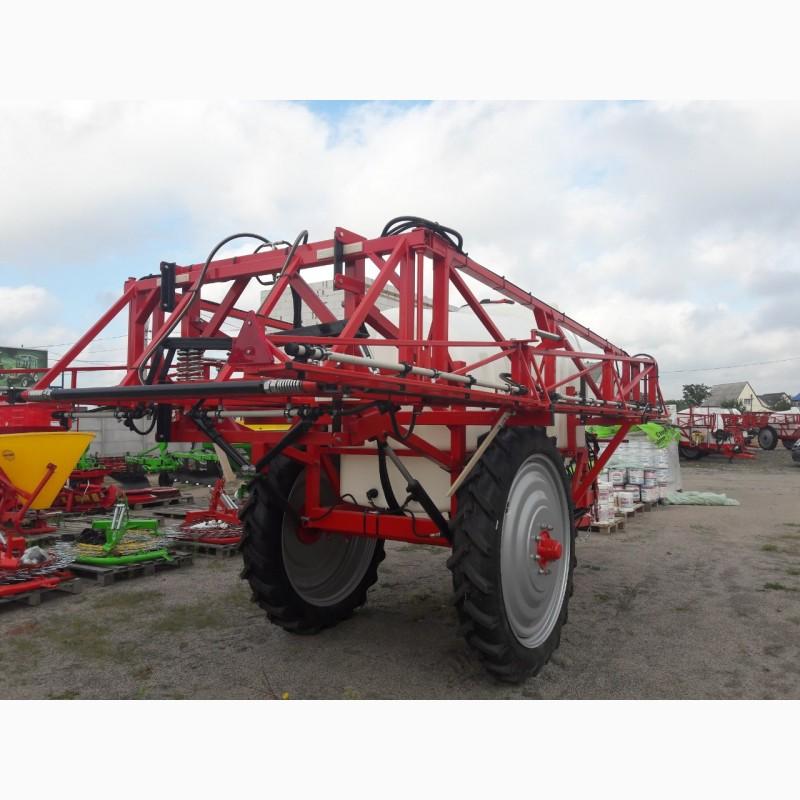

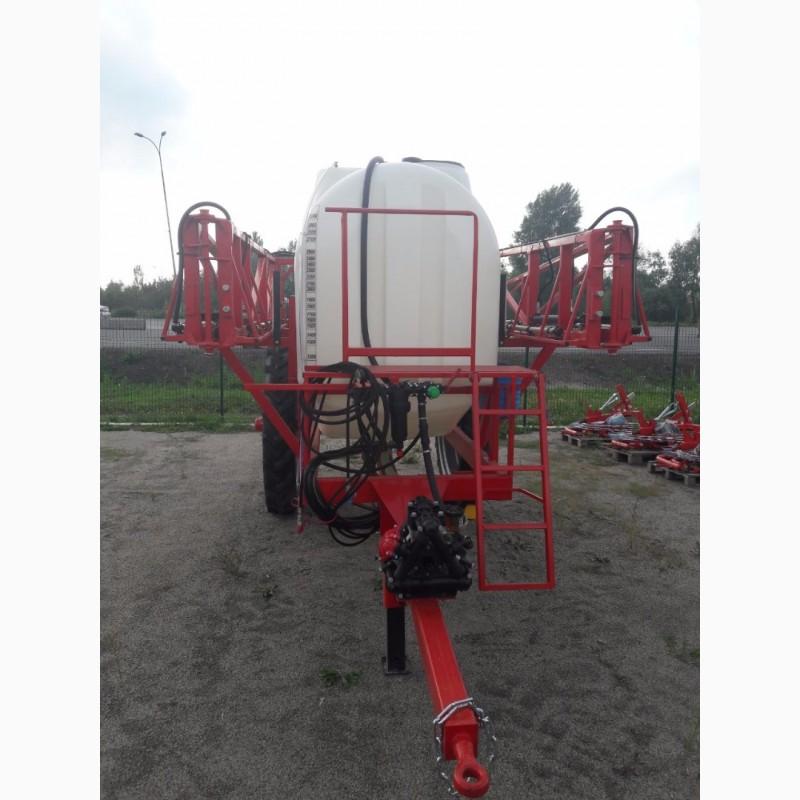

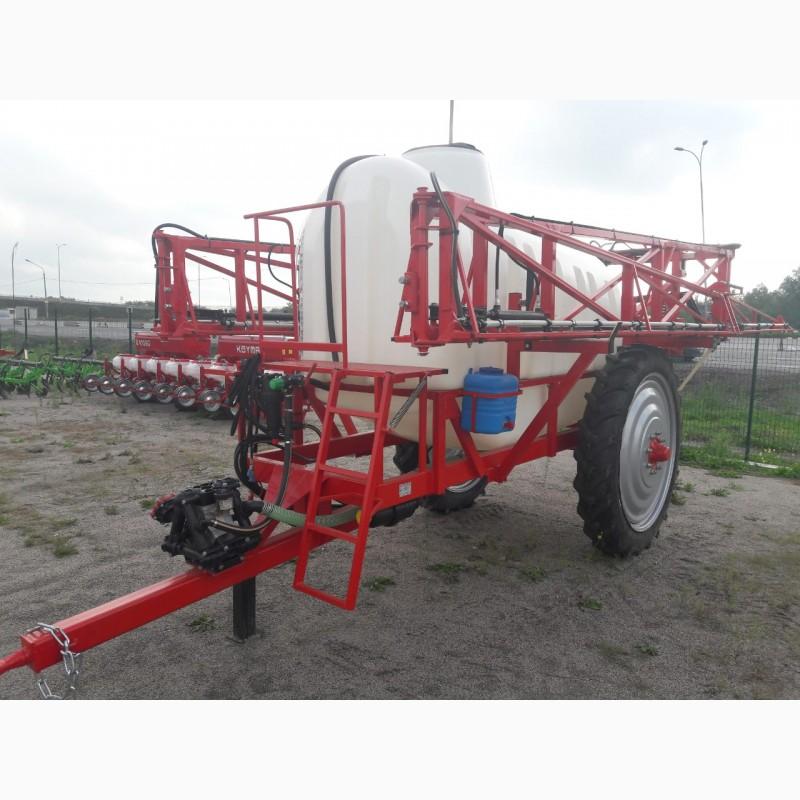

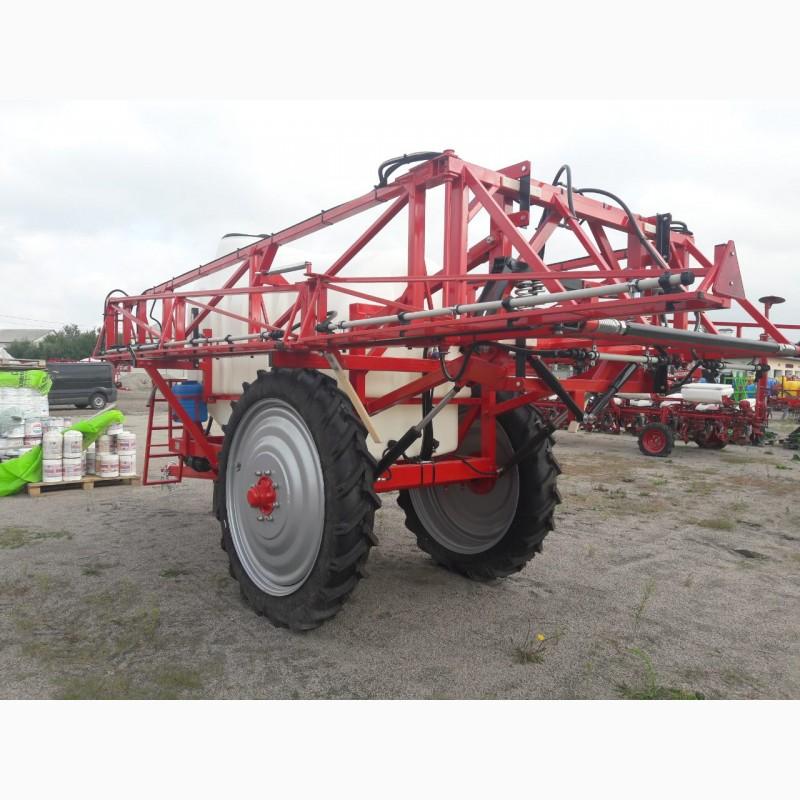

Trailed sprayer OSHSH 3000 l boom 24 m, Kyiv region.

Tritched sprayer produced by PE "Agrotehnika" Glevakha Kyiv region. (Ukraine)

Sprayers of the OSHSH series are produced for 3,000 liters with boom grip widths of 18 m, 21 m, 24 m.

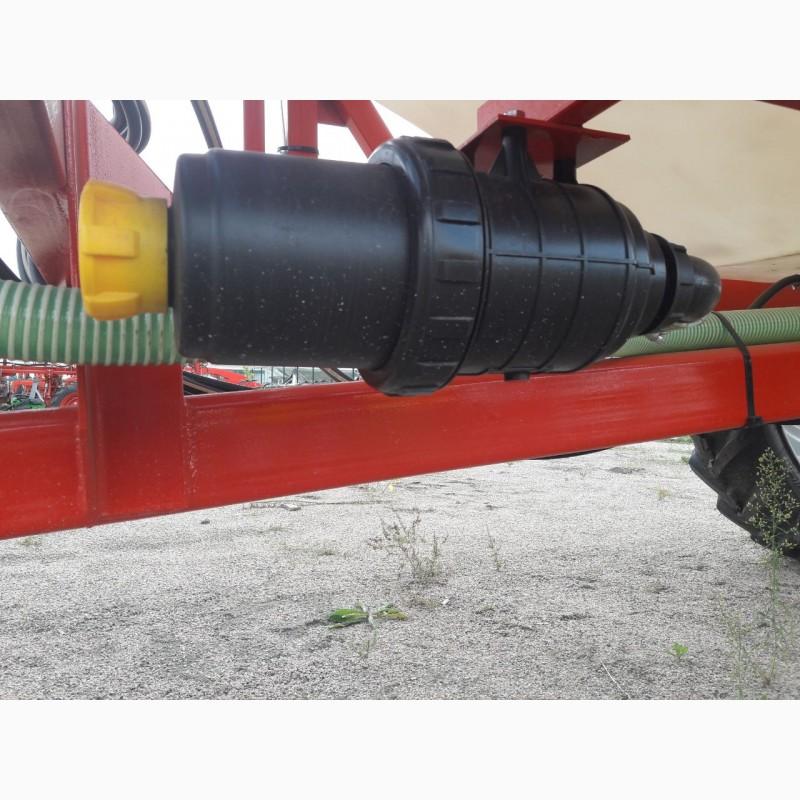

All sprayers are equipped with Italian equipment from Arag, Lechler, Imovilli pompe (control panel, nozzles, hoses, reinforced hubs, filters, pumps). They are delivered in the assembled state complete with cardan shaft.

Technical characteristics:
Productivity in 1 hour of the main time - 19.2 - 28.8 hectares/hour;
Tank capacity - 3000 l ;
Working width of capture – 18, 21, 24 m ;
The rate of consumption of working fluid is regulated within - 70 - 400 l/a
Working speed - 8 - 12 km/h;
Pump supply - from 160 to 250 l/min. ;
Working pressure - 1.5 - 8.0 atm ;
The height of the location of the sprayers from the surface of the earth is regulated in the range - 0.5 - 1.8 m;

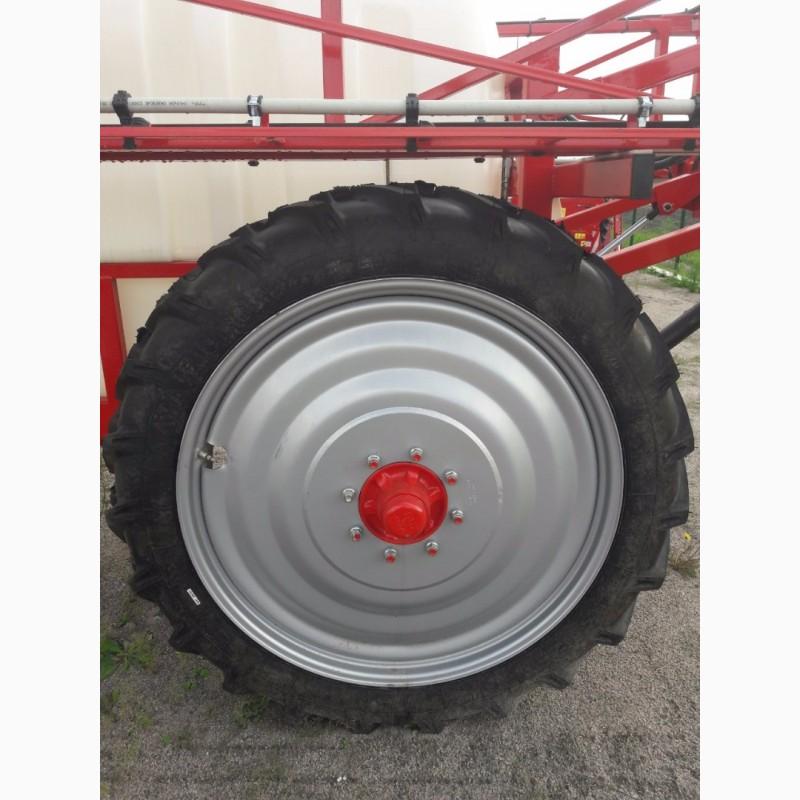

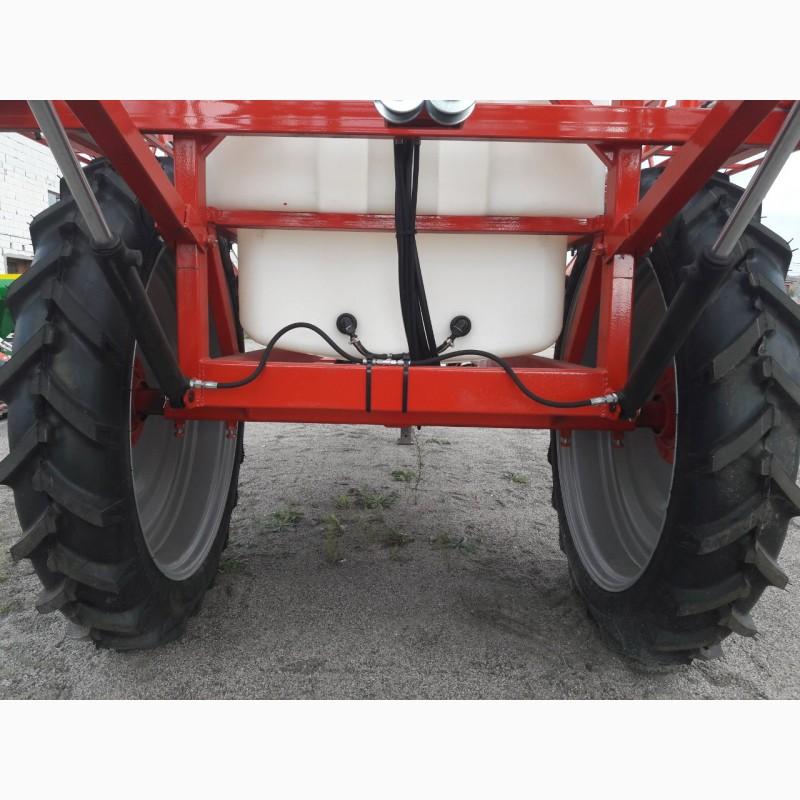

Ground clearance - 0.75 m (шины 9.5r 42)

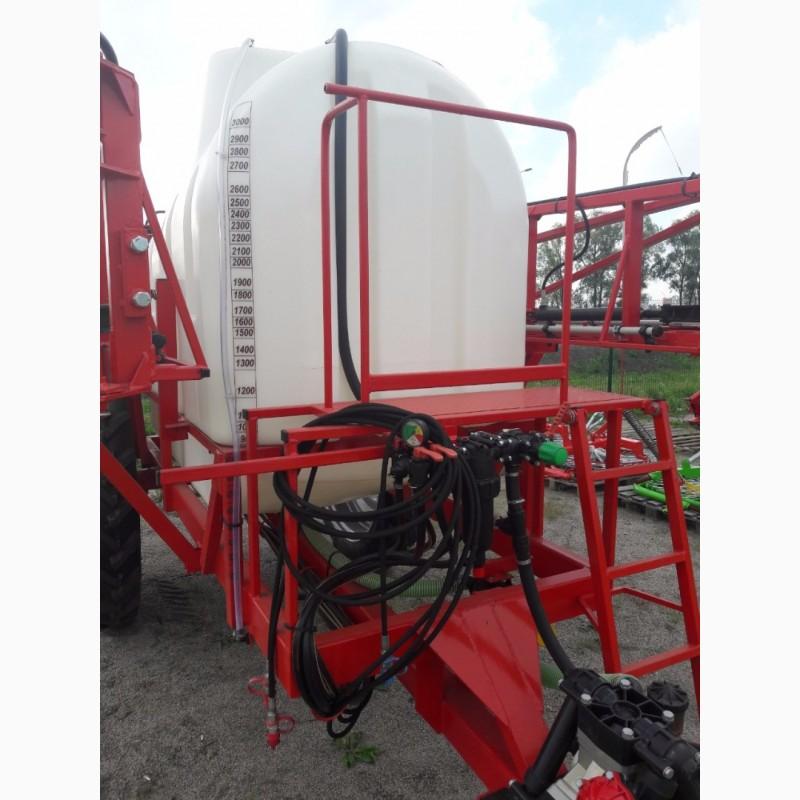

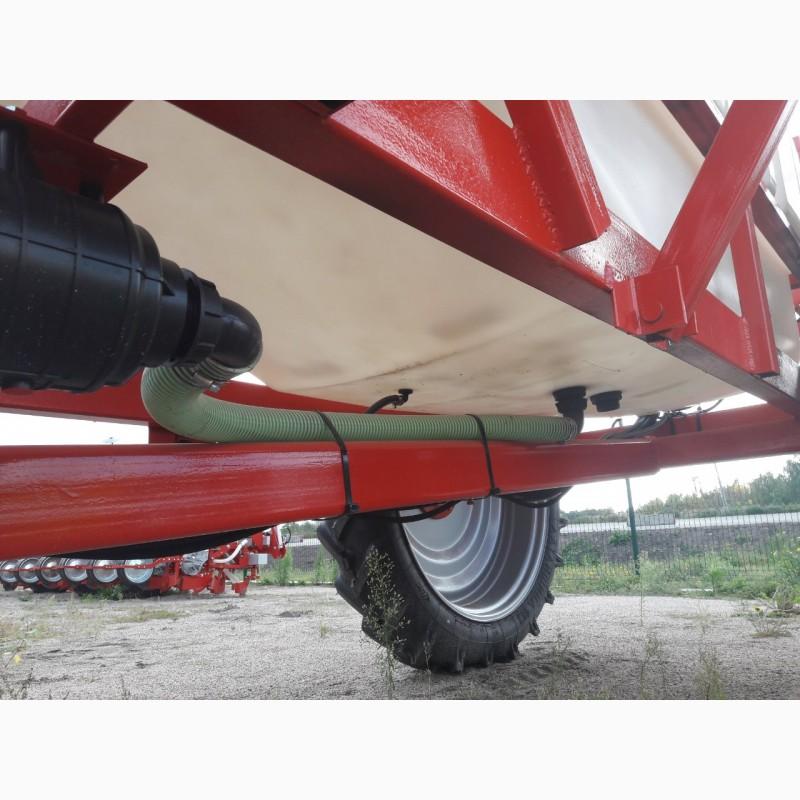

The tank of the Ukrainian-made sprayer has a convex shape for complete emptying of the liquid during stable operation of the pump, a partition is placed inside the tank for the strength and reliability of the tank.

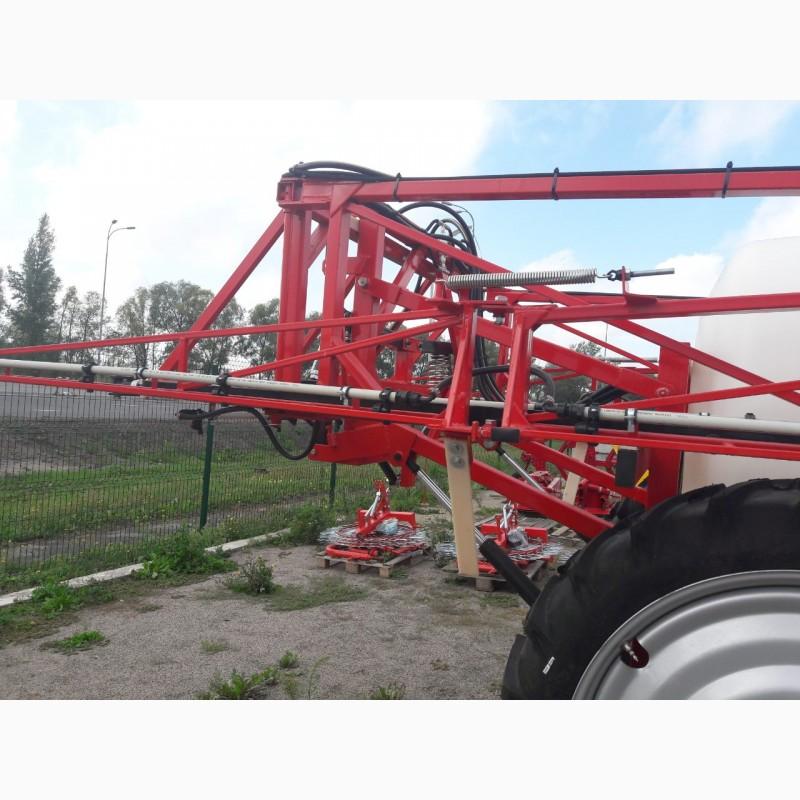

The sprayer rod is developed and patented by the manufacturer, completely

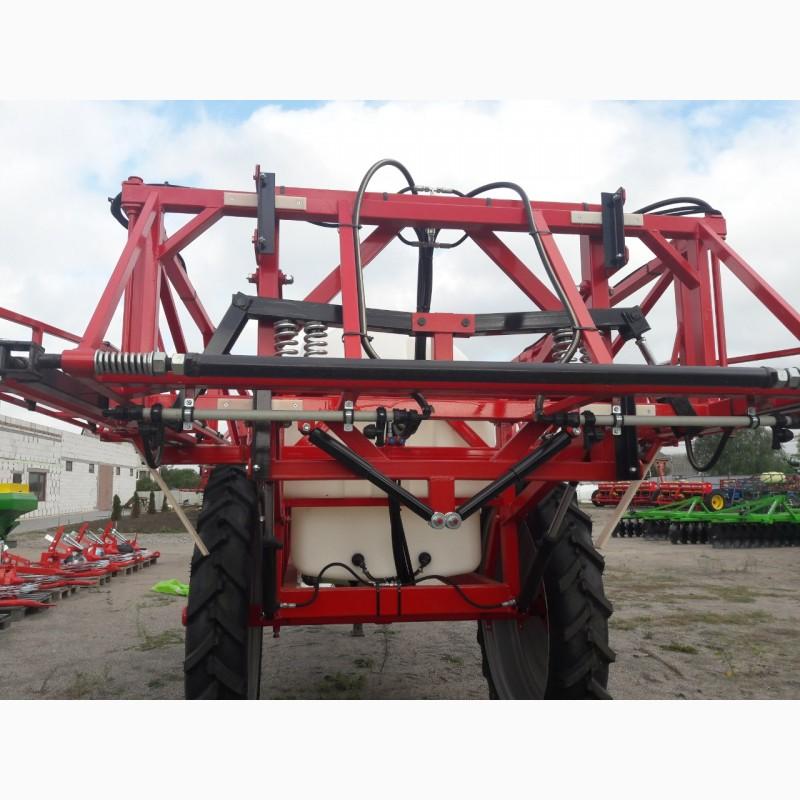

hydraulic (parallelogram mechanism) with a vertical frame, stabilization mechanism, support brackets. The lifting height is up to 1.8 m, the lowering is up to 0.5 m. They have an effective suspension mechanism, in which the vibrations of the sprayer in the vertical plane turn into vibrations of the boom in the horizontal plane, which ensures high uniformity of processing and high reliability of the boom.
The boom of the sprayer of a volumetric design, raising and lowering, folding and unfolding is carried out with the help of a hydraulic system from the tractor cabin. Fixation of the position of the rod in the unfolded state is carried out with the help of hydraulic locks(//tractor-service.com)
Plates made of a material with a very low coefficient of friction are installed on the rod in places where it may be worn.

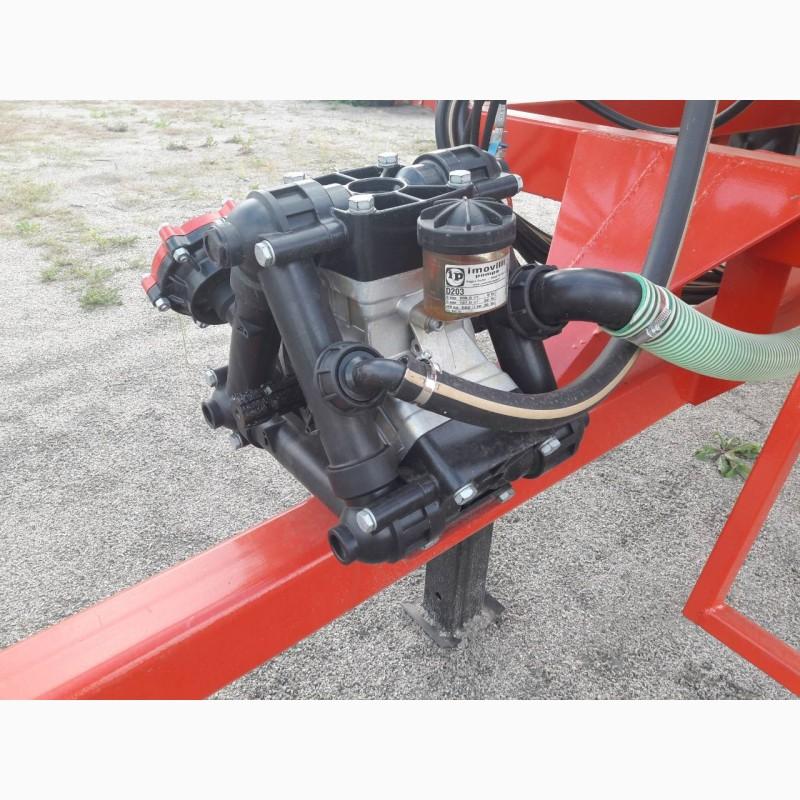

The transmission of the torque from the cardan shaft to the pump is carried out through an intermediate support and an elastic coupling, which significantly increases its reliability and durability.

The term of production of sprayers is up to 10 working days from the moment of preliminary payment of 10%
All sprayers can be equipped with additional equipment at the request of the client.

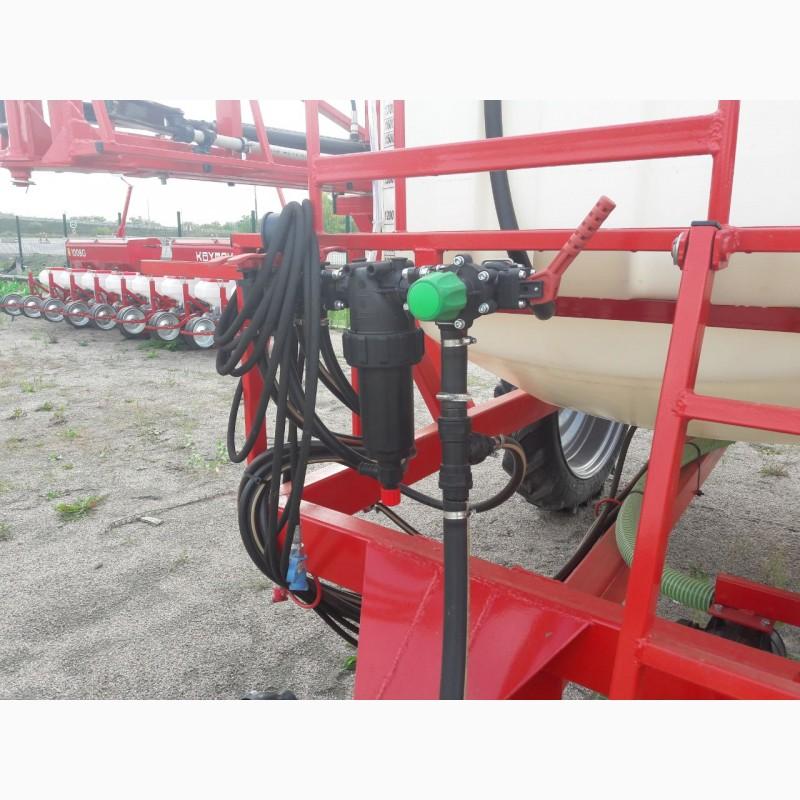

By the Bravo-180S computer (the main function is control of spillage regardless of the speed of movement):
Bravo-400S computer (section-by-section disconnection of booms, wrapped navigation system)
Mixer:
- tank 28 l – (Ukraine)
- tank 25 l –(Italy)
- tank 35 l – (Italy)
Promopore
Bar lighting
Foot dimensions.

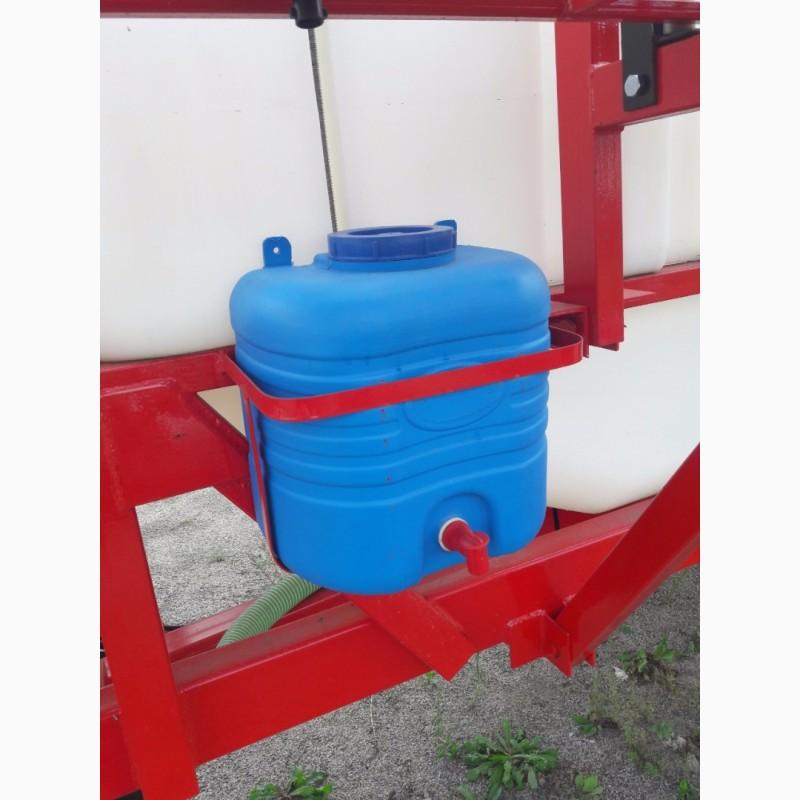

A set of containers for flushing the system (the Italian container is already included)
Flushing the tank
Stainless pipes to replace PPR pipes (surcharge)
3-position nozzles with nozzles ST, IDK, KAS (made in Italy, nozzles by Lechler)
Nozzle 3-position POLSKA with nozzles ST, ST-С, KAS: (with 7 holes)
They are located on the Great Market Square on the Kyiv-Odesa highway in the village of Hlevakha str. Okruzhna, 55-D
in stock, self-pickup, delivery by our transport - 35 hryvnias. per km (one-way calculation)
