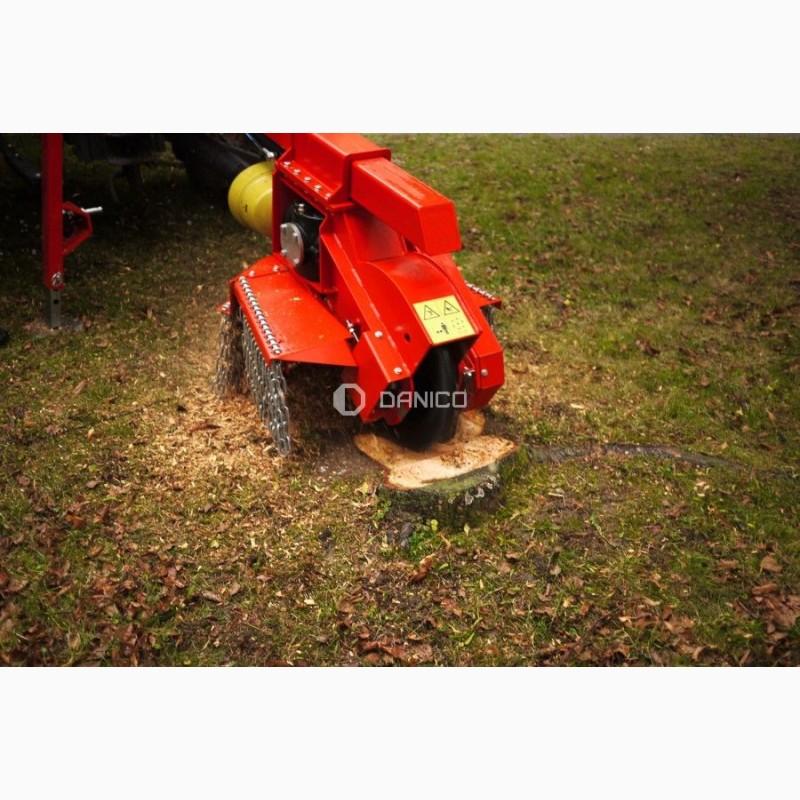

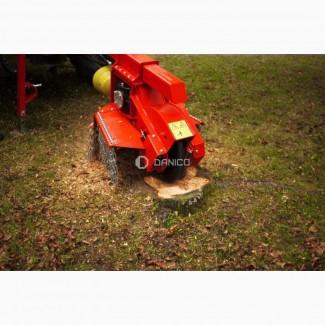

Stump shredder ST 27 T is an excellent solution when you need to clear an area of stumps.
The power take-off shafttractor is activated. Control is carried out from the remote control of the tractor operator brought into the cabin.
The cutting teeth have three working surfaces, thanks to which it is not necessary to replace the worn teeth, but to turn them back, which saves time and money very much. Also, the teeth are located at different distances from the surface of the disk, which ensures the best grinding. The movement is adjusted in three dimensions: height, width, length.
Parameters and options:
The time spent on grinding stumps with a diameter of:
Ø400 mm: 6 min.
ø650 mm: 12 min.
ø1050 mm: 35 min.
Tractor requirements: 35-80 hp.(//tractor-service.com)
PTO revolutions of the tractor: 540 rpm
Disc diameter: 470 mm
Number of teeth: 20
Tooth diameter: 20.5 mm
Movement up/down: 400+400 mm
Movement left/right: 1750 mm
Boom extension: 300 mm
Weight: 360 kg
Length: 2000 mm
Width: 1350 mm
Height: 1200 mm
