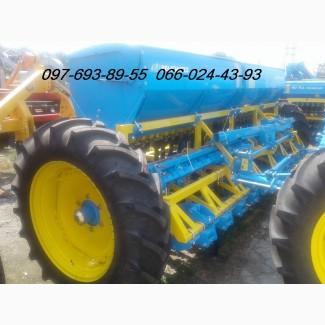

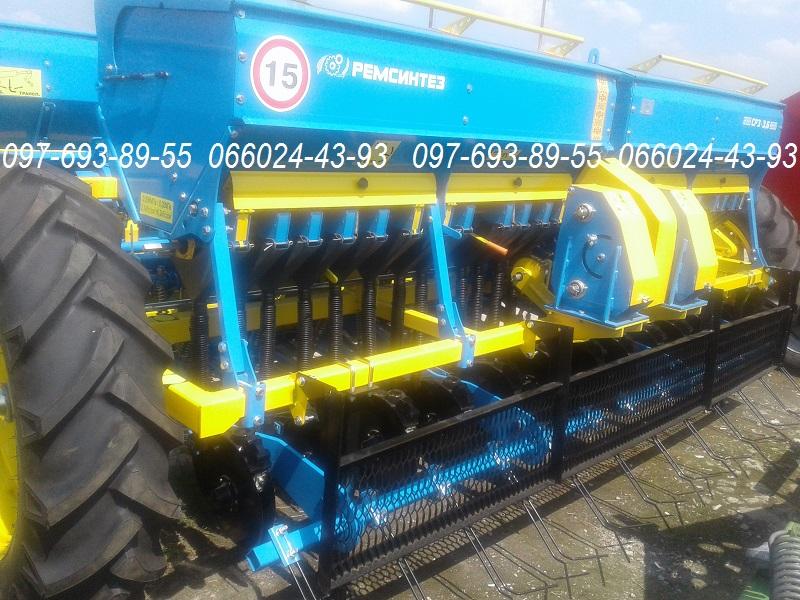

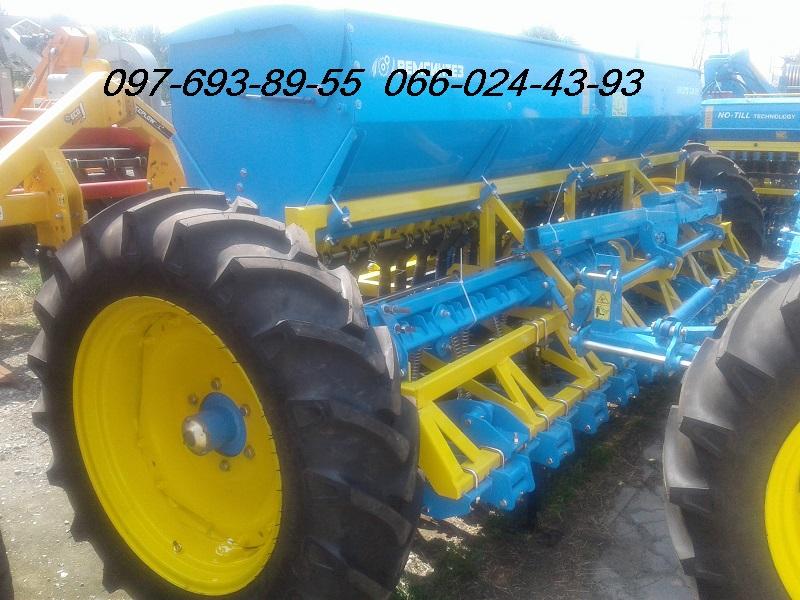

Grain seeder SRZ 3.6 (with extended box), Dnipropetrovsk region.

Grain planter SRZ 3.6 (with enlarged box)

Main advantages:
Reinforced frame
New model gearbox (18 gears)
Reinforced independent leash on metal-ceramic bushings
Anti-corrosion coating (galvanic) of individual units
Hydrogenated marker system
An enlarged bunker in 1.5 times.
Increased width of support and drive wheels
Hub bearing-drive wheel steel, stamped welded
The thickness of the strap of the leash is 10 mm.
Intermediate shaft on bearings
The bar is made of a rod (15 mm)(//tractor-service.com)
Spring wrapper
Powder coating
Coulter discs - Bellota (Spain) dimensions 4300x3700x1650
Transport dimensions 4300x3700x1650
Mass 1380 kg
Working speed 12 km/h
Transport speed 20 km/h
The width of the capture is 3.6 m.
The width of the row is 150 mm.
The seed embedment depth is 40 to 80 mm.
Fertilized sowing rate is 25 to 200 kg/ha.
The minimum turning radius is 6 m.
The number of coulters is 24 pcs.
The type of coulter is two-disc
Traction class 1.4 kH
