Zubo - spring harrow ZPB - 14/ Spring coupling, Dnipropetrovsk region.

Buy spring harrow Dnipro, priceZpb-14. Roasting tooth-spring harrow. Zpb -14.

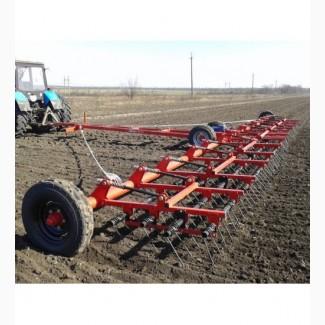

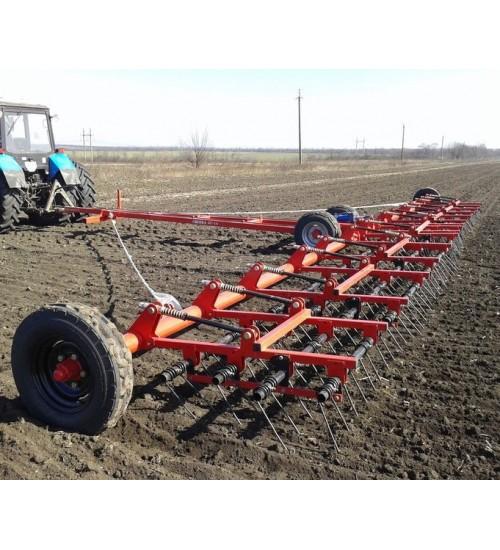

Spring coupling ZPB-14 is hydraulic, with an adjustable angle of attack. ZPB 14 is intended for loosening the upper layer of the soil, leveling the field surface.
It can be used both for plowing and for sowing various crops. On crops, its function is the destruction of the surface of the soil crust, the destruction of weeds in the initial stage.
Thanks to the adjustment of the hinged frames, it is possible to change the angle of attack and the depth of soil cultivation, as well as the ratio of the hinged frames to the soil, regardless of the position of the frame due to the large adjustment range on the mounting brackets.
Characteristics of Zpb 14:
Productivity, ha/hour — 9
Working speed, km/h — 9
Transport speed, km/h — up to 20
Working width of capture, m — 14
Processing depth, cm:
— minimum — 2(//tractor-service.com)
— maximum — 12

The number of sections of tooth-spring harrows, pcs — 7
The total number of toothed springs, pcs — 136

Dimensions, m:
— in working position (l/w/h) — 8.1x14x0.8
— in transport position (l/w/h) — 7.65x4.5x1.68

Unit weight, kg — 1550
Tractor power, not less, hp — that's 80
Type — trailed
