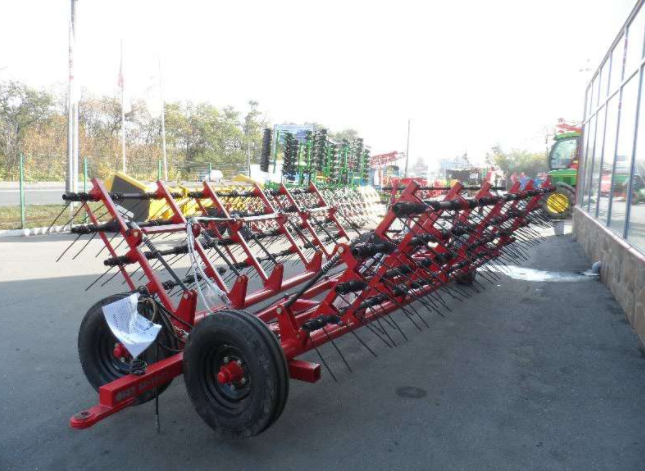

Spring harrow ZPB - 14 / Zubo - spring harrow ZPB - 14 Novaya, Kherson region.

Spring harrowZPB harrow - 14 \ Zubo - spring harrow ZPB - 14 New ZPB-14 hydraulic spring hitch, with adjustable attack angle. Delivery. Warranty. Service

Characteristics: The hitch is intended for the assembly of tractor aggregates for surface tillage. Mobility of harrow transportation. The main type of operation is harrowing. The main components of the hitch are: four support wheels 135колеса, центральная штанга,две поворотных штанги, гидросистема в составе гидро рукавов и гидроцилиндра,две тросовые растяжки. Бороны крепятся на сцепке посредством тяг и цепей. Сцепка проста вобслуживание, обслуживается одним человеком.
Model
ZPB-14
Type
Trailed
Productivity ha/hour
9

Working speed, no more than km/h
9

Transport speed, no more than km/h
20

Working width of capture, m
14

Processing depth, cm:
4-12(//tractor-service.com)
- minimal
2
- maximum
12

Number of sections of tooth-spring harrows, pcs.
7

The total number of toothed springs, pcs
105

Overall dimensions, m:
- in working position (L/W/H)
8.1x14x0.8
- in transport position
7.65x4.5x1.68

Mass of the unit, kg
1550

Power of the tractor, not less, hp.
от 80
