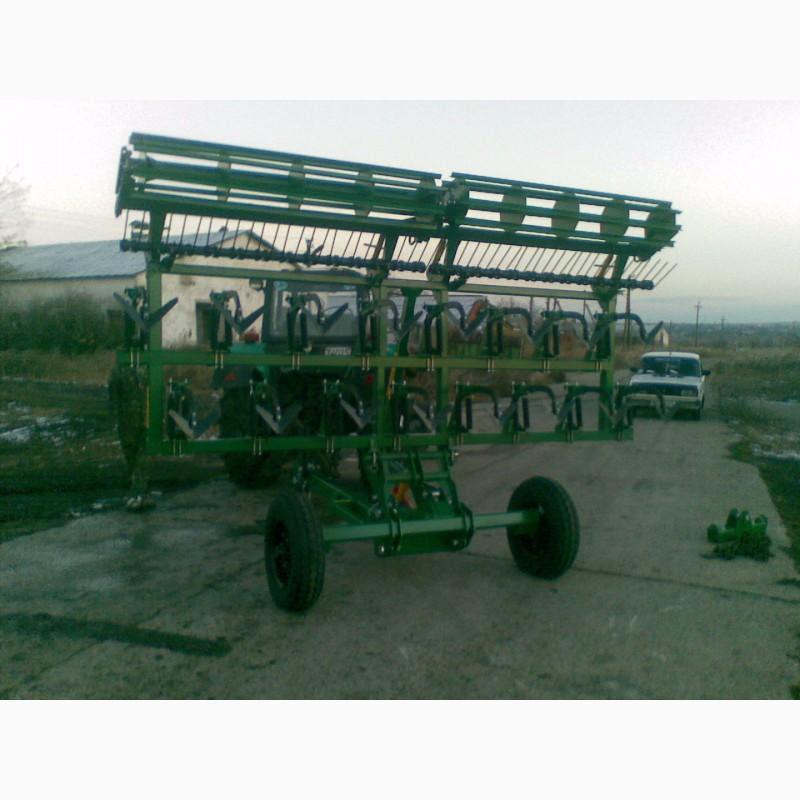

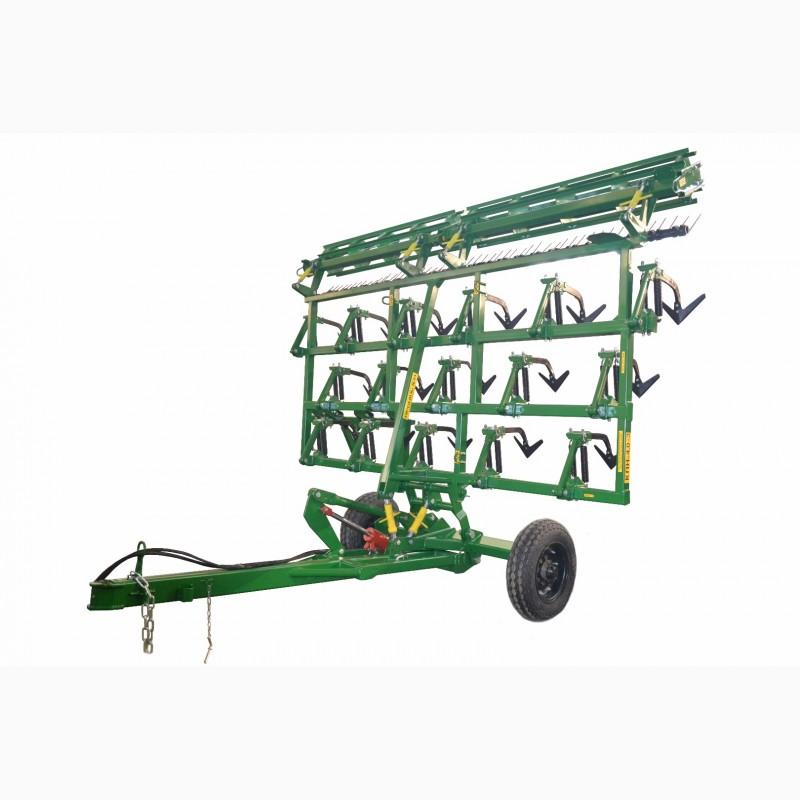

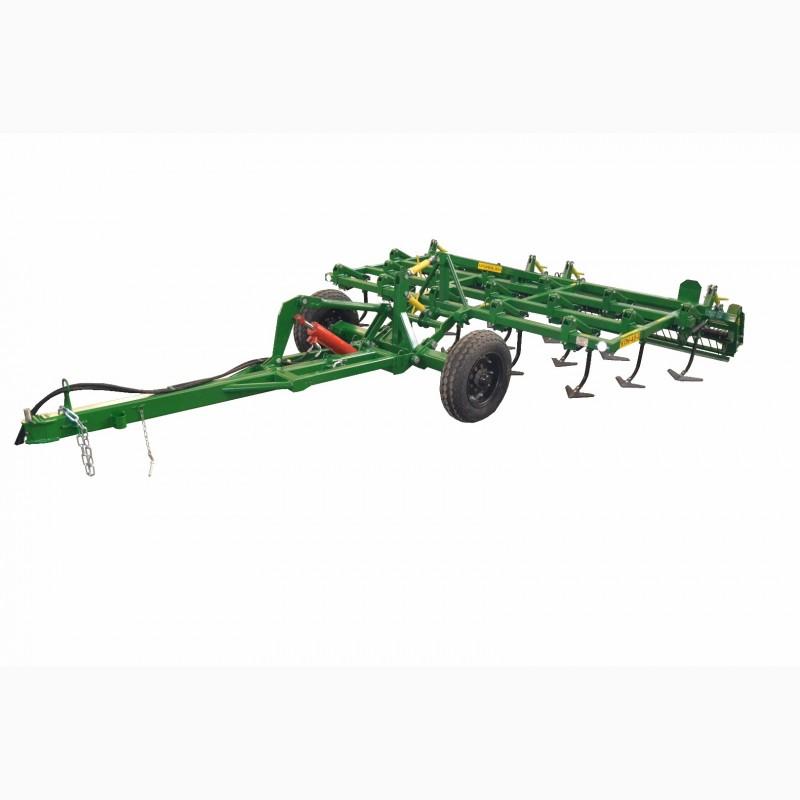

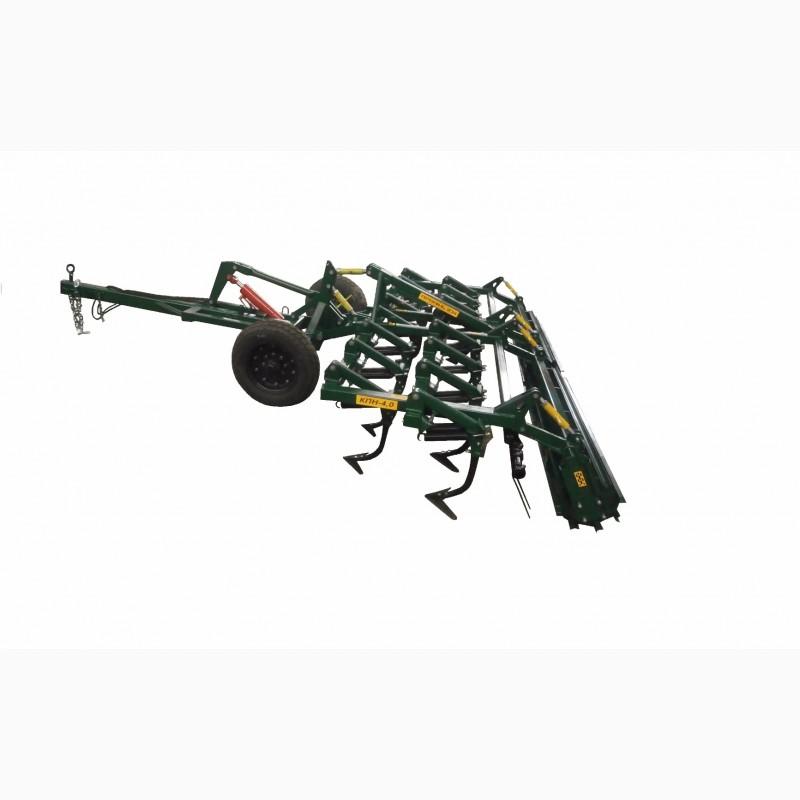

Cultivator KPN-4.03P trailed three-row, Kiev region.

KPN-4.03P. Width of grip, m 4.0 Productivity, ha/h 3.8...4.6 Depth of cultivation, cm 5.0...12.0 Working speed, km/h 8.0...15.0 Transport width, m 4.05 Weight, kg 780 The cultivator is intended for continuous pre-sowing soil cultivation, to a depth of 5-12 cm.
with simultaneous trimming of the root system of weeds, shredding, leveling and
by rolling the surface of the soil, as well as for taking care of steam.
The cultivator has a number of constructive advantages over analogues, and
namely:
1. The frame mounting bracketroller is attached to the transverse beams of the main frame, which
reduced the load on the rear beam of the main frame of the unit.
2. The construction of the unit has an asymmetric design that allows you to combine two
cultivator with the help of a hitch.(//tractor-service.com)
3. Double-row bearings are used in the design of the roller in the support, which facilitates them.
service and provides 5 times more!!! resource compared to bearing 31-UCF-208.
4. Polymer bushings with graphite lubrication are used in the hinge unitcultivator racks,
which has a lifetime warranty and does not require maintenance compared to analogues where
metal bushings and Litol grease are used.
5. For aggregation with atractor two are provided for connecting the central traction
holes that provide aggregate with tractors of all firms without modification of the aggregate.
6. On the rake, springs are used with a curl "in the direction of the unit", which excludes
spring break during operation
