Seyalka Universalnaya 5.4 (СЗ-5.4), Kirovohrad region.

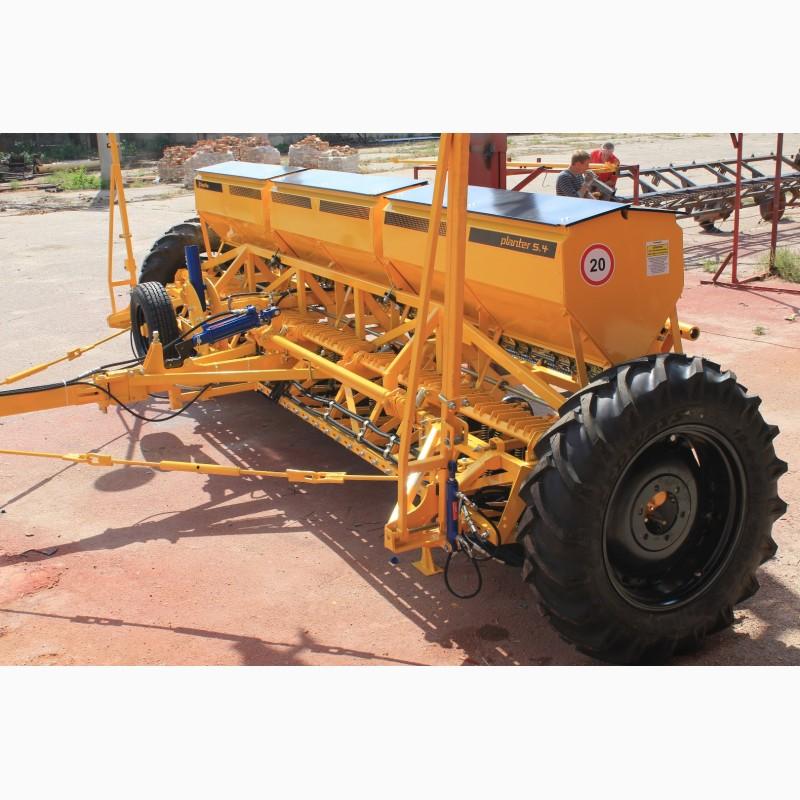

Universal 5.4 planter (СЗ-5.4) - grain planter designed for row sowingseeds of grains (wheat, rye, barley, oats), leguminous crops (peas, beans, soybeans, lentils, beans, chickpeas, chickpeas, lupins), small-seeded crops (alfalfa, rapeseed, millet, clover) with simultaneous application of mineral fertilizers.

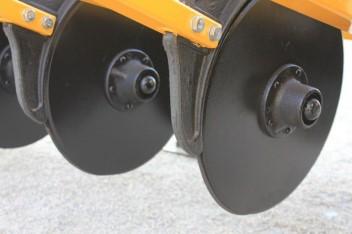

The coulter ensures the cutting of the harvest residues and the deepening of the disks to the specified depth, which significantly improves the uniformity of the seedlings.

The universal 5.4 seeder (SZ-5.4) is equipped with tubular structure coulter guides, which ensure pairwise positioning of the coulters in longitudinal and horizontal position.

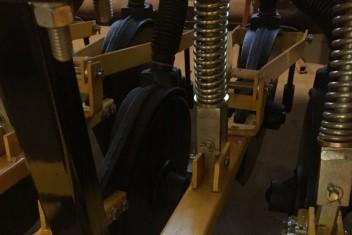

The spreader bars are made of rolled metal of a round (harder) section with hinged joints for regulating pressure on the ground and hinged joints, providing them.

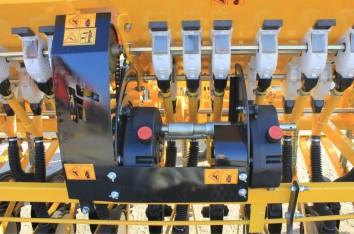

In addition, the planters are equipped with a seed sowing control system, which automates the process of operating the unit as much as possible.
Main technical characteristics

Characteristics of EDN. MeasurementsPlanter 5.4 M Planter 5.4-01 M Planter 5.4-02 M
Working speed of movement on main operations km / h 12 12 12(//tractor-service.com)
Gripping width m 5.4 5.4 5.4
The width of the row cm 15 7.5 15
Sowing rate Kg/ha
For seeds 15-400 15-400 15-400
For fertilized 25-200 25-200 25-200
For small-seeded crops 0.50-50 0.50-50 0.50-50
The depth of planting seeds and fertilized mm 40-80 40-80 40-80
Mass kg 2554 2554 2554
Overall dimensions mm 4300*9400*1680 4300*9400*1680 4300*9400*1680

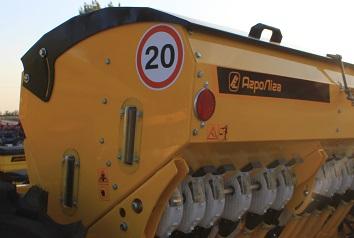

Hopper capacity, (total) Dm3 1500 1500 1500
For seeds 1000 1000 1000
For fat 500 500 500
