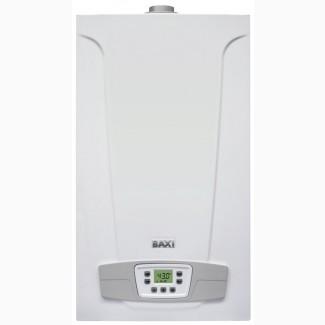

Gas boiler Baxi Eco Compact 14 Fi, Zhytomyr region.

The fifth generation of wall-mounted gas boilers in the Eco Compact line is a modern solution at an affordable price for every family. Among the advantages of this category are small dimensions, a new electronic board, traction control with power adaptation. A stylish design and a light panel with a control panel will ensure order in the room and ease of adjustment.
Technical characteristics:
Max. useful thermal power, kW 14
Min. useful thermal power, kW 9.3
Max. consumed thermal power, kW 15.4
Min. consumed thermal power, kW 10.6
Max. productivity, % 90.8
Productivity at 30% power, % 90.2
Capacity/pressure in the expansion tank, l/bar 8/0.5
Max.capacity of the circuit heating, l 100
Max. pressure in the heating circuit, bar 3
Temperature range of the heating circuit, °С 30/85(//tractor-service.com)
DHW circuit temperature range, °С 35/60
DHW productivity ΔT 25°C, l/min 10.3
Min. consumption in the DHW circuit, l/min 2.0
Max. pressure in the DHW circuit, bar 8
Chimney diameter, mm 60/110 (800 mm)
Max. length of coaxial chimney Ø 60/100, m 5
Max. length of separate chimney Ø 80, m 30
Nominal input pressure of natural gas, m/bar 13-20
Electric power/voltage, W/V 110/230
Max. flue gas temperature, °С 102
Dimensions (H x W x D), mm 700x400x298
Weight, kg 29
Baxi gas boilers are high-quality Italian heating boilers. Specialists of our company will help with the selection of equipment, and installers will quickly and efficiently install the system.
