Zhatkavalkovaya vesnaya ZhVN-6 s, Transcarpathian region.

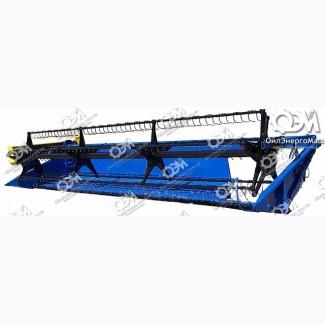

Zhatkavalkovaya mountedZhVN-6 with PPN (planar knife drive) Schumacher type
It is intended for mowing and stacking the stalks of grain crops in windrows with a separate method of harvesting. It can be used as a skimmer. It is hung on Niva, Enisei, Enisei-1200, Sibiryak combines. The presence of a platform expanding towards the discharge window, a springless reel with high-strength rakes, guarantees high reliability of the technological process and the quality of the roll formation.
Additional photos of production on the website oylenergomash.com.ua
The harvester provides:
— stacking of a swath of good quality and optimal power;
— high productivity for mowing and harvesting;
— easing the working conditions of the mechanic
Technical characteristics
Name Meaning Ed. change.
The width of the capture is 6 m.
Working speed up to 12 km/h
Transport speed 18 km/h
Productivity 4.8 ha/h
The height of the cut is 70...200 mm.
Platform width 1070...1250 mm
The width of the ejection window is 1010...1250 mm.
The number of double strokes of the knife is 453.6 dv.h/min.
Reel speed 24...64 rpm.(//tractor-service.com)
Mass 1065 kg
Schumacher-type MPN drive type

Equipment:
The winder is five-bladed, single-excentric, anti-winding with metal rollers that ensure the durability of the blade tilting mechanism.
The drive of the reel is a chain, with the use of a safety clutch, which ensures uninterrupted operation of the unit at medium and high grain yields. The service life of the variator is increased due to the use of a new design of the shaft and rolling bearings.
The reducer is conical, small-sized, unlike cross-belt gears, which increase the number of lubrication points and complicate the maintenance of kinematic gears, ensures reliable operation of the harvester's working bodies.
The platform is a metal structure made of a high-quality profile, the width of which allows placing six conveyor belts, which excludes the loss of ears behind the harvester when harvesting tall crops. Improved maintainability of the conveyor shaft due to its connection with the gearbox through a chain clutch.
The wind shield is metal, made of a high-quality profile, which allows to increase the rigidity of the harvester structure.
The knife beam is a 60x40x4 profiled solid pipe and a solid 50*50*5 angle, ensuring the straightness of the front bar in the horizontal and vertical planes.
The knife clamp is adjustable, allowing you to easily and with high accuracy maintain the gap between the segment and the counter-cutting plate, which is necessary for a high-quality cut of crops.
The hydraulic system is high-pressure hoses, the use of which allows you to increase the reliability and service life of hydraulics, as well as simplify the maintenance of highways.

It works in the unit: with combines "Niva", "Enisei" (manufactured after 2003), "Sibiryak".
ЖВН-6В-01, ЖВН-6В-04 — modifications of ЖВН-6В "Ferz" fully prepared for work with self-propelled mower chassis. Harvesters are aggregated with combine harvesters "Niva-Effect", "Enisei-1200", "Enisei-950/954", manufactured after 2003 with the help of the ZhVN-6V-15.000 inclined body.шасси косилок плющюлок КПС-5Г, Е-301, Е-302, Е-303, E-304.
Жатки агрегатируются с комбайнами «Нива-Эффект», «Енисей-1200»,«Енисей-950/954», изготовленными после 2003 года при помощи наклонного корпуса ЖВН-6В-15.000
The product is certified
