Repair of hydrostatics Case 2388, Case 5088, Case 8010, Kyiv region.

Hydravlyk Line Company on Case 2388, Case 5088, Case 8010,CASE 2188, Case CF80. Majorrepair of hydraulic pumps and hydromotors on Case (Case).
Repair of hydrostatic drive systemsCASE grain harvesters
Throughout its history, our company has been engaged in the repair of hydrostatic drive systems of CASE grain harvesters. The hydrostatic drive system transmits the torque from the engine to the mechanical transmission (gearbox) of the combine, in addition, providing stepless change in rotation frequency. Such a transmission, as a rule, consists of such main parts as a hydraulic pump, a hydraulic motor, a tank with a working fluid, a system of filters, hoses (hoses) of high and low pressure, a deceleration valve and a control mechanism. Most of the grain harvesters of many world manufacturers have similar hydrostatic transmissions. As a rule, the hydrostatic pump and the hydrostatic motor are the most prone to failure.

Below are photos of such units:

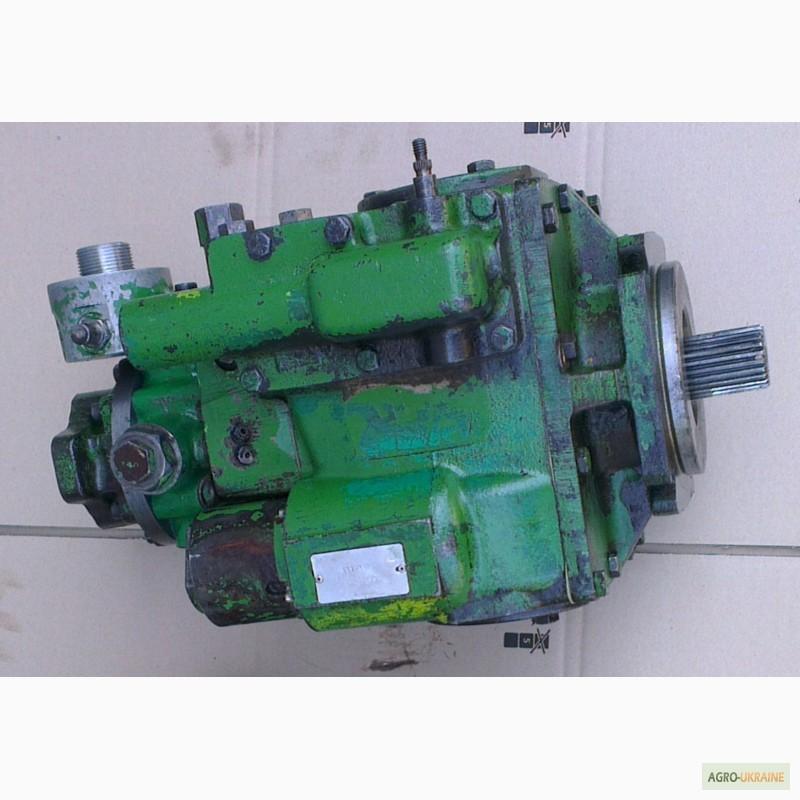

Hydrostatic pump 400478A1 of the CASE 2388 harvester
Hydrostatic pump 400478A1 of the CASE 2388 combine

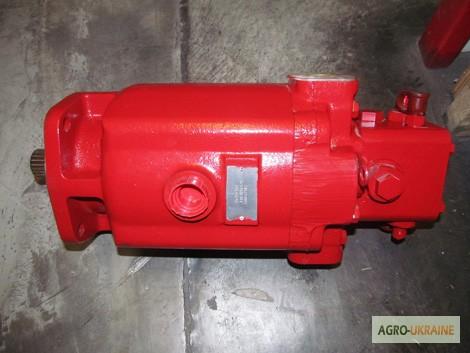

Hydraulic motor 400475A2 of the CASE combine 2388
Hydraulic motor 400475A2 of the CASE 2388 combine.

In addition to the operations described in the service manual and known to most mechanics and engineers, we have, in my opinion, a rather unique opportunity to check units on the stand both before and after repair. As a rule, such an approach allows you to identify not only the main problem (the reason for the repair), but also related problems that, in the near future, may develop into the failure of the entire node. Also, these procedures make it possible to carry out high-quality and complete repairs and allow talking about a guarantee for the completed repair.

In repairs of hydrostatic units, as well as their drives, we give preference to original spare parts, however, such spare parts are not always available to order. Often, the manufacturer does not provide the possibility of supplying individual spare parts, but offers to purchase the assembly as a whole.

Understanding the client's situation in our difficult time, we came to the conclusion that it is necessary to produce such spare parts, as well as particularly expensive parts of these units at domestic enterprises. We, together with the design and technological staff of the factories, carried out extensive work on research, coordination of the design and technology, as well as testing of such spare parts. As a result of these works, we can say that some samples not only closely approached, but also surpassed the original in terms of quality and durability.

Below we provide several photos of such spare parts as an example:
Drive clutch of the GST pump of CASE 1666-2166-2388 combine harvesters
Drive clutch of the GST pump of CASE 1666-2166-2388 combines.
Analog 196482C3.
The length of the splined part, which is increased in relation to the original, gives a significant increase in the resource of this coupling and the shaft, which mates with it along the splines.
Drive clutch of the HST pump of CASE 5088 combine harvesters
Drive clutch of the HST pump of CASE 5088 combines.
Analog 84136696.
Also extended in relation to the original.
Attached bottom of the pump and the GST motor
Attached bottom of the pump and the GST motor.
The manufacturer does not deliver separately.
The detail is part of sets 1346254C1 (pump) 1980138C1 (hydraulic motor) from the CNH catalog.(//tractor-service.com)
GST pump and motor distributor
GST pump and motor distributor.
Analogue of parts 1346255C1 (pump) and 1980139C1 (motor)
Hydraulic pump shaft CASE 1666- 2166-2188
Case hydraulic pump shaft 1666-2166-2188.
Analogue of part 1980169C1.
Case hydraulic pump shaft 2366-2388-5088
Hydraulic pump shaft CASE 2366-2388-5088.
Analogue of part 403149A1.
Plunger of the rocking group
Plunger of the rocking group. CNH is not delivered separately.
Part of the set 1346254C1 (pump) 1980138C1 (hydraulic motor) according to the CNH catalog.
Block of cylinders
Block of cylinders. CNH is not delivered separately.
Part of the set 1346254C1 (pump) 1980138C1 (hydraulic motor) according to the CNH catalog.

In any case, when non-original parts (substitutes) are used in the repair process, the client receives information about this in the first place and, in fact, the choice is his. It is important to note that the use of proven spare parts of domestic production as substitutes for repairs dramatically reduces repair costs, and sometimes makes repairs possible if original spare parts of certain names are not supplied. In the latter case, the CNH spare parts catalog lists the abbreviation NSS (Not supplied separately) instead of the number.

In addition to the production of spare parts, one of the enterprises with which we cooperate developed and tested samples of complete products: a hydrostatic pump and a hydrostatic motor. After bench tests, they also passed field tests in 2013-2014. All aggregates have 100% adaptation to CASE combines and do not require any modifications when installing instead of standard ones. All such units are covered by a warranty.

Below are photos of such nodes:

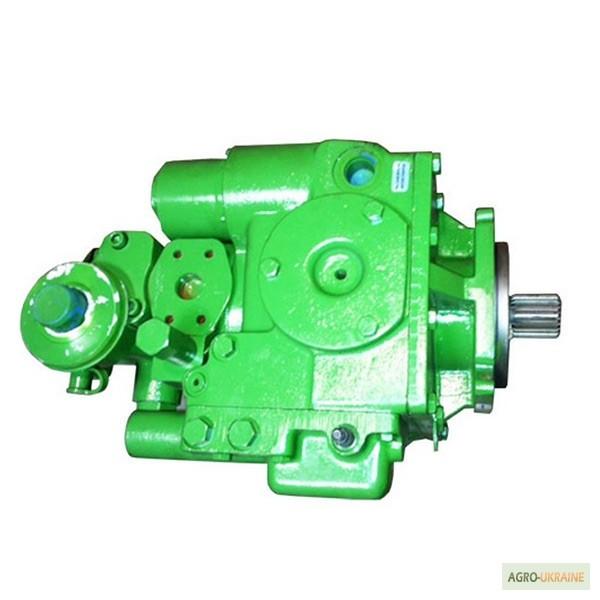

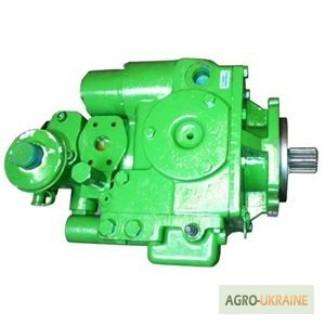

Hydrostatic combine harvester pump 2388-5088
Combine harvester hydrostatic pump 2388-5088.
Analogue of node 400478A1.
Hydrostatic combine harvester motor 2388-5088. Analogue of node 400475A1
Hydrostatic combine harvester motor 2388-5088.
Analogue of node 400475A1.

A fairly large amount of equipment of the 1980s-2010s of production, which has a significant development, enters the Hydraulic Line. These solutions are designed for such a technique. In the current conditions, the purchase of new original units when it is impossible to repair standard ones can make the repair of such equipment economically feasible.
