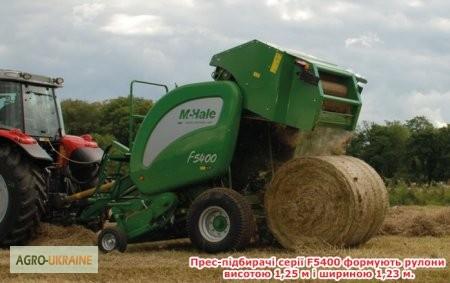

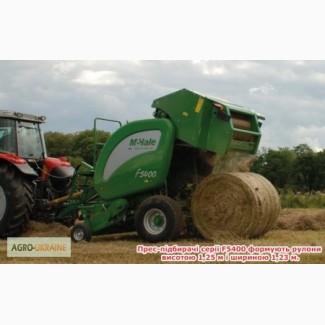

Tyukopress McHale F5400 bale press picker Ireland, Sumy region.

The McHale F5400 model is a baler without a cutting unit (the machine is not equipped with knives).
The central lubrication units of the baler are controlled using the Wizard control panel, which sends a signal to the tractor driver about the oil level.
A high flow of material into the pressing chamber is ensured by a star-shaped rotor.
The equipment for wrapping with a net and the density of the roll are regulated on the baler.
McHale F5400 is equipped with high-strength drive parts (chains and sprockets), which ensure a long service life and minimal downtime.

Technical characteristics:
The dimensions and weight of the machine
• Length 4.05 m
• Width 2.55 / 2.58 m
• Height 2.45 m
• The weight of the machine is 3260 kg.

Picker
• Gripping width 2000 mm
• Rods with 5 fingers
• Interval between fingers 70 mm(//tractor-service.com)

Pressing chamber
• Diameter 1.25 m
• Width 1.23 m
• Feeding with the help of a star-shaped feeding rotor.
• Pressing chamber bearings 50 mm

Strapping with mesh
• Manual or automatic control
• Stock of rolls with a net 1 + 1 spare
• Adjustment of the grid manually on the machine

Second
• Axles 8 pins
•Tires standard 380 / 55-17
• Headlights for road traffic
• Fuel supply systempump, working from the gearbox
• Necessarytractor power 80 HP
