Rake Voroshilka Solnyshko. 4-wheel turners. 2, 6 m, Nikolaevskaya oblast.

All attached equipment for walk-behind tractors and tractors is available!

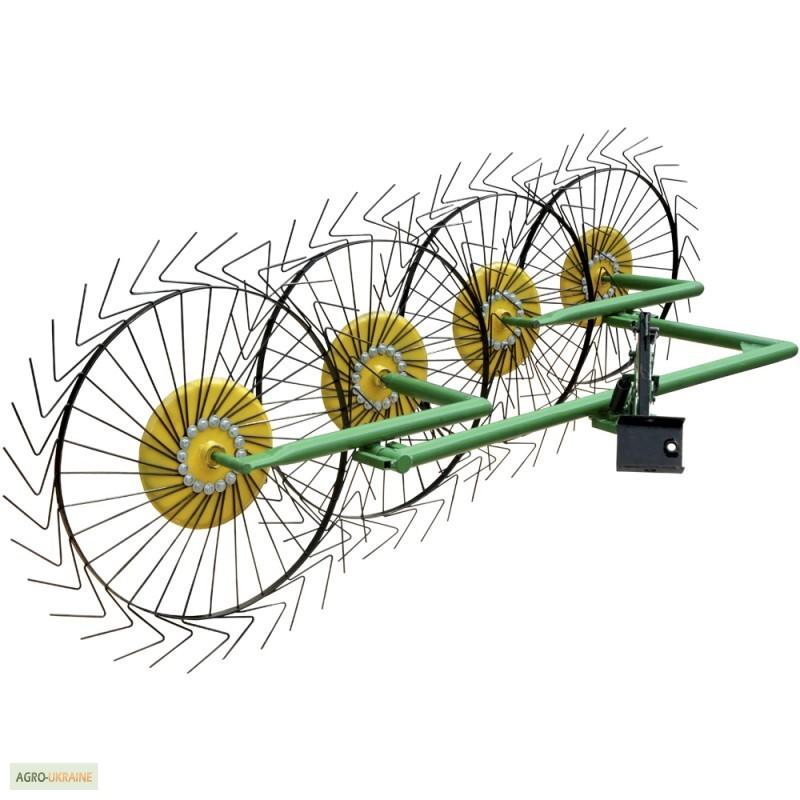

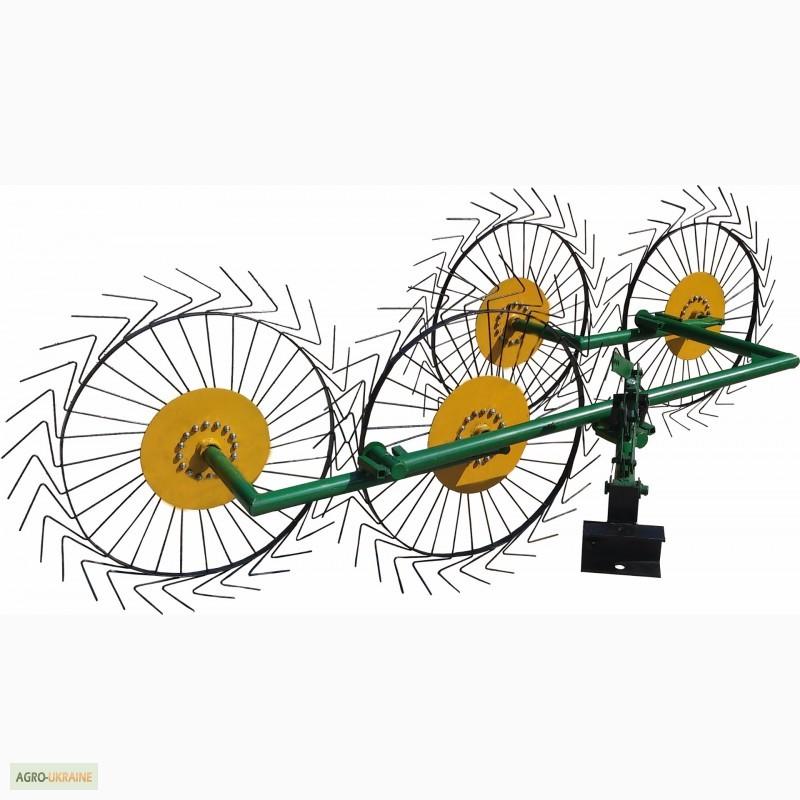

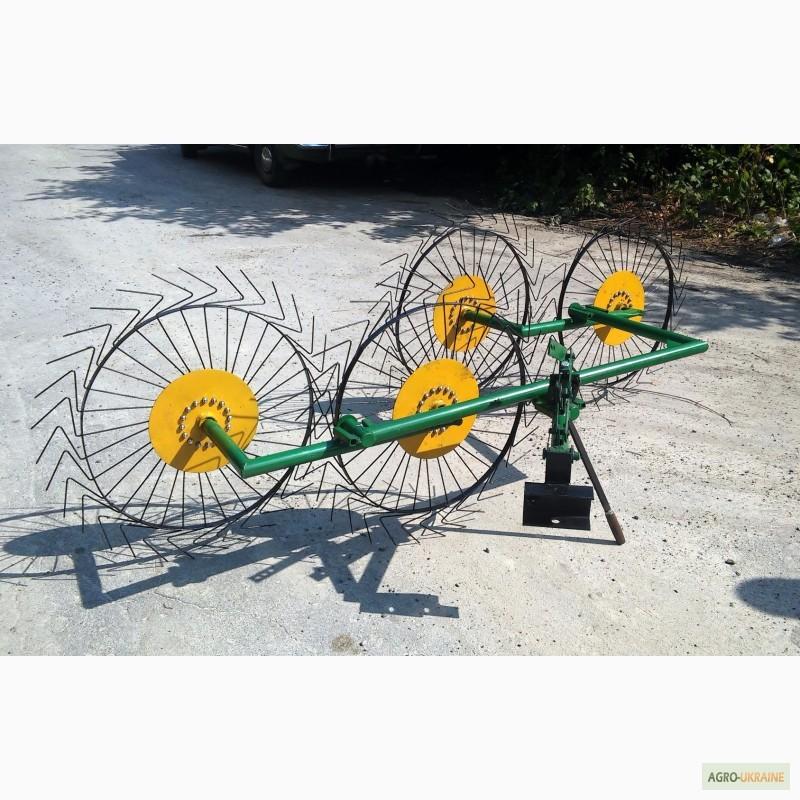

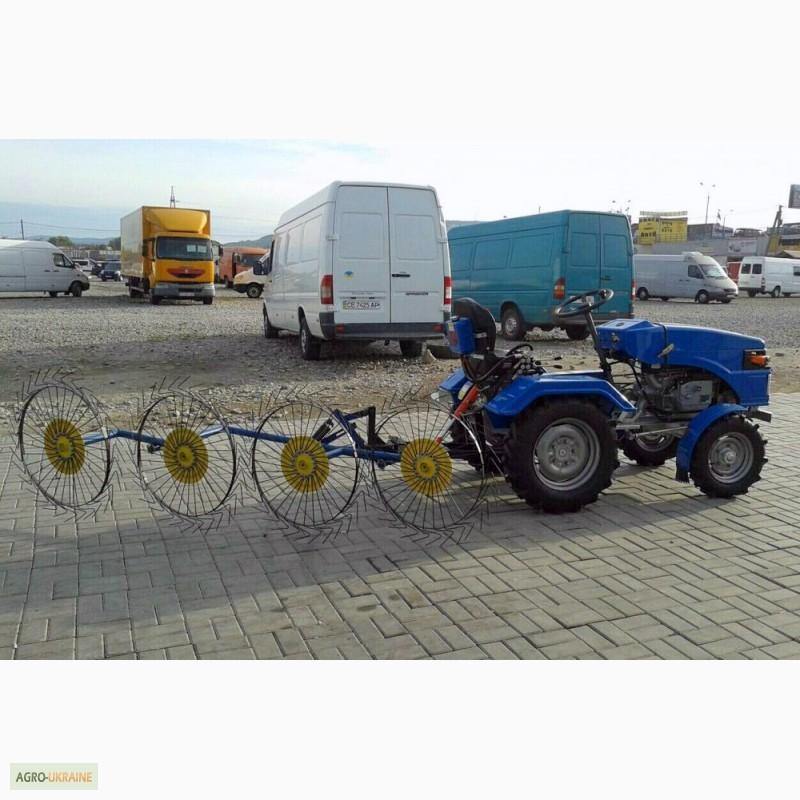

"Solnyshko" GVR-4 rake-threshers are aggregated on walk-behind tractors, minitractors based on walk-behind tractors and tractors and are intended for turning (turning) hay, as well as raking hay into a bale. The use of these rake-threshers will significantly increase the efficiency of hay harvesting work, and will also allow the drying of cut grass to be accelerated and prevent it from rotting.

Wheels are mounted on hinged and movable frames. This design of the frameallows the discs to repeat the soil and efficiently rake hay. Fixing discs to the frame on bearings.

The rods are made of high-carbon steel, which gives the rods high strength and springiness. Replaceable rods, fastened with bolts.

The width of the harrowing is 2.5 m, the width of the rake is 2.6 m.

You can buy the "Solnyshko" GVR-4 rake-thrower inexpensively by calling the contact numbers or placing an order on the website http://sad-ok.com. Delivery of GVR-4 rakes is carried out to any settlement in Ukraine.
(//tractor-service.com)
http://sad-ok.com/navesnoe-oborudovanie/sonechko-gvr4

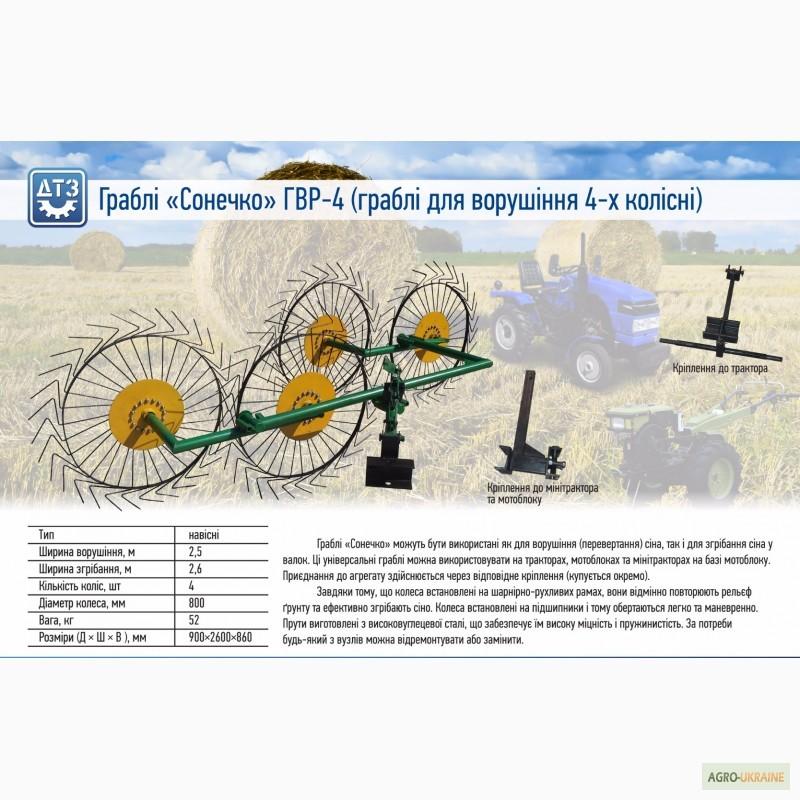

Technical characteristics:
Harrowing width: 2.5 m
Raking width: 2.6 m
The diameter of the rake wire: 4 mm.
Diameterwheels: 800 mm
Dimensions (l/w/h): 900/2600/860 mm
Number of wheels: 4
Weight: 52 kg

There is also a lot of other equipment, cultivators, walk-behind tractors, attachments, adapters, sprayers, etc.
