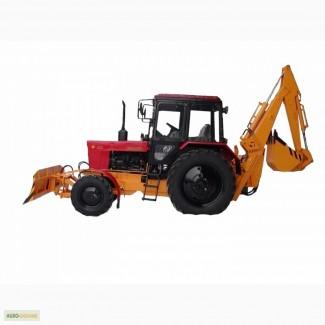

Excavator Boreks 2203 with rotary bucket, Donetsk region.

For sale Excavator Boreks-2203, technical characteristics:

Basic tractor MTZ-80.1/82.1
Engine
Model D 243
Water-cooled diesel type
Working volume, l 4.75
Engine power, kW (hp) 56.6 (77)
Specific fuel consumption, g/kWh 235
Rotational frequency, rpm 2200
Overall dimensions in transport position (L*W*H), mm 7200*2320*3800
Transmission
Speeds 9 forward, 2 back.
Maximum speed, km/h 33
Dry disc brakes
Bridge four-wheel drive
Front axle of the arched type, beam type
Hydraulic system(//tractor-service.com)
Gear pumpspumps NSh-100, NSh-50, NSh-10
Pressure in the system, mPa 18
Rotational frequencypump, rpm 1000
Fuel tank, l 127
Operating mass, kg 6000
Reverse shovel
The maximum digging depth, m 4.3
Unloading height, m 3.6
Excavation radius, m 5.5
Turning radius, degrees 180
Cutting force on the edge of the bucket kgs 3910
The duration of the working cycle, s 15
Bucket volume, cubic meters 0.28
Carrying capacity, kg 800
Rotary blade
Gripping width, m 2.5
Cutting depth, m 0.1
Angle of rotation, degree 30
At the request of the customer, the excavator can be equipped with interchangeable working equipment: telescopic handle, rigid grapple, grapple forks, hydraulic hammer (with spade, wedge, tamping plate), narrow bucket, profile bucket, loosener tooth, uprooting gripper, drilling equipment (drill diameter 150 mm, 250 mm, 360 mm, 450 mm), equipment svarochnoe.
