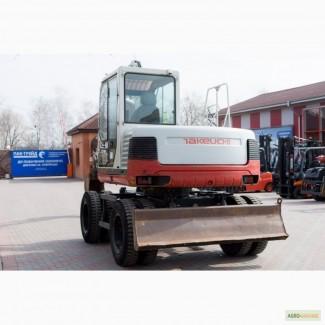

Excavator wheeled Takeuchi TB175W, Zhytomyr region.

Excavator Wheeled Takeuchi TB175W
(1124)
Year of release - 2007
with working hours of 2936 m/h.
Mass 8130 kg,
overall dimensions: length 6260 mm, width 2330 mm, height 2925 mm,
turning radius 1720mm, min. ground clearance 335 mm.
Equipped with a 49.3 kW diesel engine.
Operating range: max. digging depth 4085mm,
max. vertical digging depth 3600 mm, max.
blade height 6355mm, max.(//tractor-service.com)
digging radius 7650mm, max.
digging radius on the surface 7430mm, min.
turning radius 1955mm,
max. bucket deviation (right/left) 730/690,
speed of movement 0~20km/h,
max. overcame lift 0/35%,
max. dig method bucket, 52.7 kN,
max. dig method arrows, 36.0kN,
pressure on the ground is 34.7 kPa.
Rubber 8.25-20.
It was not exploited on the territory of Ukraine
