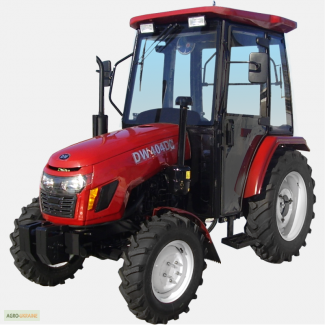

Mini-tractor DW 404DC with cabin Warranty and service from DTZ plant, Dnipropetrovsk region.

Dnipro DTZ tractor plant

Factory warranty and service!

A complete package of documents from the factory!

Home delivery throughout Ukraine! Pickup!

Payment upon receipt - WITHOUT prepayment!

Mini-tractors DONGFENG, DTZ, DW, XINGTAI, JINMA, at our plant in Dnipro andwarehouses in other cities with DELIVERY ALL OVER UKRAINE!

Construction features of DW 404DC:

Contemporary design.
4-cylinder engine.
Reinforced gearbox 8+2.
One-disc clutch.
Power steering with separate tank and hydraulic pump.
Power take-off shaft 2-speed 540/1000 rpm.
High clearance.
Mass switch.
Convenient location of control systems.
A spacious place for the operator.
The muffler and muffler knee are covered with a protective cover along the entire length.
Adjustable front and rear tracks.
Rear axle differential lock.
Headlights with lens optics.
Wide pedals with a long stroke.
Parking brake.

Complete set:

Cabin with heating and 360° view.
An adjustable seat with a hard headrest.
Electronic instrument panel - hour meter, fuel level indicator, tachometer, water temperature indicator, battery charging indicator, etc.
Rear-view mirrors.
Electric outlet for a trailer.
Coupling device for a trailer.
Additional hydraulic distributor for 1 input / output, equipped with quick-release couplings.
Additional lights – 2 front and 2 rear.
Front hinged cargo.
Loads of rearwheels.
Wings of the front wheels.

Characteristics of DW 404DC with cab(//tractor-service.com)

Tractor power, hp (kW) 40 (29.3)
Wheel formula 4x4
Engine brand 4L22BT
Engine type vertical, 4-cylinder 4-stroke diesel with forced liquid cooling and direct injection
Engine start electric starter
Engine volume, cm3 2543
Cylinder diameter/piston stroke 90 x 1000
Nominal fuel consumption, g/kW*h ≤242
The type of fuel pump is plunger, row.
Nominal revolutions of the crankshaft of the engine, rpm 2350
The type of engine oil is mineral or semi-synthetic for diesel engines.
Gearbox (PPC) (4+1)x2
The type of oil in the gearbox, rear axle transmission
The type of oil in the front axle is transmission.
Rear differential lock +
Dry, single-disc clutch
Power steering with a separate pump and oil tank
Cooling system fan drive V-belt transmission
Drum-type brake mechanism
Rotational frequency of the power take-off shaft (PTO), rpm 540 / 1000
The pump type of the hydraulic system is a gear pump
The maximum load capacity of the hinged mechanism, kg 550
Minimum clearance, mm 320
Wheel base, mm 1830
Wheel track, rear mm 1200 / 1340
front 1260 / 1460
Sizetires rear 11.20 - 24
front 7.50 - 16
Minimum turning radius, m with one-way brake 2.6
without brake 3.0
Theoretical speed of movement, km/h forward 0.39 - 31.97
back 0.51 - 12.76
Fuel tank volume, l 28.0
Engine crankcase volume, l 4.5
Volume of gearbox housing, rear axle and lift, l 18.0
The volume of the front axle crankcase, l 8.0
Engine cooling system volume, l 5.0
Overall dimensions (LxWxH), mm 3350x1600x2350
Curb weight, kg 1550

Our DTZ plant has been operating on the Ukrainian market for more than 15 years. Over these almost two decades, our company has won the trust of consumers and the respect of competitors thanks to comfortable price levels, short delivery times and high quality products that easily compete with imported counterparts. We are a reliable supplier of agricultural machinery, motorcycle machinery, garden and park machinery.

The products of our factory comply with the most modern industry standards and regulations, meet the requirements of rapidly developing technologies and have an attractive modern design.

For example, mini tractors under the brand DTZ, DONGFENG, JINMA, DW, XINGTAI can be found in almost every farm. Farmers from all regions of Ukraine could appreciate their quality and reliability.
